Datasheet 241 (Signal Transformer) - 2
| Hersteller | Signal Transformer |
| Beschreibung | Two-4-One Power Transformers. Split Bobbin Construction Providing Superior Isolation |
| Seiten / Seite | 3 / 2 — Part Number Selection. Part Number. Secondary RMS Rating. Single 115 V. … |
| Dateiformat / Größe | PDF / 1.0 Mb |
| Dokumentensprache | Englisch |
Part Number Selection. Part Number. Secondary RMS Rating. Single 115 V. Dual 115 / 230 V. RoHS
Modelllinie für dieses Datenblatt
- 241-3-10 241-3-12 241-3-120 241-3-16 241-3-20 241-3-24 241-3-28 241-3-36 241-3-48 241-3-56 241-4-10 241-4-12 241-4-120 241-4-16 241-4-20 241-4-24 241-4-28 241-4-36 241-4-48 241-4-56 241-5-10 241-5-12 241-5-120 241-5-16 241-5-20 241-5-24 241-5-28 241-5-36 241-5-48 241-5-56 241-6-10 241-6-12 241-6-120 241-6-16 241-6-20 241-6-24 241-6-28 241-6-36 241-6-48 241-6-56 241-7-10 241-7-12 241-7-120 241-7-16 241-7-20 241-7-24 241-7-28 241-7-36 241-7-48 241-7-56 241-8-10 241-8-12 241-8-120 241-8-16 241-8-20 241-8-24 241-8-28 241-8-36 241-8-48 241-8-56 DP-241-4-10 DP-241-4-12 DP-241-4-120 DP-241-4-16 DP-241-4-20 DP-241-4-24 DP-241-4-28 DP-241-4-36 DP-241-4-48 DP-241-4-56 DP-241-5-10 DP-241-5-12 DP-241-5-120 DP-241-5-16 DP-241-5-20 DP-241-5-24 DP-241-5-28 DP-241-5-36 DP-241-5-48 DP-241-5-56 DP-241-6-10 DP-241-6-12 DP-241-6-120 DP-241-6-16 DP-241-6-20 DP-241-6-24 DP-241-6-28 DP-241-6-36 DP-241-6-48 DP-241-6-56 DP-241-7-10 DP-241-7-12 DP-241-7-120 DP-241-7-16 DP-241-7-20 DP-241-7-24 DP-241-7-28 DP-241-7-36 DP-241-7-4 DP-241-7-56 DP-241-8-10 DP-241-8-12 DP-241-8-120 DP-241-8-16 DP-241-8-20 DP-241-8-24 DP-241-8-28 DP-241-8-36 DP-241-8-48 DP-241-8-56
Textversion des Dokuments
filename ../../../SIGNAL CATALOG/SIGNAL Product Catalog.pdf filename ../../../SIGNAL CATALOG/SIGNAL Product Catalog.pdf filename ../../../SIGNAL CATALOG/SIGNAL Product Catalog.pdf 241 Series Datasheet

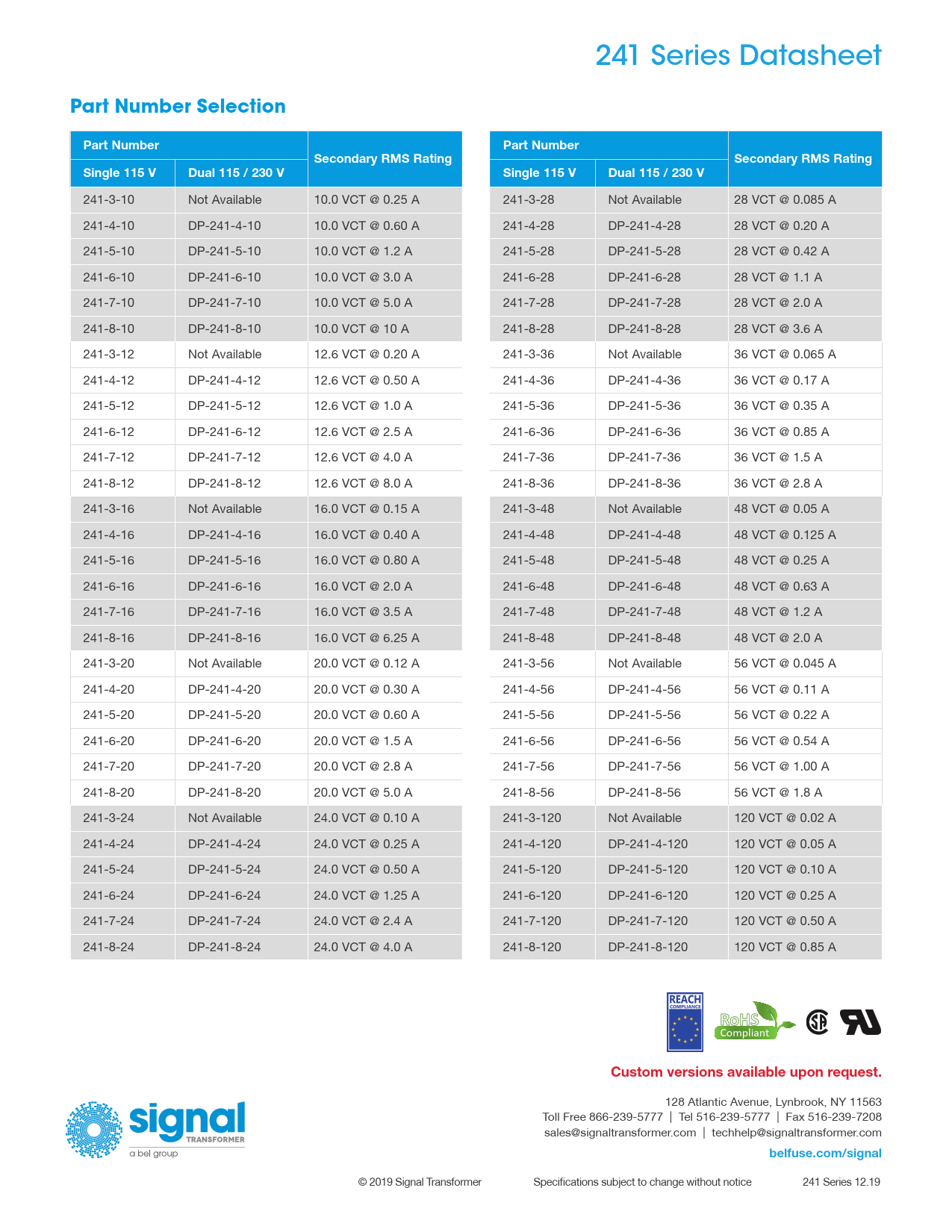

Part Number Selection Part Number Part Number Secondary RMS Rating Secondary RMS Rating Single 115 V Dual 115 / 230 V Single 115 V Dual 115 / 230 V
241-3-10 Not Available 10.0 VCT @ 0.25 A 241-3-28 Not Available 28 VCT @ 0.085 A 241-4-10 DP-241-4-10 10.0 VCT @ 0.60 A 241-4-28 DP-241-4-28 28 VCT @ 0.20 A 241-5-10 DP-241-5-10 10.0 VCT @ 1.2 A 241-5-28 DP-241-5-28 28 VCT @ 0.42 A 241-6-10 DP-241-6-10 10.0 VCT @ 3.0 A 241-6-28 DP-241-6-28 28 VCT @ 1.1 A 241-7-10 DP-241-7-10 10.0 VCT @ 5.0 A 241-7-28 DP-241-7-28 28 VCT @ 2.0 A 241-8-10 DP-241-8-10 10.0 VCT @ 10 A 241-8-28 DP-241-8-28 28 VCT @ 3.6 A 241-3-12 Not Available 12.6 VCT @ 0.20 A 241-3-36 Not Available 36 VCT @ 0.065 A 241-4-12 DP-241-4-12 12.6 VCT @ 0.50 A 241-4-36 DP-241-4-36 36 VCT @ 0.17 A 241-5-12 DP-241-5-12 12.6 VCT @ 1.0 A 241-5-36 DP-241-5-36 36 VCT @ 0.35 A 241-6-12 DP-241-6-12 12.6 VCT @ 2.5 A 241-6-36 DP-241-6-36 36 VCT @ 0.85 A 241-7-12 DP-241-7-12 12.6 VCT @ 4.0 A 241-7-36 DP-241-7-36 36 VCT @ 1.5 A 241-8-12 DP-241-8-12 12.6 VCT @ 8.0 A 241-8-36 DP-241-8-36 36 VCT @ 2.8 A 241-3-16 Not Available 16.0 VCT @ 0.15 A 241-3-48 Not Available 48 VCT @ 0.05 A 241-4-16 DP-241-4-16 16.0 VCT @ 0.40 A 241-4-48 DP-241-4-48 48 VCT @ 0.125 A 241-5-16 DP-241-5-16 16.0 VCT @ 0.80 A 241-5-48 DP-241-5-48 48 VCT @ 0.25 A 241-6-16 DP-241-6-16 16.0 VCT @ 2.0 A 241-6-48 DP-241-6-48 48 VCT @ 0.63 A 241-7-16 DP-241-7-16 16.0 VCT @ 3.5 A 241-7-48 DP-241-7-48 48 VCT @ 1.2 A 241-8-16 DP-241-8-16 16.0 VCT @ 6.25 A 241-8-48 DP-241-8-48 48 VCT @ 2.0 A 241-3-20 Not Available 20.0 VCT @ 0.12 A 241-3-56 Not Available 56 VCT @ 0.045 A 241-4-20 DP-241-4-20 20.0 VCT @ 0.30 A 241-4-56 DP-241-4-56 56 VCT @ 0.11 A 241-5-20 DP-241-5-20 20.0 VCT @ 0.60 A 241-5-56 DP-241-5-56 56 VCT @ 0.22 A 241-6-20 DP-241-6-20 20.0 VCT @ 1.5 A 241-6-56 DP-241-6-56 56 VCT @ 0.54 A 241-7-20 DP-241-7-20 20.0 VCT @ 2.8 A 241-7-56 DP-241-7-56 56 VCT @ 1.00 A 241-8-20 DP-241-8-20 20.0 VCT @ 5.0 A 241-8-56 DP-241-8-56 56 VCT @ 1.8 A 241-3-24 Not Available 24.0 VCT @ 0.10 A 241-3-120 Not Available 120 VCT @ 0.02 A 241-4-24 DP-241-4-24 24.0 VCT @ 0.25 A 241-4-120 DP-241-4-120 120 VCT @ 0.05 A 241-5-24 DP-241-5-24 24.0 VCT @ 0.50 A 241-5-120 DP-241-5-120 120 VCT @ 0.10 A 241-6-24 DP-241-6-24 24.0 VCT @ 1.25 A 241-6-120 DP-241-6-120 120 VCT @ 0.25 A 241-7-24 DP-241-7-24 24.0 VCT @ 2.4 A 241-7-120 DP-241-7-120 120 VCT @ 0.50 A 241-8-24 DP-241-8-24 24.0 VCT @ 4.0 A 241-8-120 DP-241-8-120 120 VCT @ 0.85 A
RoHS
Compliant
Custom versions available upon request.
