Datasheet TMC7300 (TRINAMIC) - 2
| Hersteller | TRINAMIC |
| Beschreibung | POWER DRIVER FOR DC MOTORS. Low Voltage Driver for One or Two DC Motors up to 2A (2.4A) peak – UART based Control for Torque and Velocity. 4 Half Bridge Peripheral Driver Option |
| Seiten / Seite | 43 / 2 — APPLICATION EXAMPLES: SIMPLE SOLUTIONS – HIGHLY EFFECTIVE. UART INTERFACE … |
| Dateiformat / Größe | PDF / 1.1 Mb |
| Dokumentensprache | Englisch |
APPLICATION EXAMPLES: SIMPLE SOLUTIONS – HIGHLY EFFECTIVE. UART INTERFACE FOR CONTROL OF 2 DC MOTORS. OA1. UART. OA2. High-Level
Modelllinie für dieses Datenblatt
Textversion des Dokuments

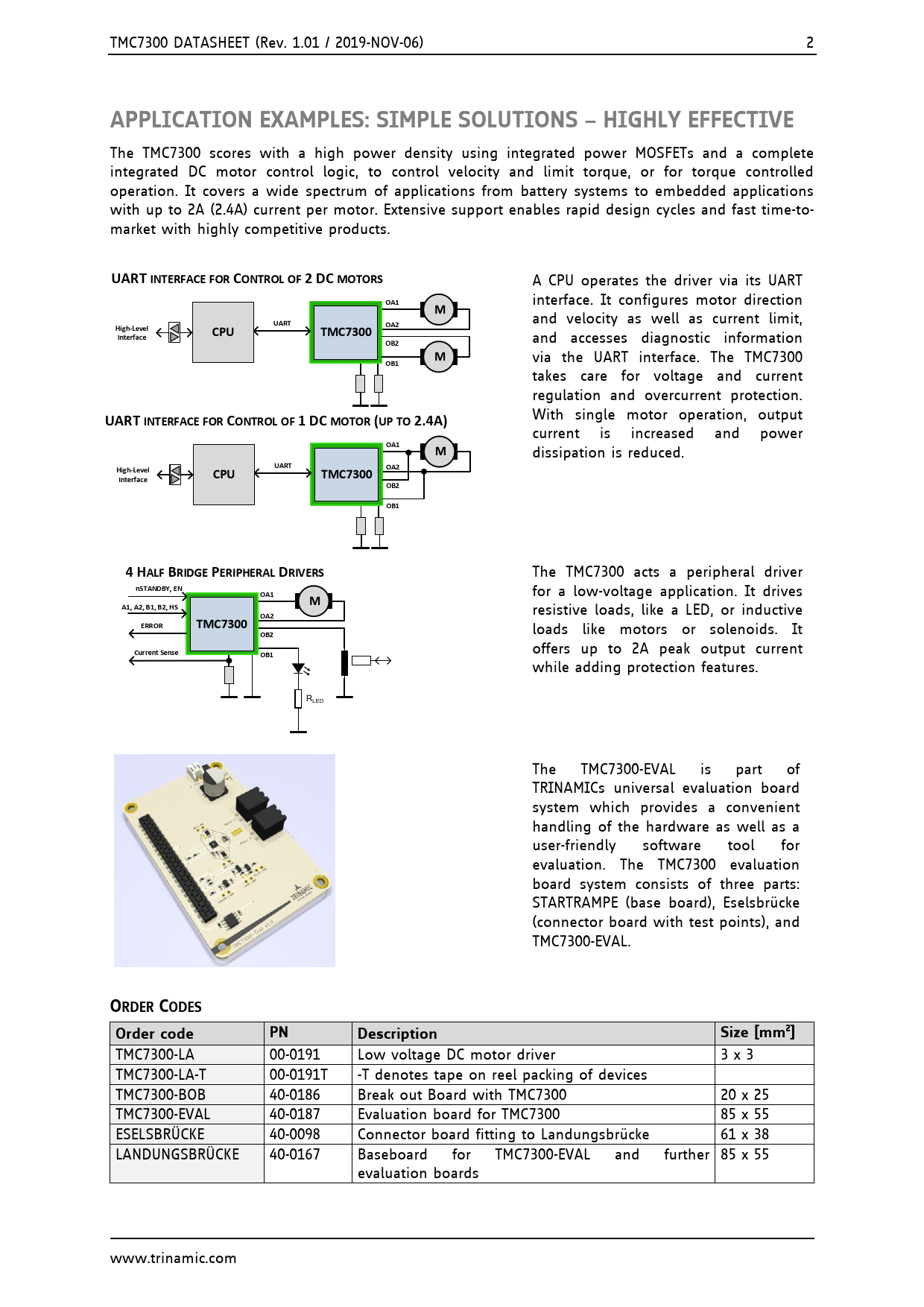

TMC7300 DATASHEET (Rev. 1.01 / 2019-NOV-06) 2
APPLICATION EXAMPLES: SIMPLE SOLUTIONS – HIGHLY EFFECTIVE
The TMC7300 scores with a high power density using integrated power MOSFETs and a complete integrated DC motor control logic, to control velocity and limit torque, or for torque controlled operation. It covers a wide spectrum of applications from battery systems to embedded applications with up to 2A (2.4A) current per motor. Extensive support enables rapid design cycles and fast time-to- market with highly competitive products.
UART INTERFACE FOR CONTROL OF 2 DC MOTORS
A CPU operates the driver via its UART
OA1
interface. It configures motor direction
M
and velocity as well as current limit,
UART OA2 High-Level CPU TMC7300 Interface
and accesses diagnostic information
OB2 M
via the UART interface. The TMC7300
OB1
takes care for voltage and current regulation and overcurrent protection.
UART
With single motor operation, output
INTERFACE FOR CONTROL OF 1 DC MOTOR (UP TO 2.4A)
current is increased and power
OA1 M
dissipation is reduced.
UART OA2 High-Level CPU TMC7300 Interface OB2 OB1 4 HALF BRIDGE PERIPHERAL DRIVERS
The TMC7300 acts a peripheral driver
nSTANDBY, EN OA1
for a low-voltage application. It drives
M A1, A2, B1, B2, HS
resistive loads, like a LED, or inductive
OA2 ERROR TMC7300
loads like motors or solenoids. It
OB2
offers up to 2A peak output current
Current Sense OB1
while adding protection features. RLED The TMC7300-EVAL is part of TRINAMICs universal evaluation board system which provides a convenient handling of the hardware as well as a user-friendly software tool for evaluation. The TMC7300 evaluation board system consists of three parts: STARTRAMPE (base board), Eselsbrücke (connector board with test points), and TMC7300-EVAL.
ORDER CODES Order code PN Description Size [mm2]
TMC7300-LA 00-0191 Low voltage DC motor driver 3 x 3 TMC7300-LA-T 00-0191T -T denotes tape on reel packing of devices TMC7300-BOB 40-0186 Break out Board with TMC7300 20 x 25 TMC7300-EVAL 40-0187 Evaluation board for TMC7300 85 x 55 ESELSBRÜCKE 40-0098 Connector board fitting to Landungsbrücke 61 x 38 LANDUNGSBRÜCKE 40-0167 Baseboard for TMC7300-EVAL and further 85 x 55 evaluation boards www.trinamic.com
