Datasheet AD8206 (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | High Common-Mode Voltage, Bidirectional Current Shunt Amplifier |
| Seiten / Seite | 13 / 6 — AD8206. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. … |
| Revision | C |
| Dateiformat / Größe | PDF / 363 Kb |
| Dokumentensprache | Englisch |
AD8206. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. +IN. GND. VREF1. TOP VIEW. VREF2 3. (Not to Scale). OUT
Modelllinie für dieses Datenblatt
Textversion des Dokuments

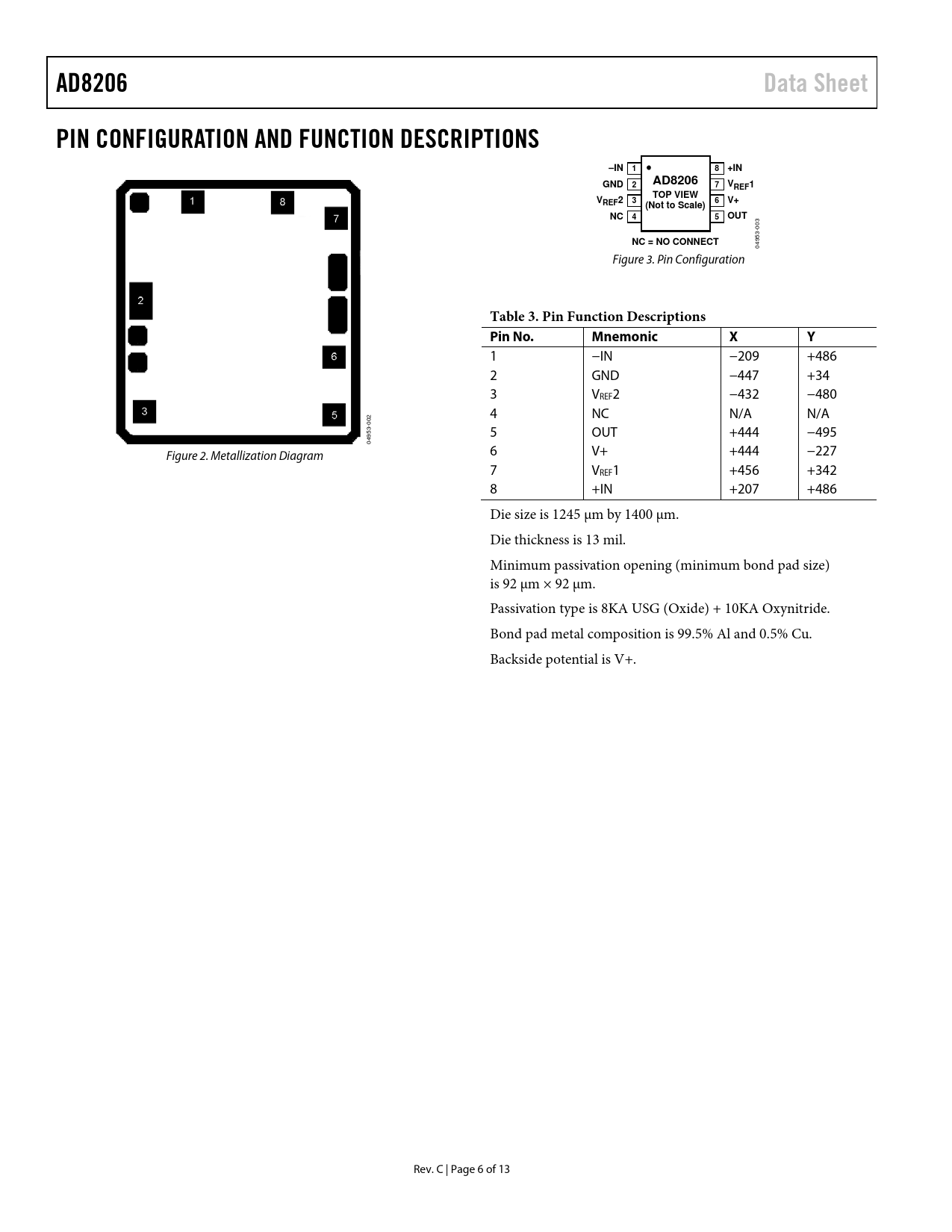

AD8206 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS –IN 1 8 +IN GND 2 AD8206 7 VREF1 TOP VIEW VREF2 3 6 V+ (Not to Scale) NC 4 5 OUT NC = NO CONNECT
04953-003 Figure 3. Pin Configuration
Table 3. Pin Function Descriptions Pin No. Mnemonic X Y
