Datasheet AD8217 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | High Resolution, Zero-Drift Current Shunt Monitor |
| Seiten / Seite | 16 / 5 — AD8217. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. +IN. –IN. TOP VIEW. … |
| Revision | A |
| Dateiformat / Größe | PDF / 325 Kb |
| Dokumentensprache | Englisch |

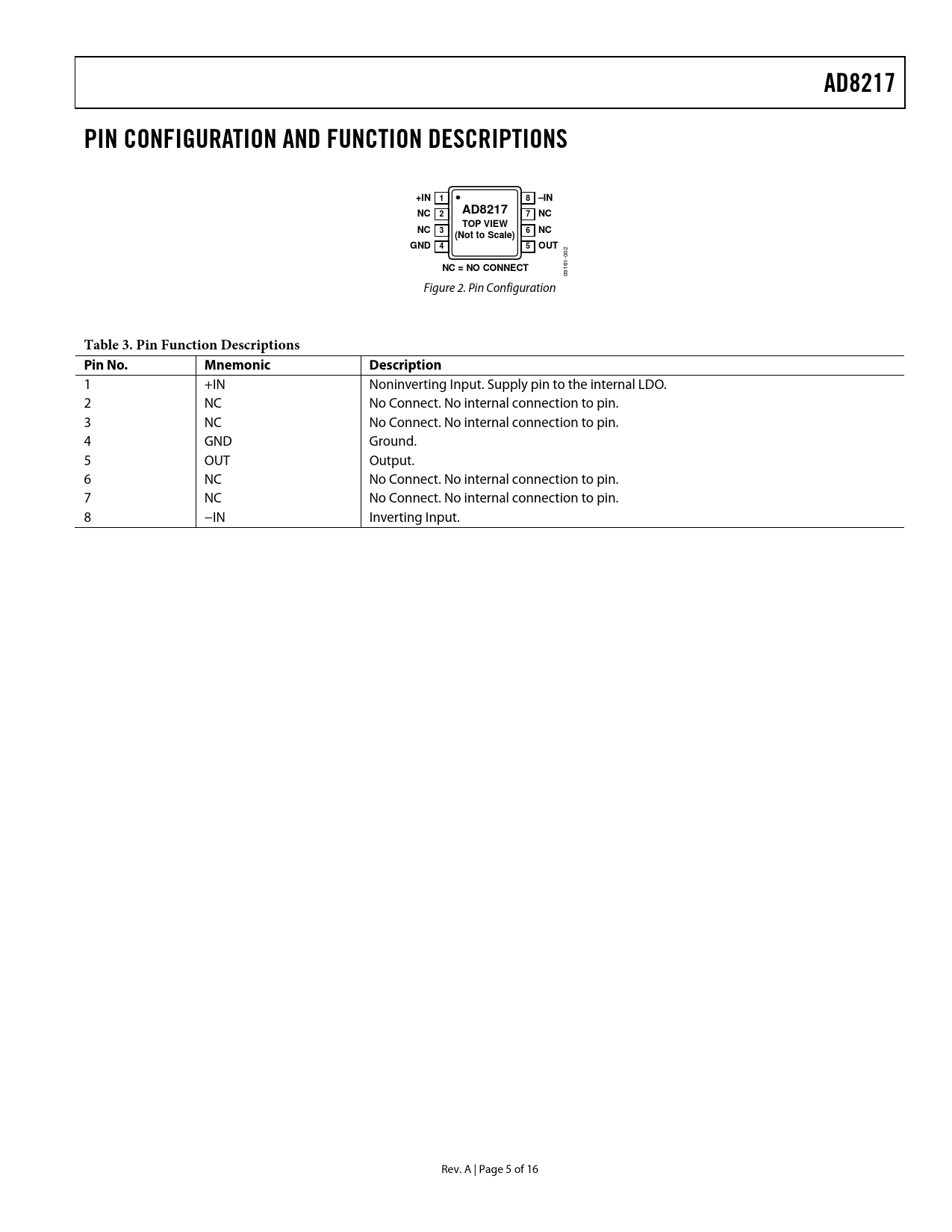

AD8217. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. +IN. –IN. TOP VIEW. (Not to Scale). GND. OUT. NC = NO CONNECT
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AD8217 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS +IN 1 8 –IN NC AD8217 2 7 NC TOP VIEW NC 3 6 NC (Not to Scale) GND 4 5 OUT
2 -00
NC = NO CONNECT
161 09 Figure 2. Pin Configuration
Table 3. Pin Function Descriptions Pin No. Mnemonic Description
1 +IN Noninverting Input. Supply pin to the internal LDO. 2 NC No Connect. No internal connection to pin. 3 NC No Connect. No internal connection to pin. 4 GND Ground. 5 OUT Output. 6 NC No Connect. No internal connection to pin. 7 NC No Connect. No internal connection to pin. 8 −IN Inverting Input. Rev. A | Page 5 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION AMPLIFIER CORE INTERNAL LDO APPLICATION NOTES OUTPUT LINEARITY APPLICATIONS INFORMATION HIGH-SIDE CURRENT SENSING MOTOR CONTROL CURRENT SENSING OUTLINE DIMENSIONS ORDERING GUIDE
