Datasheet AD8209A (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | High Voltage, Precision Difference Amplifier |
| Seiten / Seite | 15 / 4 — AD8209A. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. … |
| Revision | A |
| Dateiformat / Größe | PDF / 458 Kb |
| Dokumentensprache | Englisch |
AD8209A. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 11

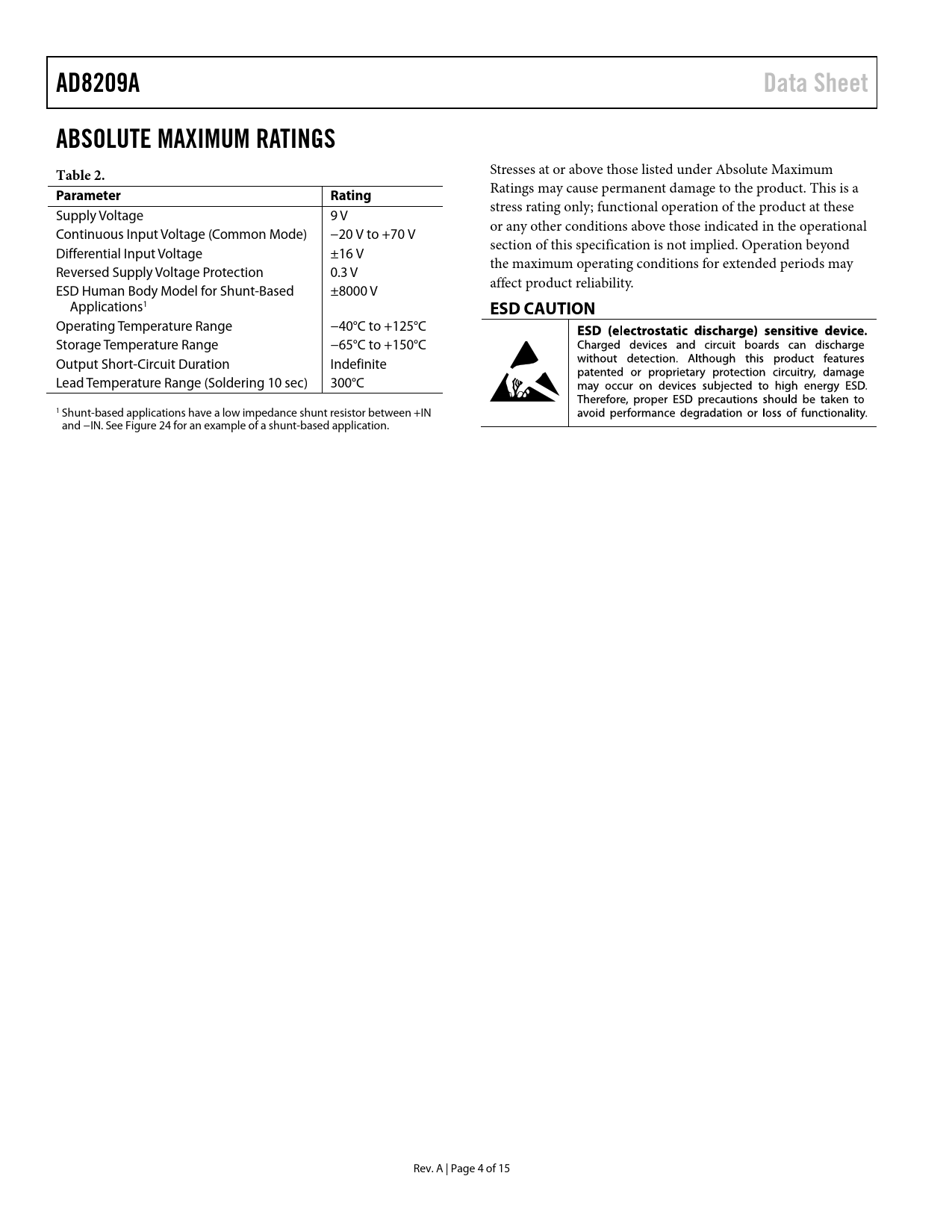

AD8209A Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage 9 V or any other conditions above those indicated in the operational Continuous Input Voltage (Common Mode) −20 V to +70 V section of this specification is not implied. Operation beyond Differential Input Voltage ±16 V the maximum operating conditions for extended periods may Reversed Supply Voltage Protection 0.3 V affect product reliability. ESD Human Body Model for Shunt-Based ±8000 V Applications1
ESD CAUTION
Operating Temperature Range −40°C to +125°C Storage Temperature Range −65°C to +150°C Output Short-Circuit Duration Indefinite Lead Temperature Range (Soldering 10 sec) 300°C 1 Shunt-based applications have a low impedance shunt resistor between +IN and −IN. See Figure 24 for an example of a shunt-based application. Rev. A | Page 4 of 15 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION HIGH-SIDE CURRENT SENSINGWITH A LOW-SIDE SWITCH HIGH RAIL CURRENT SENSING LOW-SIDE CURRENT SENSING 4 mA to 20 mA Current Loop Receiver GAIN ADJUSTMENT Gains Less than 14 Gains Greater than 14 GAIN TRIM Internal Signal Overload Considerations LOW-PASS FILTERING HIGH LINE CURRENT SENSING WITH LOW-PASS FILTERING AND GAIN ADJUSTMENT OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
