VOLTAGE SENSE TYPICAL PERFORMANCE CHARACTERISTICS. Step Response 20V to 40V. Small Signal Overshoot (OUTV). (OUTV)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC6115

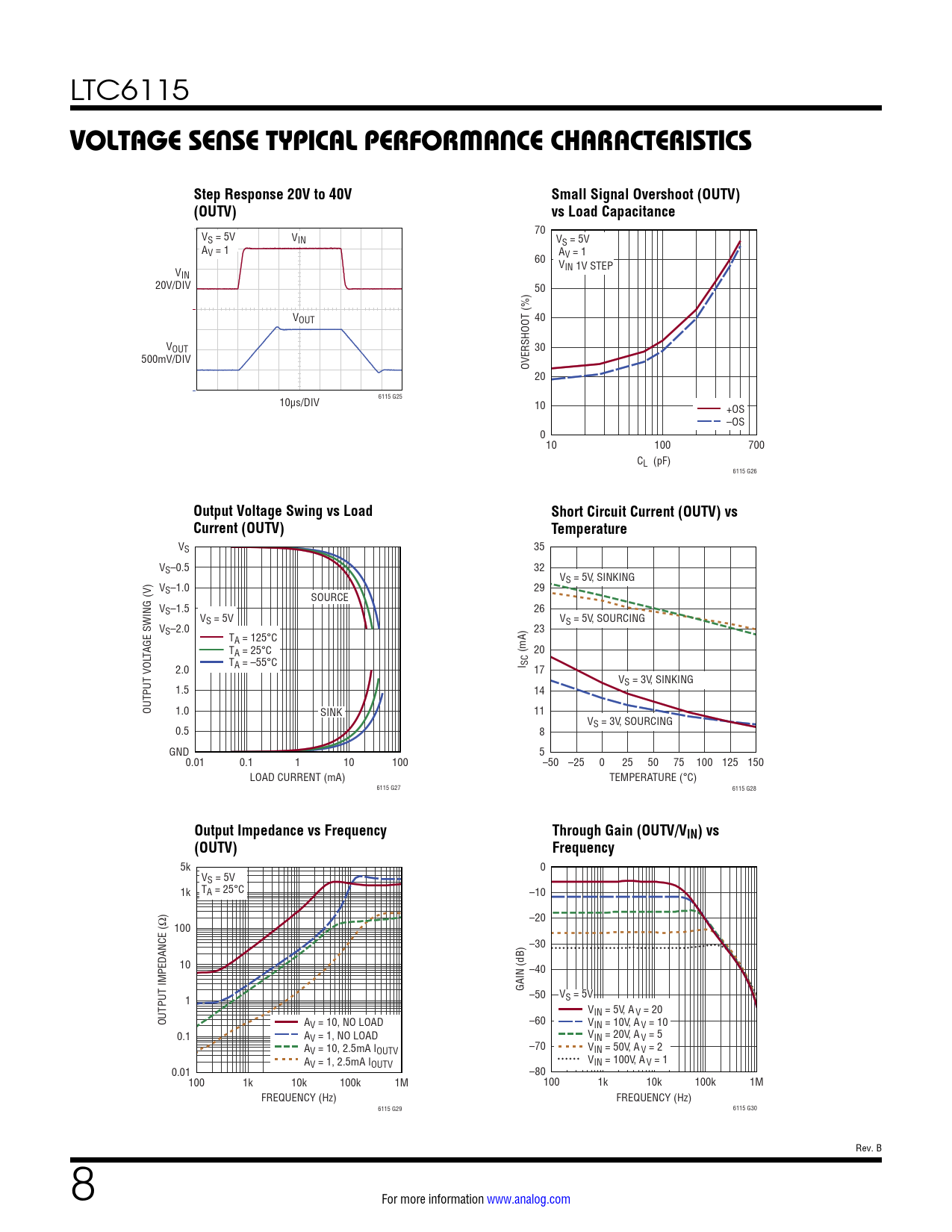

VOLTAGE SENSE TYPICAL PERFORMANCE CHARACTERISTICS Step Response 20V to 40V Small Signal Overshoot (OUTV) (OUTV) vs Load Capacitance
