Datasheet 48L640 (Microchip) - 5
| Hersteller | Microchip |
| Beschreibung | 64-Kbit SPI Serial EERAM |
| Seiten / Seite | 40 / 5 — 48L640. FIGURE 1-1:. HOLD TIMING. FIGURE 1-2:. SERIAL INPUT TIMING MODE … |
| Dateiformat / Größe | PDF / 563 Kb |
| Dokumentensprache | Englisch |
48L640. FIGURE 1-1:. HOLD TIMING. FIGURE 1-2:. SERIAL INPUT TIMING MODE 0,0. FIGURE 1-3:. SERIAL INPUT TIMING MODE 1,1. Preliminary
Modelllinie für dieses Datenblatt
Textversion des Dokuments

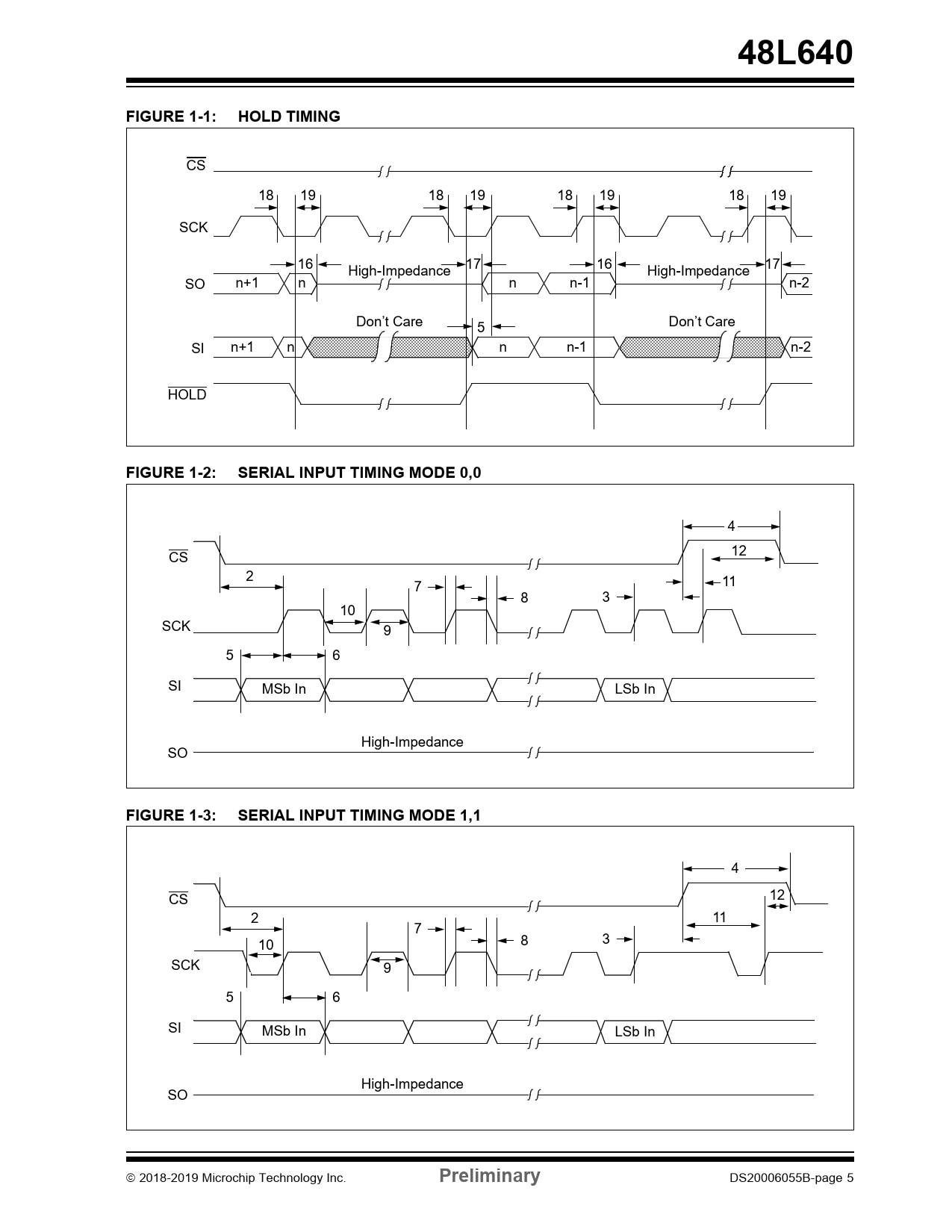

48L640 FIGURE 1-1: HOLD TIMING
CS 18 19 18 19 18 19 18 19 SCK 16 17 High-Impedance 16 17 High-Impedance SO n+1 n n n-1 n-2 Don’t Care 5 Don’t Care SI n+1 n n n-1 n-2 HOLD
FIGURE 1-2: SERIAL INPUT TIMING MODE 0,0
4 CS 12 2 7 11 8 3 10 SCK 9 5 6 SI MSb In LSb In High-Impedance SO
FIGURE 1-3: SERIAL INPUT TIMING MODE 1,1
4 CS 12 2 11 7 8 3 10 SCK 9 5 6 SI MSb In LSb In High-Impedance SO 2018-2019 Microchip Technology Inc.
Preliminary
