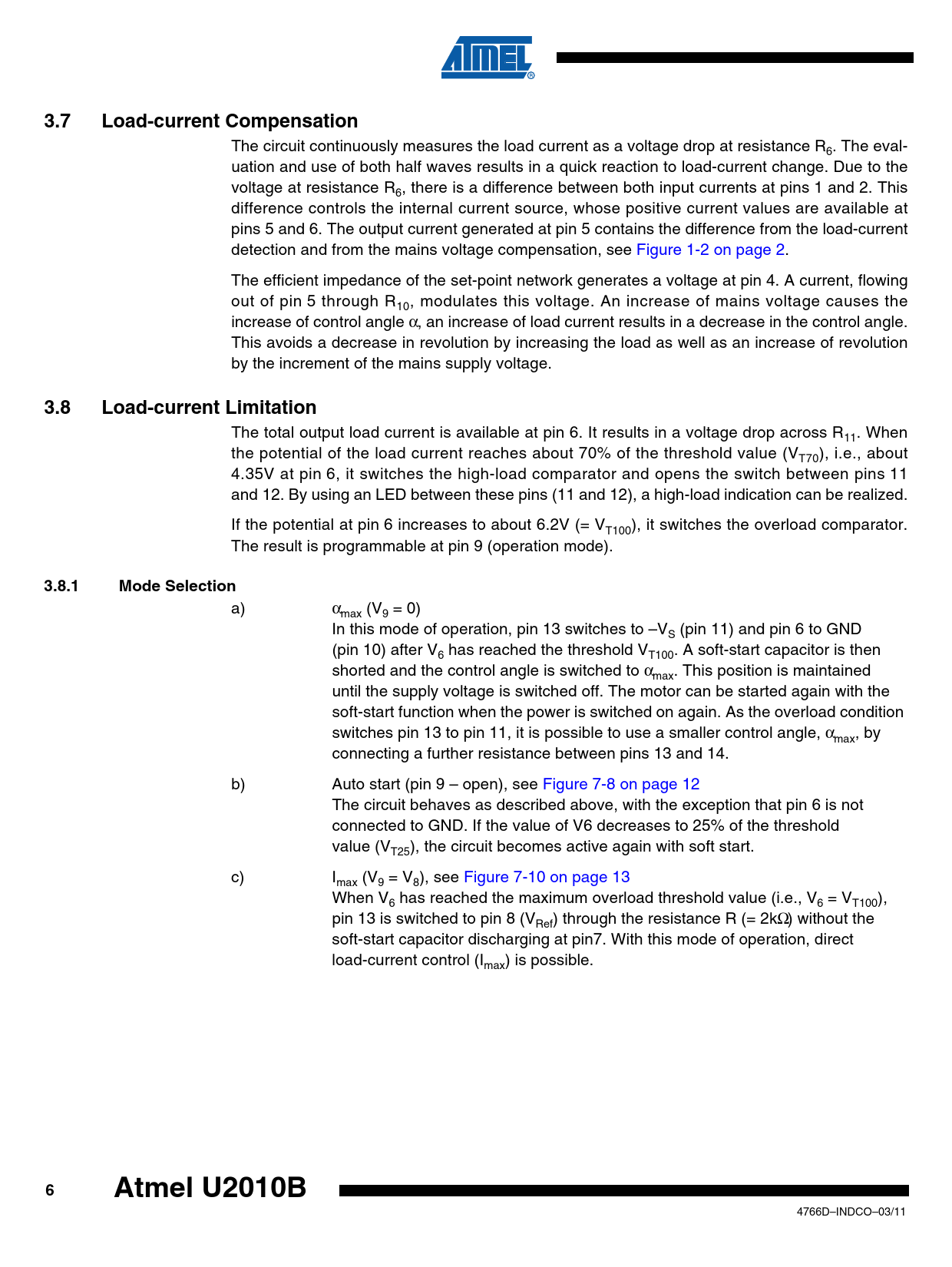

3.7 Load-current Compensation
The circuit continuously measures the load current as a voltage drop at resistance R . The eval- 6 uation and use of both half waves results in a quick reaction to load-current change. Due to the voltage at resistance R , there is a difference between both input currents at pins 1 and 2. This 6 difference controls the internal current source, whose positive current values are available at pins 5 and 6. The output current generated at pin 5 contains the difference from the load-current detection and from the mains voltage compensation, see Figure 1-2 on page 2. The efficient impedance of the set-point network generates a voltage at pin 4. A current, flowing out of pin 5 through R , modulates this voltage. An increase of mains voltage causes the 10 increase of control angle α, an increase of load current results in a decrease in the control angle. This avoids a decrease in revolution by increasing the load as well as an increase of revolution by the increment of the mains supply voltage.
3.8 Load-current Limitation
The total output load current is available at pin 6. It results in a voltage drop across R . When 11 the potential of the load current reaches about 70% of the threshold value (V ), i.e., about T70 4.35V at pin 6, it switches the high-load comparator and opens the switch between pins 11 and 12. By using an LED between these pins (11 and 12), a high-load indication can be realized. If the potential at pin 6 increases to about 6.2V (= V ), it switches the overload comparator. T100 The result is programmable at pin 9 (operation mode).
3.8.1 Mode Selection
a) α (V = 0) max 9 In this mode of operation, pin 13 switches to –V (pin 11) and pin 6 to GND S (pin 10) after V has reached the threshold V . A soft-start capacitor is then 6 T100 shorted and the control angle is switched to α . This position is maintained max until the supply voltage is switched off. The motor can be started again with the soft-start function when the power is switched on again. As the overload condition switches pin 13 to pin 11, it is possible to use a smaller control angle, α , by max connecting a further resistance between pins 13 and 14. b) Auto start (pin 9 – open), see Figure 7-8 on page 12 The circuit behaves as described above, with the exception that pin 6 is not connected to GND. If the value of V6 decreases to 25% of the threshold value (V ), the circuit becomes active again with soft start. T25 c) I (V = V ), see Figure 7-10 on page 13 max 9 8 When V has reached the maximum overload threshold value (i.e., V = V ), 6 6 T100 pin 13 is switched to pin 8 (V ) through the resistance R (= 2kΩ) without the Ref soft-start capacitor discharging at pin7. With this mode of operation, direct load-current control (I ) is possible. max
