Datasheet STTS22H (STMicroelectronics) - 7
| Hersteller | STMicroelectronics |
| Beschreibung | Low-voltage, ultra-low-power, 0.5 °C accuracy I2C/SMBus 3.0 temperature sensor |
| Seiten / Seite | 29 / 7 — STTS22H. Absolute maximum ratings. Table 5. Absolute maximum ratings. … |
| Dateiformat / Größe | PDF / 1.4 Mb |
| Dokumentensprache | Englisch |

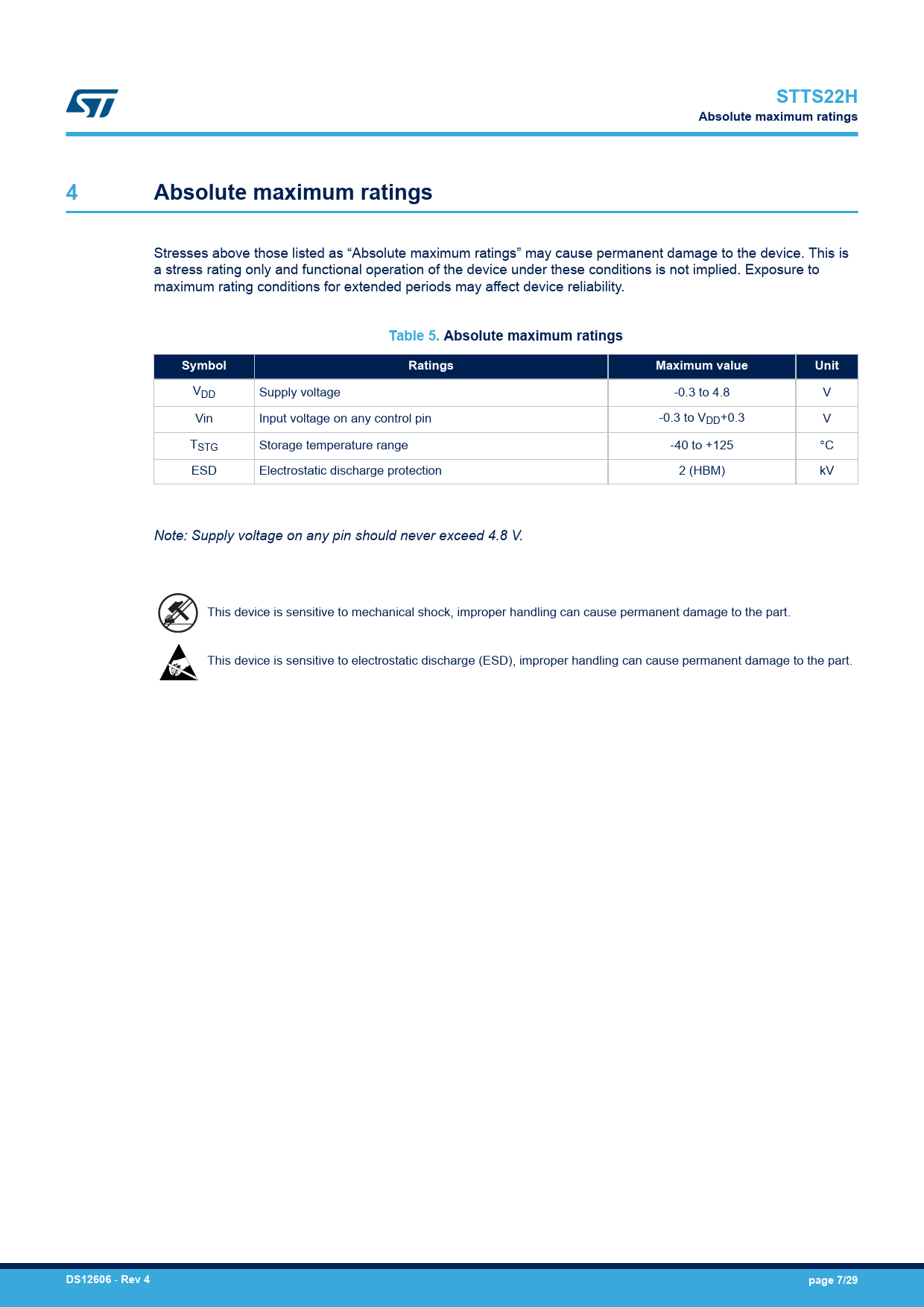

STTS22H. Absolute maximum ratings. Table 5. Absolute maximum ratings. Symbol. Ratings. Maximum value. Unit. DS12606. Rev 4. page 7/29
Modelllinie für dieses Datenblatt
Textversion des Dokuments
STTS22H Absolute maximum ratings 4 Absolute maximum ratings
Stresses above those listed as “Absolute maximum ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device under these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
Table 5. Absolute maximum ratings Symbol Ratings Maximum value Unit
VDD Supply voltage -0.3 to 4.8 V Vin Input voltage on any control pin -0.3 to VDD+0.3 V TSTG Storage temperature range -40 to +125 °C ESD Electrostatic discharge protection 2 (HBM) kV Note: Supply voltage on any pin should never exceed 4.8 V. This device is sensitive to mechanical shock, improper handling can cause permanent damage to the part. This device is sensitive to electrostatic discharge (ESD), improper handling can cause permanent damage to the part.
