Datasheet STTS22H (STMicroelectronics) - 3
| Hersteller | STMicroelectronics |
| Beschreibung | Low-voltage, ultra-low-power, 0.5 °C accuracy I2C/SMBus 3.0 temperature sensor |
| Seiten / Seite | 29 / 3 — STTS22H. Overview. DS12606. Rev 4. page 3/29 |
| Dateiformat / Größe | PDF / 1.4 Mb |
| Dokumentensprache | Englisch |
STTS22H. Overview. DS12606. Rev 4. page 3/29
Modelllinie für dieses Datenblatt
Textversion des Dokuments

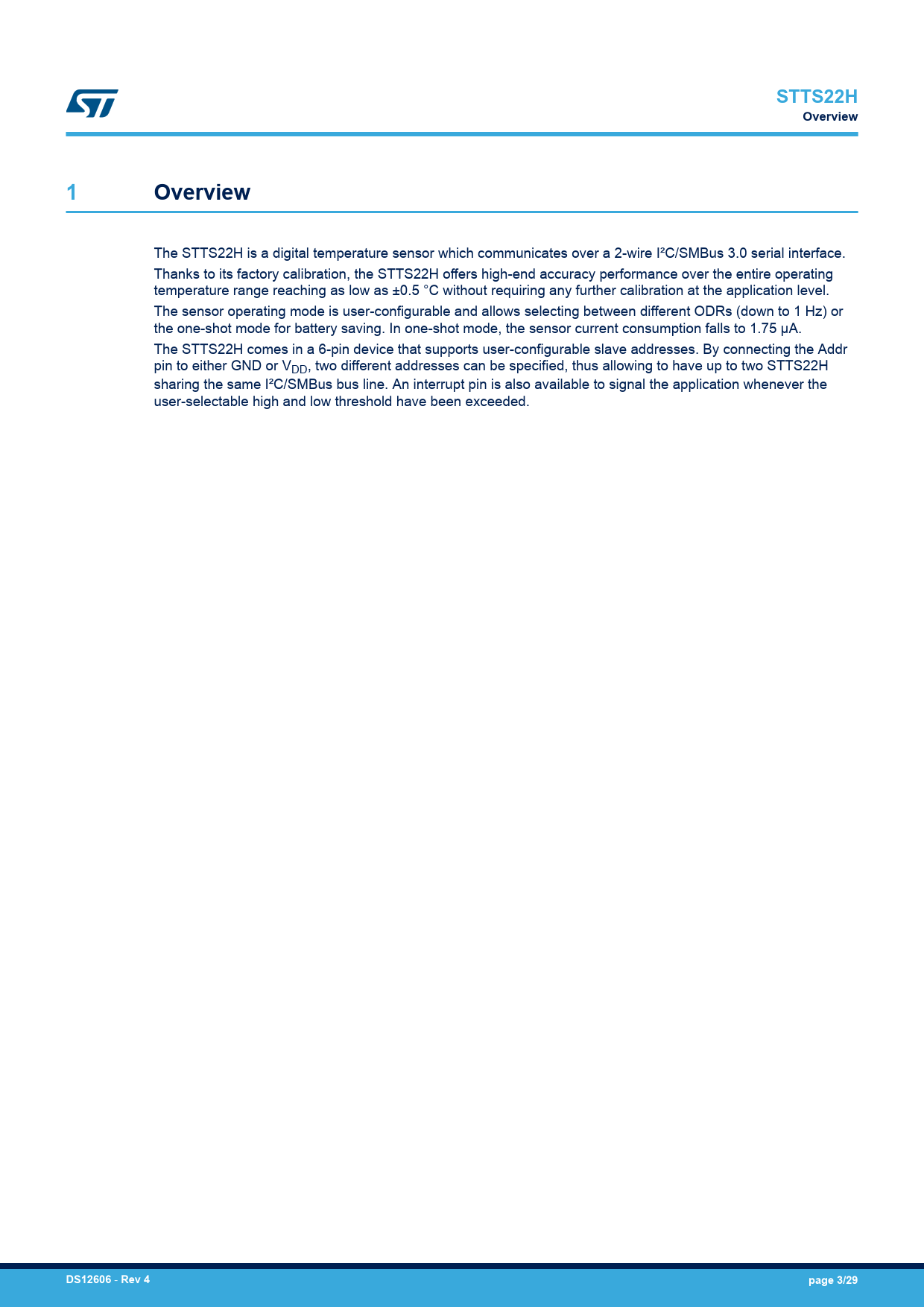

STTS22H Overview 1 Overview
The STTS22H is a digital temperature sensor which communicates over a 2-wire I²C/SMBus 3.0 serial interface. Thanks to its factory calibration, the STTS22H offers high-end accuracy performance over the entire operating temperature range reaching as low as ±0.5 °C without requiring any further calibration at the application level. The sensor operating mode is user-configurable and allows selecting between different ODRs (down to 1 Hz) or the one-shot mode for battery saving. In one-shot mode, the sensor current consumption falls to 1.75 µA. The STTS22H comes in a 6-pin device that supports user-configurable slave addresses. By connecting the Addr pin to either GND or VDD, two different addresses can be specified, thus allowing to have up to two STTS22H sharing the same I²C/SMBus bus line. An interrupt pin is also available to signal the application whenever the user-selectable high and low threshold have been exceeded.
