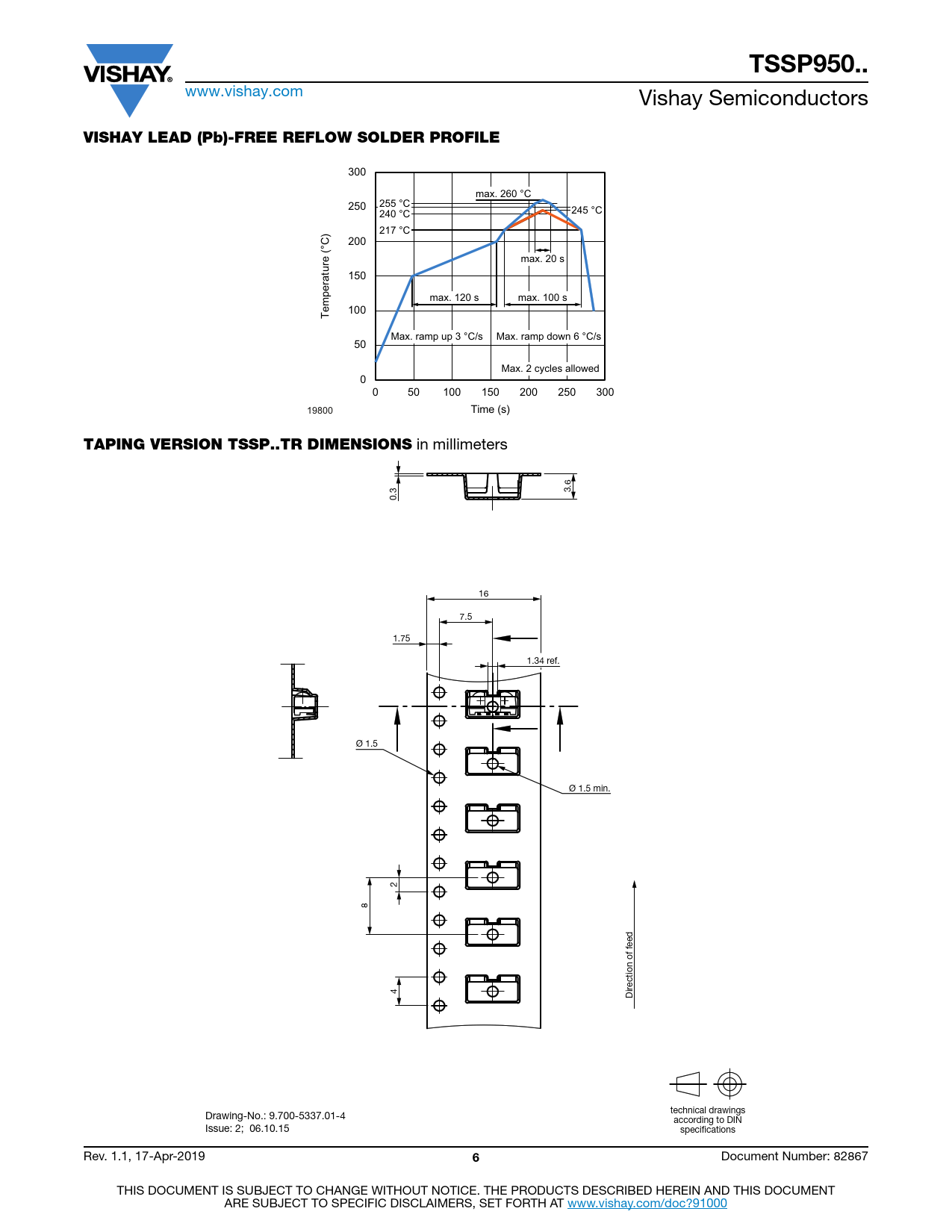

TSSP950.. VISHAY LEAD (Pb)-FREE REFLOW SOLDER PROFILE. TAPING VERSION TSSP..TR DIMENSIONS
Modelllinie für dieses Datenblatt
Textversion des Dokuments
TSSP950..
www.vishay.com Vishay Semiconductors
VISHAY LEAD (Pb)-FREE REFLOW SOLDER PROFILE
Axis Title 300 10000 max. 260 °C 250 255 °C 245 °C 240 °C 217 °C 200 1000 max. 20 s ine 150 2nd l max. 120 s max. 100 s 100 100 Temperature (°C) Max. ramp up 3 °C/s Max. ramp down 6 °C/s 50 Max. 2 cycles allowed 0 10 0 50 100 150 200 250 300 19800 Time (s)
TAPING VERSION TSSP..TR DIMENSIONS
in millimeters 3.6 0.3 16 7.5 1.75 1.34 ref. Ø 1.5 Ø 1.5 min. 2 8 4 Direction of feed technical drawings Drawing-No.: 9.700-5337.01-4 according to DIN Issue: 2; 06.10.15 specifications Rev. 1.1, 17-Apr-2019
6
