Datasheet CBRDFSH2-40, CBRDFSH2-60, CBRDFSH2-100 (Central Semiconductor) - 2
| Hersteller | Central Semiconductor |
| Beschreibung | Surface mount 2.0 AMP SILICON Rectifier-Bridge Schottky |
| Seiten / Seite | 6 / 2 — CBRDFSH2-40. CBRDFSH2-60. CBRDFSH2-100. SURFACE MOUNT. 2.0 AMP SILICON. … |
| Dateiformat / Größe | PDF / 820 Kb |
| Dokumentensprache | Englisch |
CBRDFSH2-40. CBRDFSH2-60. CBRDFSH2-100. SURFACE MOUNT. 2.0 AMP SILICON. SCHOTTKY BRIDGE RECTIFIERS
Modelllinie für dieses Datenblatt
Textversion des Dokuments

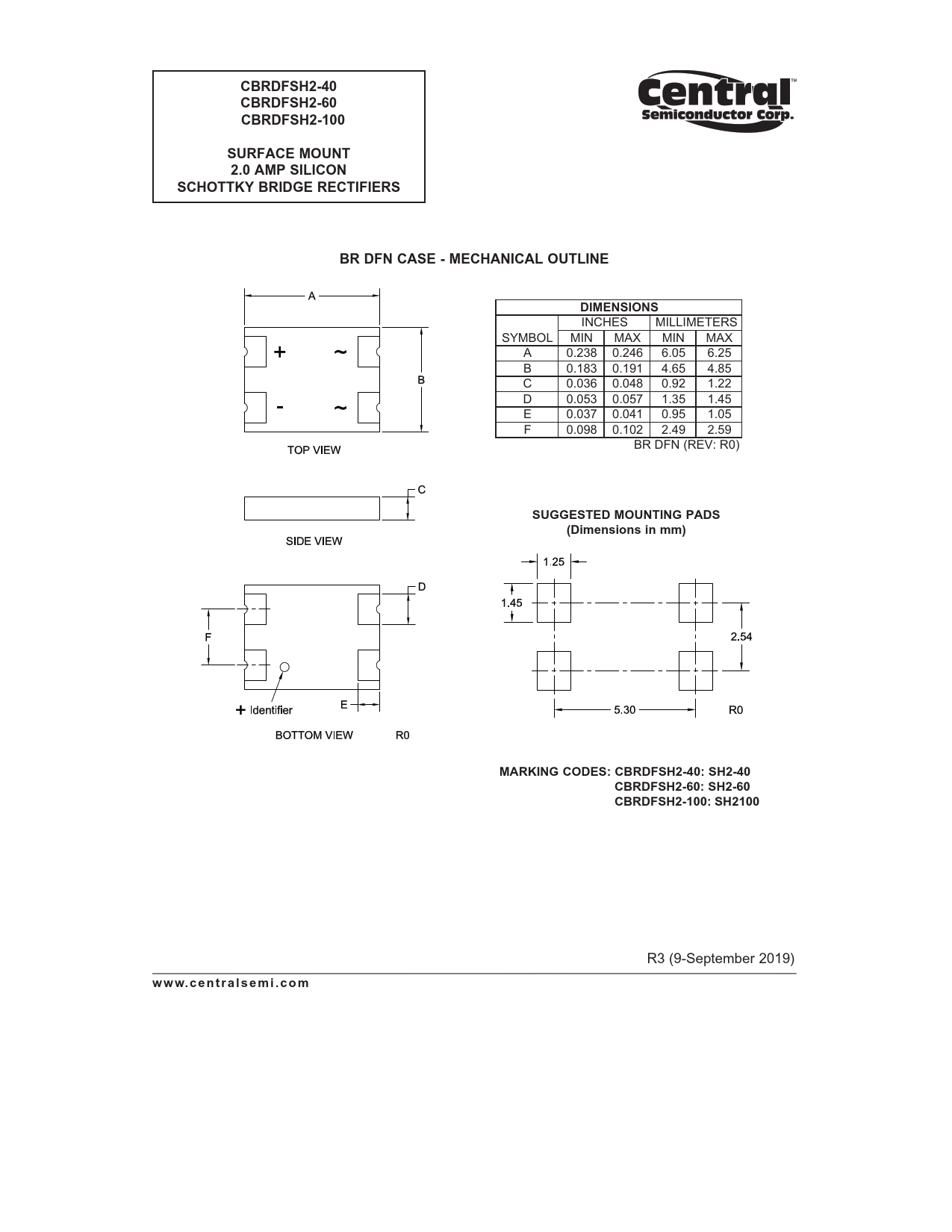

CBRDFSH2-40 CBRDFSH2-60 CBRDFSH2-100 SURFACE MOUNT 2.0 AMP SILICON SCHOTTKY BRIDGE RECTIFIERS BR DFN CASE - MECHANICAL OUTLINE DIMENSIONS
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.238 0.246 6.05 6.25 B 0.183 0.191 4.65 4.85 C 0.036 0.048 0.92 1.22 D 0.053 0.057 1.35 1.45 E 0.037 0.041 0.95 1.05 F 0.098 0.102 2.49 2.59 BR DFN (REV: R0)
SUGGESTED MOUNTING PADS (Dimensions in mm) MARKING CODES: CBRDFSH2-40: SH2-40 CBRDFSH2-60: SH2-60 CBRDFSH2-100: SH2100
R3 (9-September 2019)
www.centralsemi.com
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.238 0.246 6.05 6.25 B 0.183 0.191 4.65 4.85 C 0.036 0.048 0.92 1.22 D 0.053 0.057 1.35 1.45 E 0.037 0.041 0.95 1.05 F 0.098 0.102 2.49 2.59 BR DFN (REV: R0)
SUGGESTED MOUNTING PADS (Dimensions in mm) MARKING CODES: CBRDFSH2-40: SH2-40 CBRDFSH2-60: SH2-60 CBRDFSH2-100: SH2100
