Datasheet TB67S112PG (Toshiba) - 6

HerstellerToshiba
BeschreibungBiCD Process Integrated Circuit Silicon Monolithic
Seiten / Seite15 / 6 — Functional Description. Relation between logic inputs and output MOSFETs
Dateiformat / GrößePDF / 352 Kb
DokumentenspracheEnglisch

Functional Description. Relation between logic inputs and output MOSFETs

Functional Description Relation between logic inputs and output MOSFETs

Modelllinie für dieses Datenblatt

Textversion des Dokuments

TB67S112PG

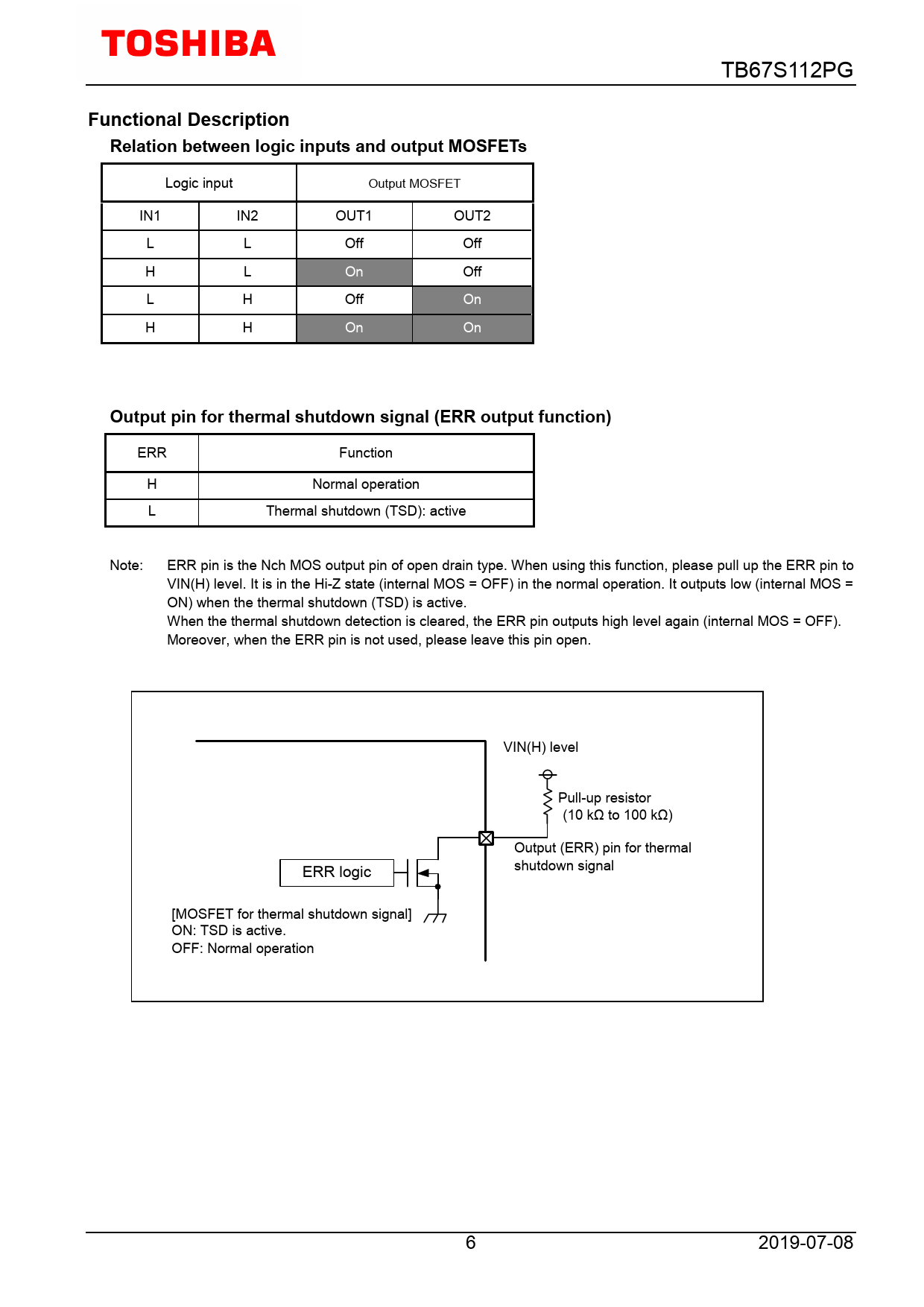

Functional Description Relation between logic inputs and output MOSFETs
Logic input Output MOSFET IN1 IN2 OUT1 OUT2 L L Off Off H L On Off L H Off On H H On On
Output pin for thermal shutdown signal (ERR output function)
ERR Function H Normal operation L Thermal shutdown (TSD): active Note: ERR pin is the Nch MOS output pin of open drain type. When using this function, please pul up the ERR pin to VIN(H) level. It is in the Hi-Z state (internal MOS = OFF) in the normal operation. It outputs low (internal MOS = ON) when the thermal shutdown (TSD) is active. When the thermal shutdown detection is cleared, the ERR pin outputs high level again (internal MOS = OFF). Moreover, when the ERR pin is not used, please leave this pin open. VIN(H) level Pull-up resistor (10 kΩ to 100 kΩ) Output (ERR) pin for thermal ERR logic shutdown signal [MOSFET for thermal shutdown signal] ON: TSD is active. OFF: Normal operation 6 2019-07-08
