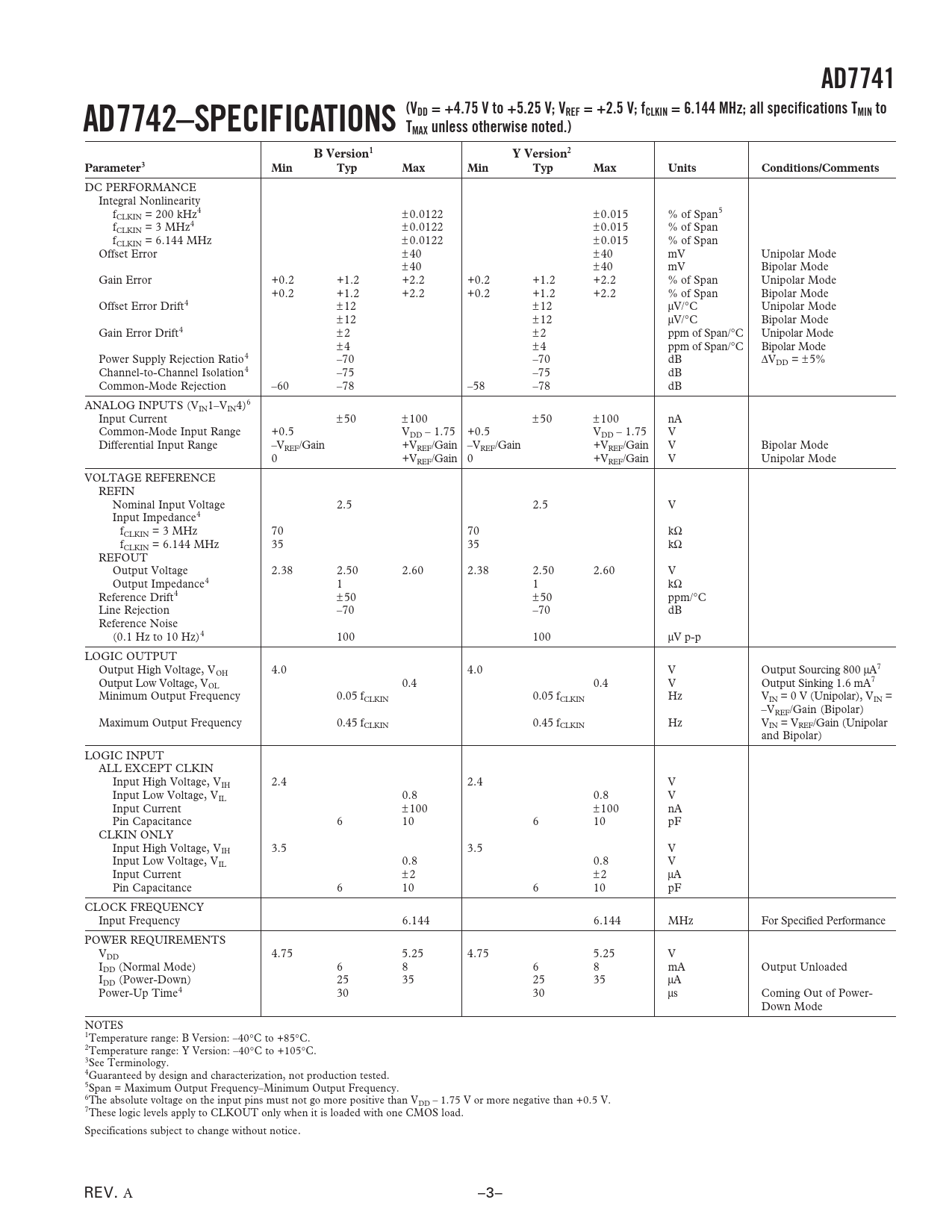

AD7741 (VDD = +4.75 V to +5.25 V; VREF = +2.5 V; fCLKIN = 6.144 MHz; all specifications TMIN to AD7742–SPECIFICATIONS TMAX unless otherwise noted.) B Version1 Y Version2 Parameter3 Min Typ Max Min Typ Max Units Conditions/Comments
