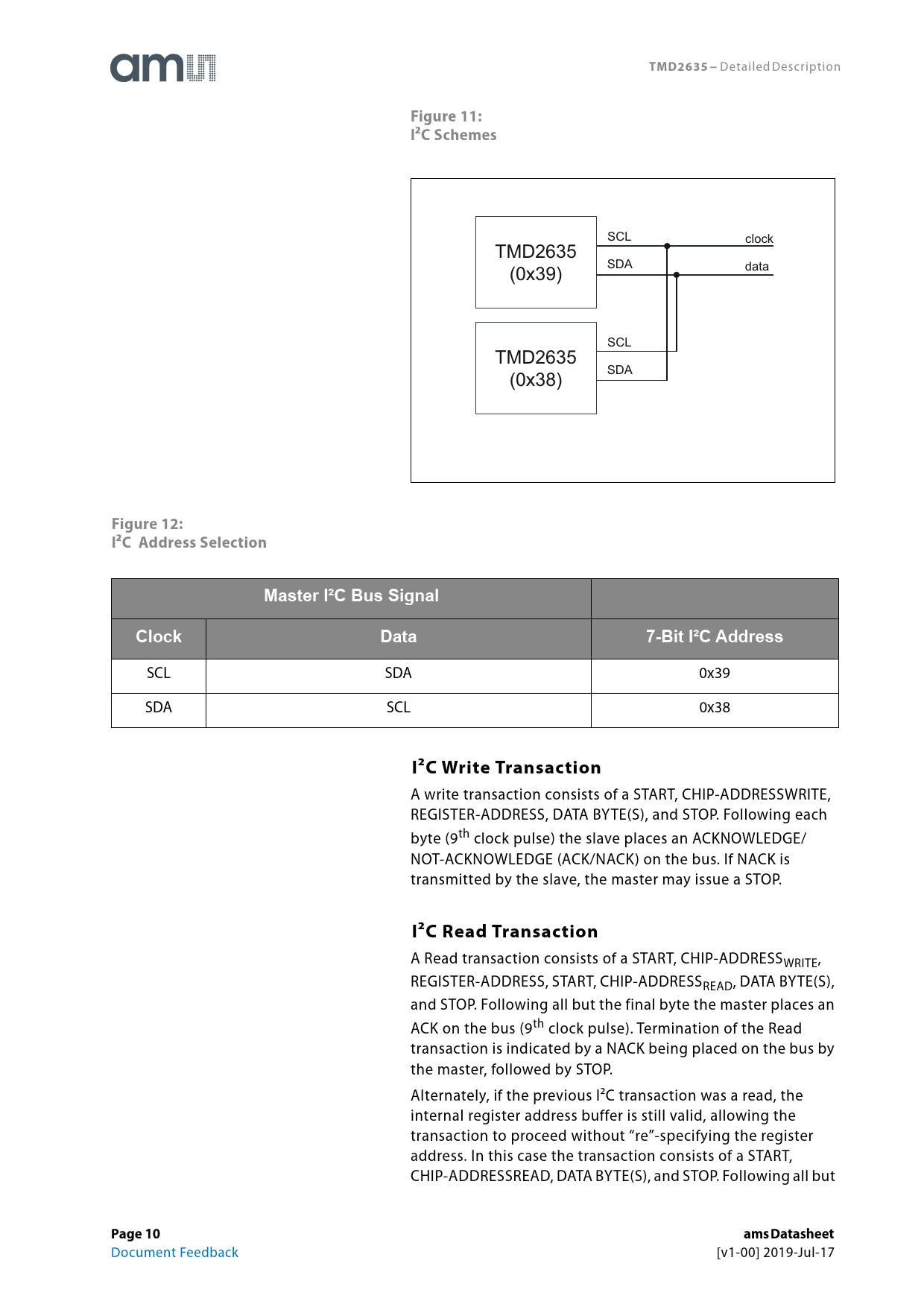

TMD2635 −. Figure 11: I²C Schemes. Figure 12: I²C Address Selection. Master I²C Bus Signal. Clock. Data. 7-Bit I²C Address
Modelllinie für dieses Datenblatt
Textversion des Dokuments
TMD2635 −
Detailed Description
Figure 11: I²C Schemes
SCL clock TMD2635 SDA (0x39) data SCL TMD2635 SDA (0x38)
Figure 12: I²C Address Selection Master I²C Bus Signal Clock Data 7-Bit I²C Address
SCL SDA 0x39 SDA SCL 0x38
I²C Write Transaction
A write transaction consists of a START, CHIP-ADDRESSWRITE, REGISTER-ADDRESS, DATA BYTE(S), and STOP. Following each byte (9th clock pulse) the slave places an ACKNOWLEDGE/ NOT-ACKNOWLEDGE (ACK/NACK) on the bus. If NACK is transmitted by the slave, the master may issue a STOP.
I²C Read Transaction
A Read transaction consists of a START, CHIP-ADDRESSWRITE, REGISTER-ADDRESS, START, CHIP-ADDRESSREAD, DATA BYTE(S), and STOP. Following all but the final byte the master places an ACK on the bus (9th clock pulse). Termination of the Read transaction is indicated by a NACK being placed on the bus by the master, followed by STOP. Alternately, if the previous I²C transaction was a read, the internal register address buffer is still valid, allowing the transaction to proceed without “re”-specifying the register address. In this case the transaction consists of a START, CHIP-ADDRESSREAD, DATA BYTE(S), and STOP. Following all but
Page 10 ams Datasheet
