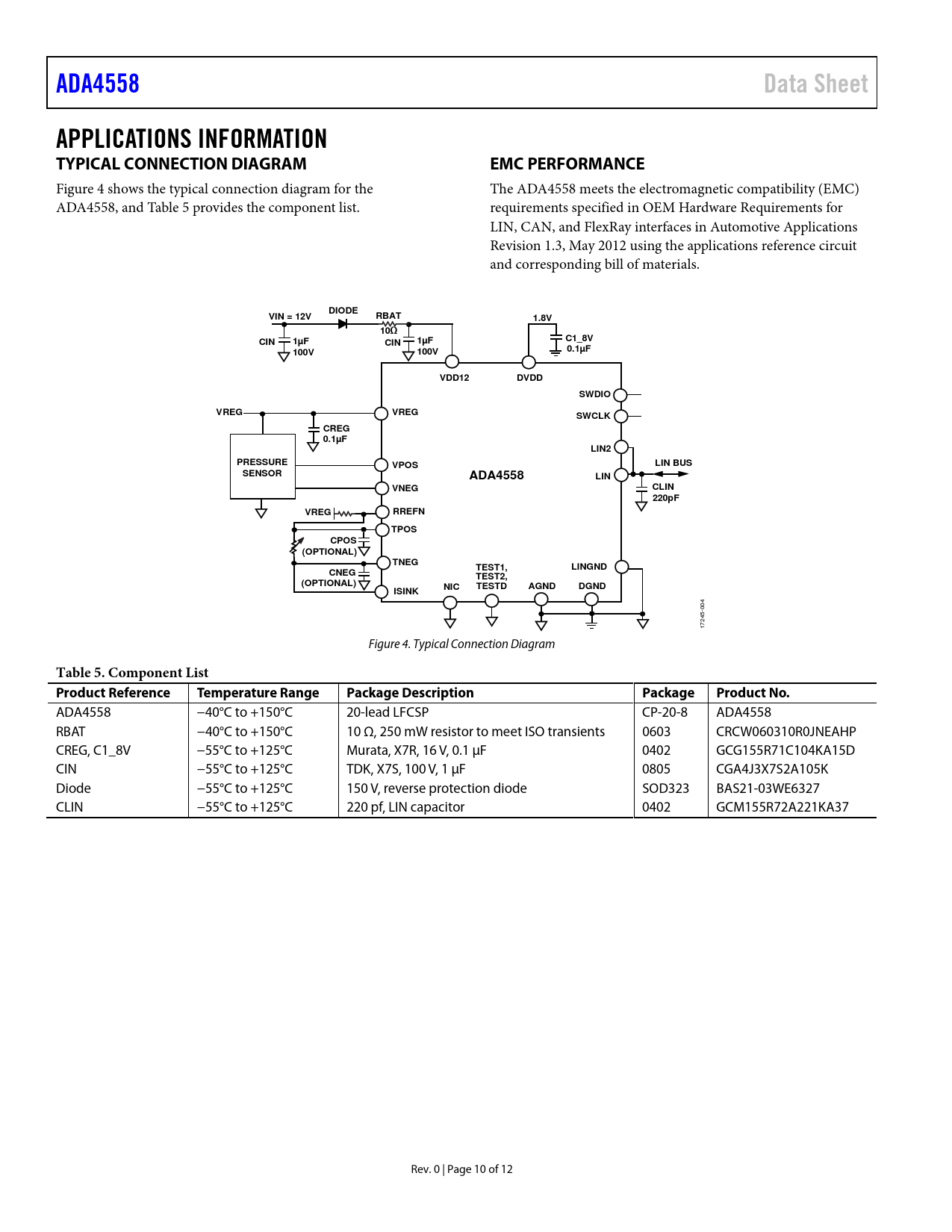

ADA4558 Data Sheet APPLICATIONS INFORMATION TYPICAL CONNECTION DIAGRAM EMC PERFORMANCE
Figure 4 shows the typical connection diagram for the The ADA4558 meets the electromagnetic compatibility (EMC) ADA4558, and Table 5 provides the component list. requirements specified in OEM Hardware Requirements for LIN, CAN, and FlexRay interfaces in Automotive Applications Revision 1.3, May 2012 using the applications reference circuit and corresponding bill of materials.
DIODE VIN = 12V RBAT 1.8V 10Ω C1_8V CIN 1µF 1µF CIN 100V 100V 0.1µF VDD12 DVDD SWDIO VREG VREG SWCLK CREG 0.1µF LIN2 PRESSURE VPOS LIN BUS SENSOR ADA4558 LIN VNEG CLIN 220pF VREG RREFN TPOS CPOS (OPTIONAL) TNEG TEST1, LINGND CNEG TEST2, (OPTIONAL) NIC TESTD AGND DGND ISINK
04 0 17245- Figure 4. Typical Connection Diagram
Table 5. Component List Product Reference Temperature Range Package Description Package Product No.
ADA4558 −40°C to +150°C 20-lead LFCSP CP-20-8 ADA4558 RBAT −40°C to +150°C 10 Ω, 250 mW resistor to meet ISO transients 0603 CRCW060310R0JNEAHP CREG, C1_8V −55°C to +125°C Murata, X7R, 16 V, 0.1 µF 0402 GCG155R71C104KA15D CIN −55°C to +125°C TDK, X7S, 100 V, 1 µF 0805 CGA4J3X7S2A105K Diode −55°C to +125°C 150 V, reverse protection diode SOD323 BAS21-03WE6327 CLIN −55°C to +125°C 220 pf, LIN capacitor 0402 GCM155R72A221KA37 Rev. 0 | Page 10 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION TYPICAL CONNECTION DIAGRAM EMC PERFORMANCE PCB LAYOUT GUIDELINES OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
