Preliminary Datasheet P9415 (IDT) - 6
| Hersteller | IDT |
| Beschreibung | Medium Power Wireless Transmitter/Receiver (TRx) |
| Seiten / Seite | 26 / 6 — Electrical Characteristics Table. Table 4. Device Characteristics. VRECT … |
| Revision | 20190829 |
| Dateiformat / Größe | PDF / 1.3 Mb |
| Dokumentensprache | Englisch |
Electrical Characteristics Table. Table 4. Device Characteristics. VRECT and Under-voltage Lock-out (Rx Mode)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

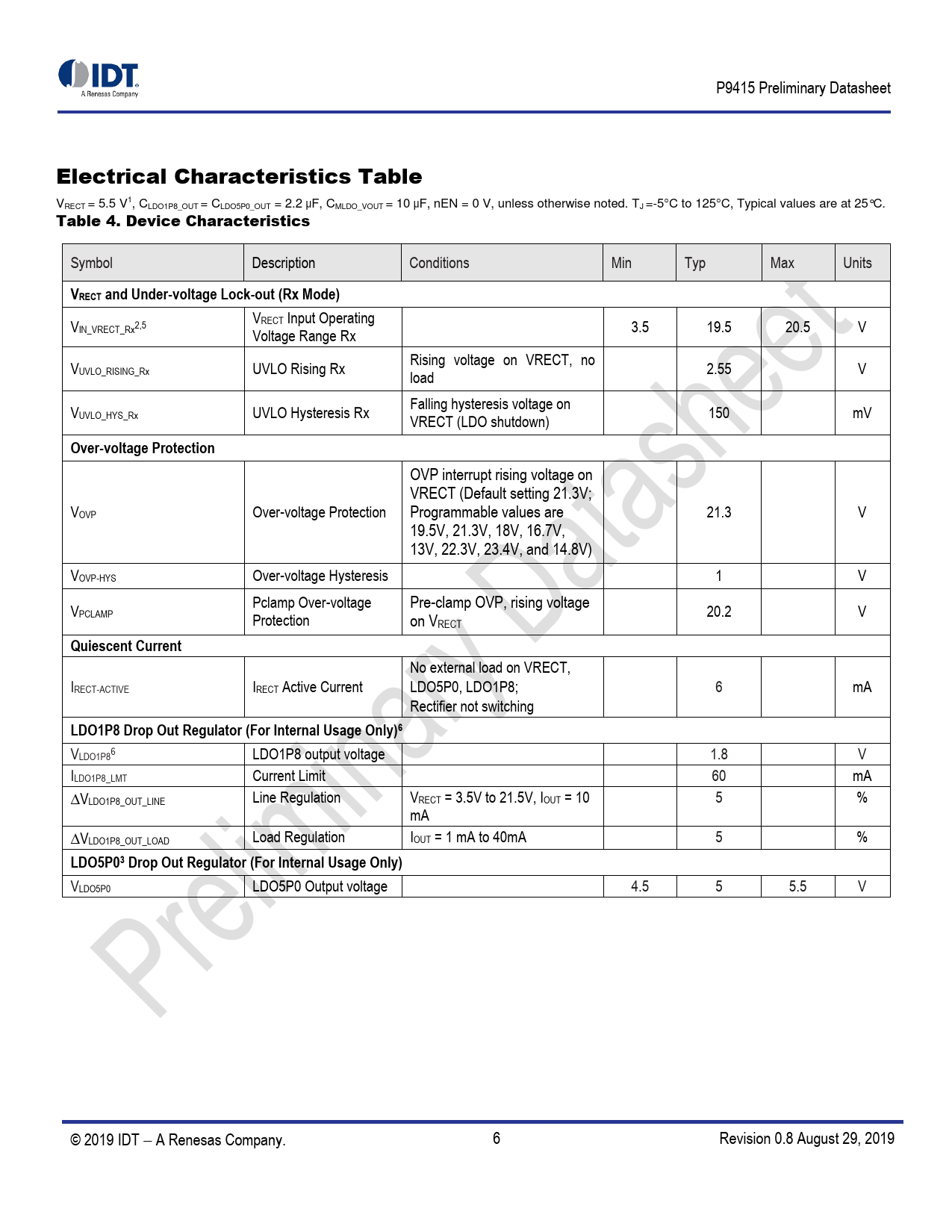

P9415 Preliminary Datasheet
Electrical Characteristics Table
VRECT = 5.5 V1, CLDO1P8_OUT = CLDO5P0_OUT = 2.2 μF, CMLDO_VOUT = 10 μF, nEN = 0 V, unless otherwise noted. TJ =-5C to 125C, Typical values are at 25°C.
Table 4. Device Characteristics
Symbol Description Conditions Min Typ Max Units
VRECT and Under-voltage Lock-out (Rx Mode)
V V RECT Input Operating IN_VRECT_Rx2,5 3.5 19.5 20.5 V Voltage Range Rx Rising voltage on VRECT, no VUVLO_RISING_Rx UVLO Rising Rx 2.55 V load Falling hysteresis voltage on VUVLO_HYS_Rx UVLO Hysteresis Rx 150 mV VRECT (LDO shutdown)
Over-voltage Protection
OVP interrupt rising voltage on VRECT (Default setting 21.3V; VOVP Over-voltage Protection Programmable values are 21.3 V 19.5V, 21.3V, 18V, 16.7V, 13V, 22.3V, 23.4V, and 14.8V) VOVP-HYS Over-voltage Hysteresis 1 V Pclamp Over-voltage Pre-clamp OVP, rising voltage VPCLAMP 20.2 V Protection on VRECT
Quiescent Current
No external load on VRECT, IRECT-ACTIVE IRECT Active Current LDO5P0, LDO1P8; 6 mA Rectifier not switching
LDO1P8 Drop Out Regulator (For Internal Usage Only)6
VLDO1P86 LDO1P8 output voltage 1.8 V ILDO1P8_LMT Current Limit 60 mA VLDO1P8_OUT_LINE Line Regulation VRECT = 3.5V to 21.5V, IOUT = 10 5 % mA VLDO1P8_OUT_LOAD Load Regulation IOUT = 1 mA to 40mA 5 %
LDO5P03 Drop Out Regulator (For Internal Usage Only)
VLDO5P0 LDO5P0 Output voltage 4.5 5 5.5 V © 2019 IDT A Renesas Company. 6 Revision 0.8 August 29, 2019
Electrical Characteristics Table
VRECT = 5.5 V1, CLDO1P8_OUT = CLDO5P0_OUT = 2.2 μF, CMLDO_VOUT = 10 μF, nEN = 0 V, unless otherwise noted. TJ =-5C to 125C, Typical values are at 25°C.
Table 4. Device Characteristics
Symbol Description Conditions Min Typ Max Units
VRECT and Under-voltage Lock-out (Rx Mode)
V V RECT Input Operating IN_VRECT_Rx2,5 3.5 19.5 20.5 V Voltage Range Rx Rising voltage on VRECT, no VUVLO_RISING_Rx UVLO Rising Rx 2.55 V load Falling hysteresis voltage on VUVLO_HYS_Rx UVLO Hysteresis Rx 150 mV VRECT (LDO shutdown)
Over-voltage Protection
OVP interrupt rising voltage on VRECT (Default setting 21.3V; VOVP Over-voltage Protection Programmable values are 21.3 V 19.5V, 21.3V, 18V, 16.7V, 13V, 22.3V, 23.4V, and 14.8V) VOVP-HYS Over-voltage Hysteresis 1 V Pclamp Over-voltage Pre-clamp OVP, rising voltage VPCLAMP 20.2 V Protection on VRECT
Quiescent Current
No external load on VRECT, IRECT-ACTIVE IRECT Active Current LDO5P0, LDO1P8; 6 mA Rectifier not switching
LDO1P8 Drop Out Regulator (For Internal Usage Only)6
VLDO1P86 LDO1P8 output voltage 1.8 V ILDO1P8_LMT Current Limit 60 mA VLDO1P8_OUT_LINE Line Regulation VRECT = 3.5V to 21.5V, IOUT = 10 5 % mA VLDO1P8_OUT_LOAD Load Regulation IOUT = 1 mA to 40mA 5 %
LDO5P03 Drop Out Regulator (For Internal Usage Only)
VLDO5P0 LDO5P0 Output voltage 4.5 5 5.5 V © 2019 IDT A Renesas Company. 6 Revision 0.8 August 29, 2019
