Photocoupler. LTV-8x6 series. 2. PACKAGE DIMENSIONS. 2.1 LTV-816 2.2 LTV-816M. 2.3 LTV-816S. Notes :
Modelllinie für dieses Datenblatt
Textversion des Dokuments

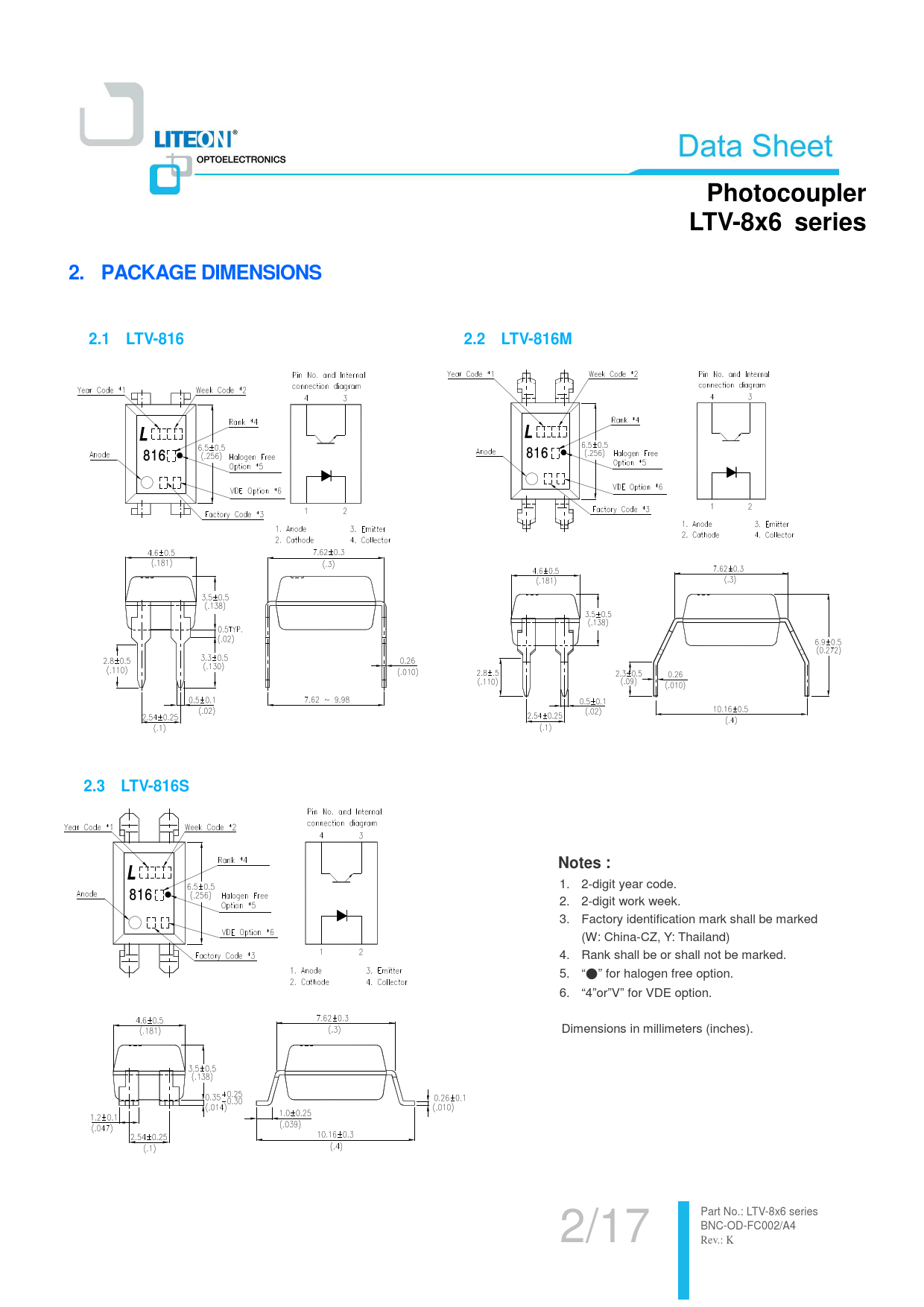

Photocoupler LTV-8x6 series 2. PACKAGE DIMENSIONS 2.1 LTV-816 2.2 LTV-816M 2.3 LTV-816S Notes :
1. 2-digit year code. 2. 2-digit work week. 3. Factory identification mark shall be marked (W: China-CZ, Y: Thailand) 4. Rank shall be or shall not be marked. 5. “●” for halogen free option. 6. “4”or”V” for VDE option. Dimensions in millimeters (inches). 2/17 Part No.: LTV -8x6 serie s BNC-OD-FC002/A4 Rev.: K
1. 2-digit year code. 2. 2-digit work week. 3. Factory identification mark shall be marked (W: China-CZ, Y: Thailand) 4. Rank shall be or shall not be marked. 5. “●” for halogen free option. 6. “4”or”V” for VDE option. Dimensions in millimeters (inches). 2/17 Part No.: LTV -8x6 serie s BNC-OD-FC002/A4 Rev.: K
