Datasheet LTV-814, LTV-824, LTV-844 (Lite-On) - 7

HerstellerLite-On
BeschreibungPhotocoupler LTV-8X4 series DIP16 Package
Seiten / Seite17 / 7 — Photocoupler. LTV-8X4 series. 3.4 LTV-814S-TP. Description. Symbol. …
Dateiformat / GrößePDF / 851 Kb
DokumentenspracheEnglisch

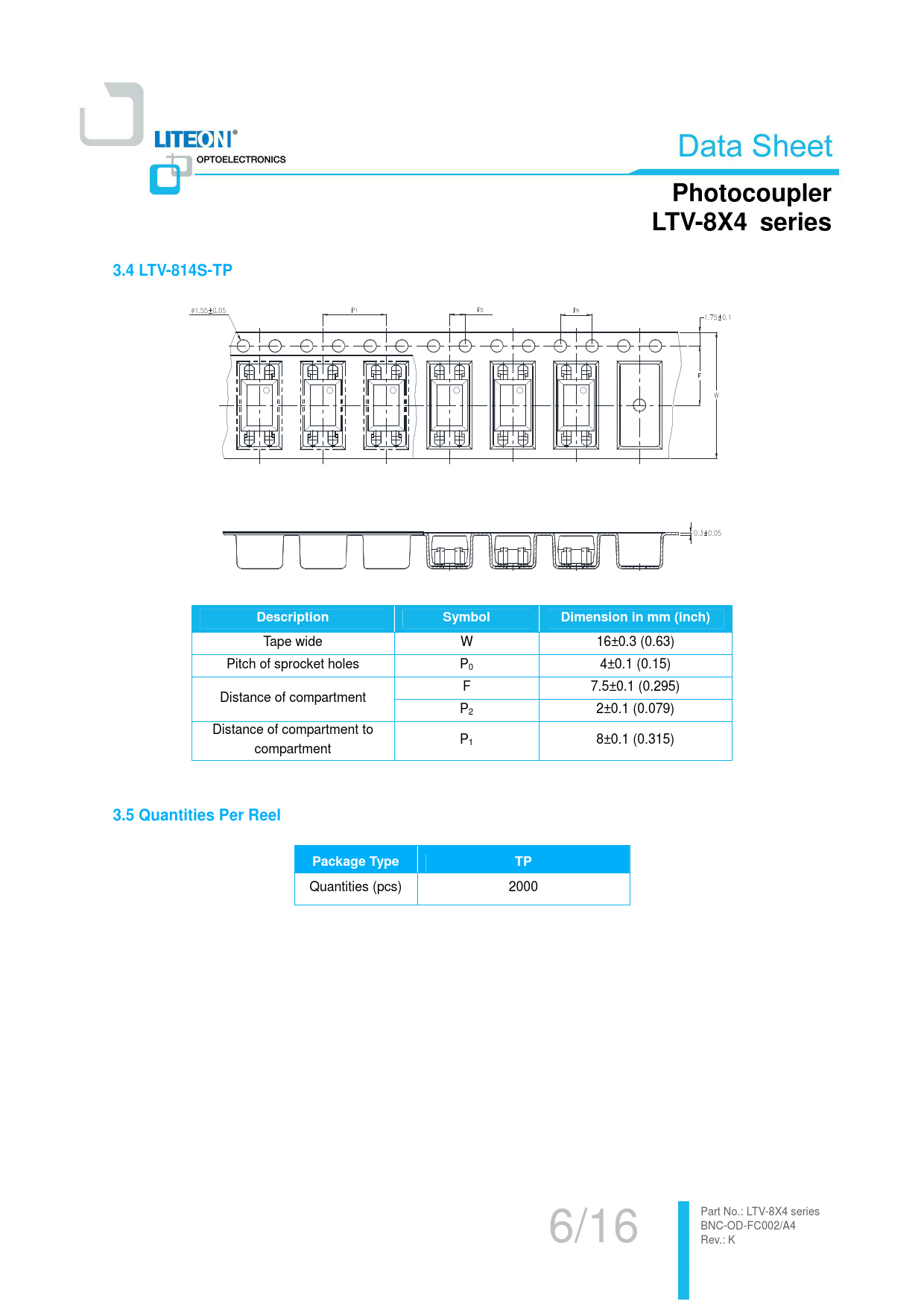

Photocoupler. LTV-8X4 series. 3.4 LTV-814S-TP. Description. Symbol. Dimension in mm (inch). 3.5 Quantities Per Reel. Package Type

Photocoupler LTV-8X4 series 3.4 LTV-814S-TP Description Symbol Dimension in mm (inch) 3.5 Quantities Per Reel Package Type

Modelllinie für dieses Datenblatt

Textversion des Dokuments

Photocoupler LTV-8X4 series 3.4 LTV-814S-TP Description Symbol Dimension in mm (inch)
Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15) F 7.5±0.1 (0.295) Distance of compartment P 2 2±0.1 (0.079) Distance of compartment to P1 8±0.1 (0.315) compartment
3.5 Quantities Per Reel Package Type TP
Quantities (pcs) 2000 6/16 P art N o.: L TV-8 X4 s eries BNC-OD-FC002/A4 Rev.: K
