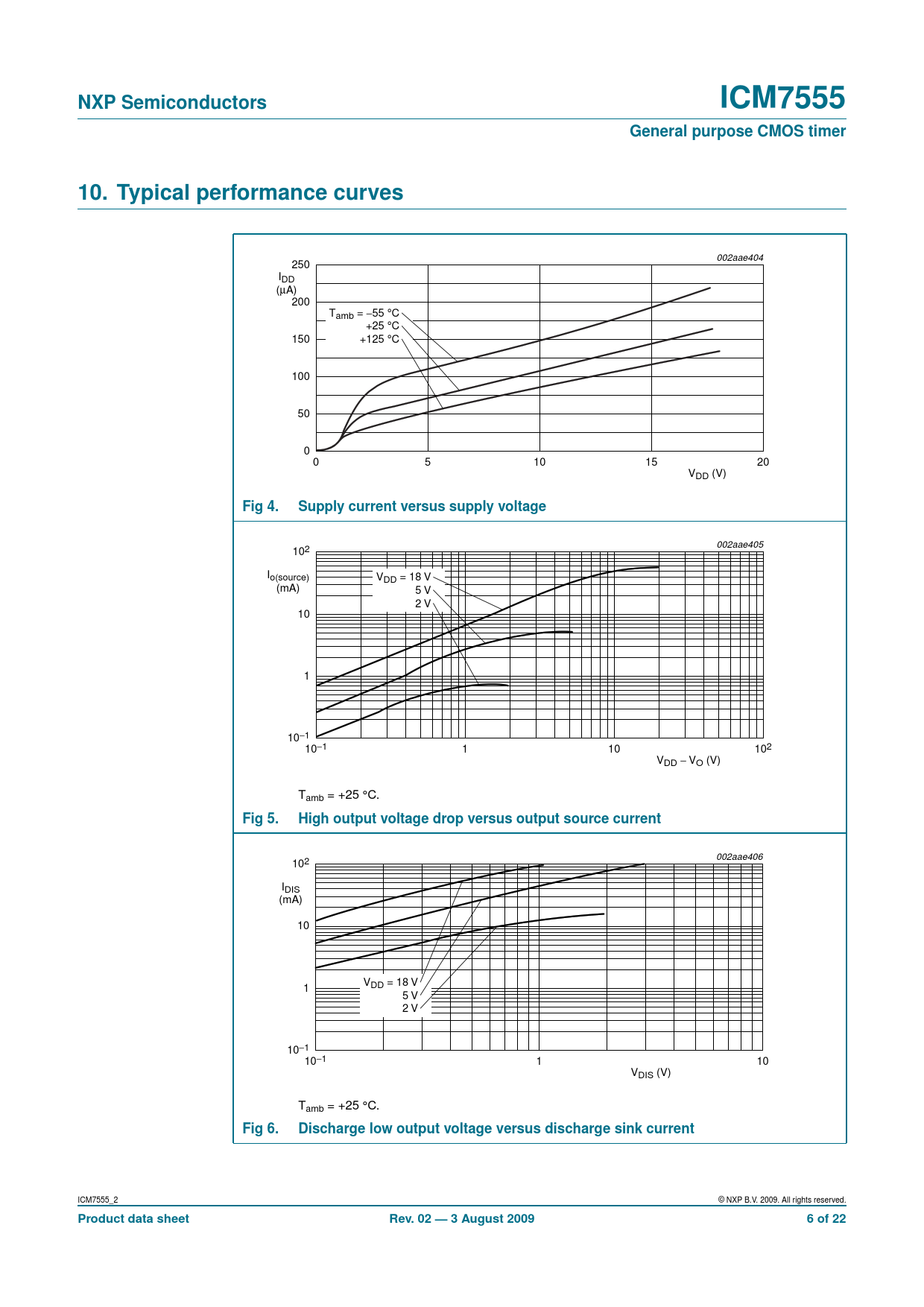

NXP Semiconductors ICM7555 General purpose CMOS timer 10. Typical performance curves
002aae404 250 IDD (µA) 200 Tamb = −55 °C +25 °C 150 +125 °C 100 50 0 0 5 10 15 20 VDD (V)
Fig 4. Supply current versus supply voltage
002aae405 102 Io(source) VDD = 18 V (mA) 5 V 2 V 10 1 10−1 10−1 1 102 10 VDD − VO (V) Tamb = +25 °C.
Fig 5. High output voltage drop versus output source current
002aae406 102 IDIS (mA) 10 V 1 DD = 18 V 5 V 2 V 10−1 10−1 1 10 VDIS (V) Tamb = +25 °C.
Fig 6. Discharge low output voltage versus discharge sink current
ICM7555_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 3 August 2009 6 of 22
