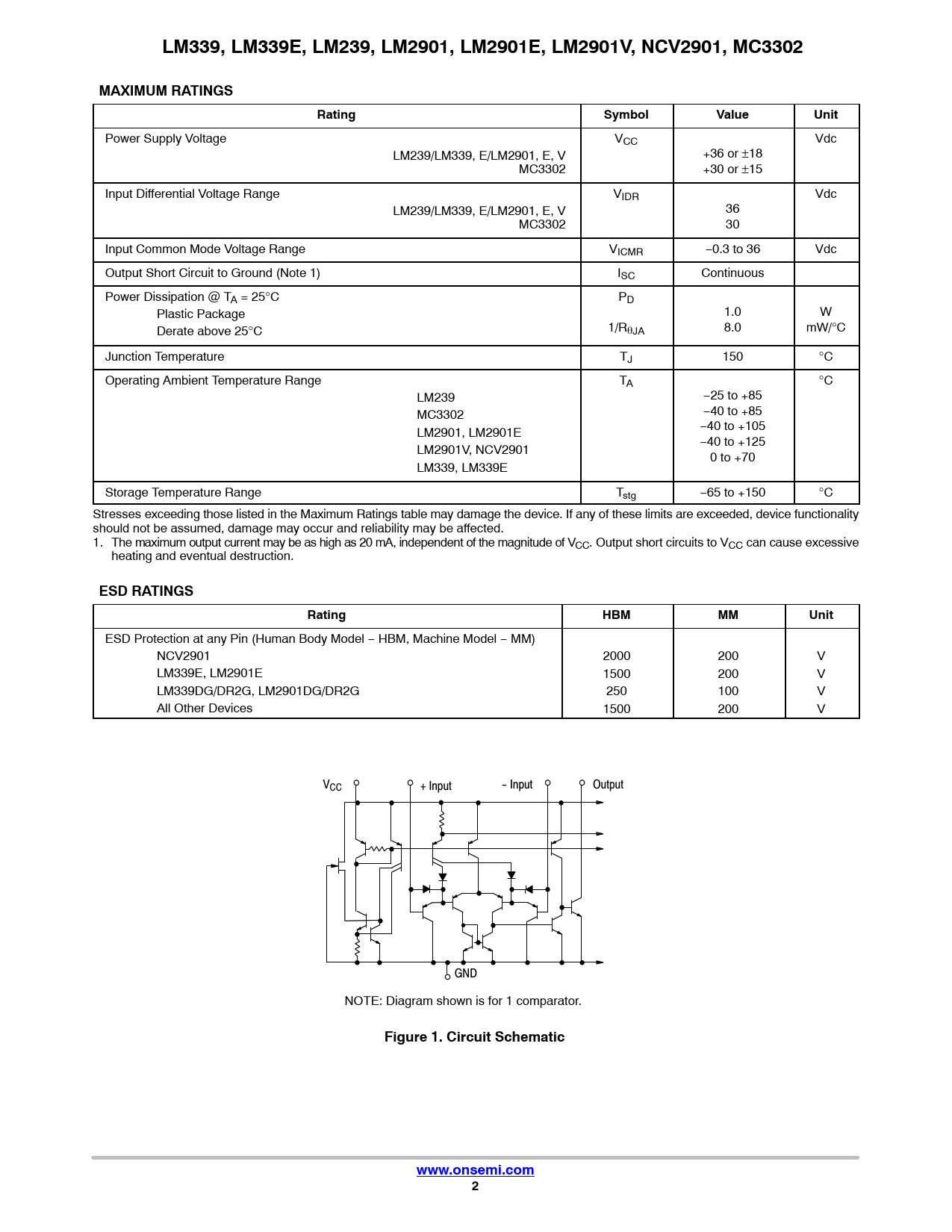

LM339, LM339E, LM239, LM2901, LM2901E, LM2901V, NCV2901, MC3302 MAXIMUM RATINGS Rating Symbol Value Unit
Power Supply Voltage VCC Vdc LM239/LM339, E/LM2901, E, V +36 or ±18 MC3302 +30 or ±15 Input Differential Voltage Range VIDR Vdc LM239/LM339, E/LM2901, E, V 36 MC3302 30 Input Common Mode Voltage Range VICMR −0.3 to 36 Vdc Output Short Circuit to Ground (Note 1) ISC Continuous Power Dissipation @ TA = 25°C PD Plastic Package 1.0 W Derate above 25°C 1/RqJA 8.0 mW/°C Junction Temperature TJ 150 °C Operating Ambient Temperature Range TA °C LM239 −25 to +85 MC3302 −40 to +85 LM2901, LM2901E −40 to +105 −40 to +125 LM2901V, NCV2901 0 to +70 LM339, LM339E Storage Temperature Range Tstg −65 to +150 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. The maximum output current may be as high as 20 mA, independent of the magnitude of VCC. Output short circuits to VCC can cause excessive heating and eventual destruction.
ESD RATINGS Rating HBM MM Unit
ESD Protection at any Pin (Human Body Model − HBM, Machine Model − MM) NCV2901 2000 200 V LM339E, LM2901E 1500 200 V LM339DG/DR2G, LM2901DG/DR2G 250 100 V All Other Devices 1500 200 V VCC + Input - Input Output GND NOTE: Diagram shown is for 1 comparator.
Figure 1. Circuit Schematic www.onsemi.com 2
