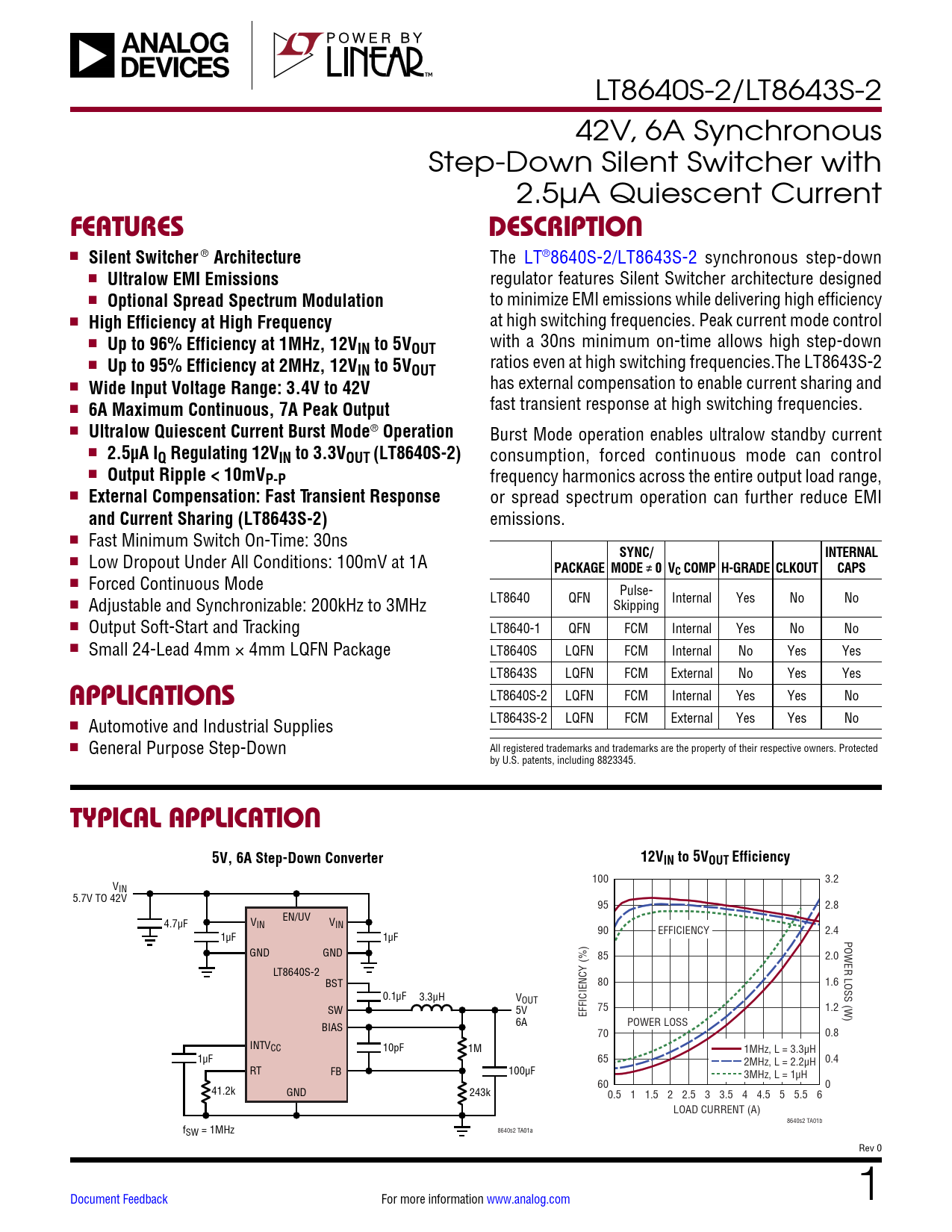

LT8640S-2/LT8643S-2 42V, 6A Synchronous Step-Down Silent Switcher with 2.5µA Quiescent Current FEATURESDESCRIPTION n Silent Switcher ® Architecture The LT®8640S-2/LT8643S-2 synchronous step-down n Ultralow EMI Emissions regulator features Silent Switcher architecture designed n Optional Spread Spectrum Modulation to minimize EMI emissions while delivering high efficiency n High Efficiency at High Frequency at high switching frequencies. Peak current mode control n Up to 96% Efficiency at 1MHz, 12V with a 30ns minimum on-time allows high step-down IN to 5VOUT n Up to 95% Efficiency at 2MHz, 12V ratios even at high switching frequencies.The LT8643S-2 IN to 5VOUT n has external compensation to enable current sharing and Wide Input Voltage Range: 3.4V to 42V n fast transient response at high switching frequencies. 6A Maximum Continuous, 7A Peak Output n Ultralow Quiescent Current Burst Mode ® Operation Burst Mode operation enables ultralow standby current n 2.5µA IQ Regulating 12VIN to 3.3VOUT (LT8640S-2) consumption, forced continuous mode can control n Output Ripple < 10mVP-P frequency harmonics across the entire output load range, n External Compensation: Fast Transient Response or spread spectrum operation can further reduce EMI and Current Sharing (LT8643S-2) emissions. n Fast Minimum Switch On-Time: 30ns SYNC/INTERNAL n Low Dropout Under All Conditions: 100mV at 1A PACKAGE MODE ≠ 0 VC COMP H-GRADE CLKOUT CAPS n Forced Continuous Mode LT8640 QFN Pulse- n Adjustable and Synchronizable: 200kHz to 3MHz Skipping Internal Yes No No n Output Soft-Start and Tracking LT8640-1 QFN FCM Internal Yes No No n Small 24-Lead 4mm × 4mm LQFN Package LT8640S LQFN FCM Internal No Yes Yes LT8643S LQFN FCM External No Yes Yes LT8640S-2 LQFN FCM Internal Yes Yes No APPLICATIONS LT8643S-2 LQFN FCM External Yes Yes No n Automotive and Industrial Supplies n General Purpose Step-Down All registered trademarks and trademarks are the property of their respective owners. Protected by U.S. patents, including 8823345. TYPICAL APPLICATION5V, 6A Step-Down Converter12VIN to 5VOUT Efficiency 100 3.2 VIN 5.7V TO 42V 95 2.8 4.7µF V EN/UV IN VIN 90 EFFICIENCY 2.4 1µF 1µF POWER LOSS (W) GND GND 85 2.0 LT8640S-2 BST 80 1.6 0.1µF 3.3µH VOUT SW 5V 75 1.2 EFFICIENCY (%) 6A POWER LOSS BIAS 70 0.8 INTVCC 10pF 1M 1MHz, L = 3.3µH 1µF 65 2MHz, L = 2.2µH 0.4 RT FB 100µF 3MHz, L = 1µH 60 0 41.2k GND 243k 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 LOAD CURRENT (A) 8640s2 TA01b f 8640s2 TA01a SW = 1MHz Rev 0 Document Feedback For more information www.analog.com 1 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION E LECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS BLOCK DIAGRAM OPERATION APPLICATIONS INFORMATION TYPICAL APPLICATIONS PACKAGE DESCRIPTION TYPICAL APPLICATIONS RELATED PARTS
