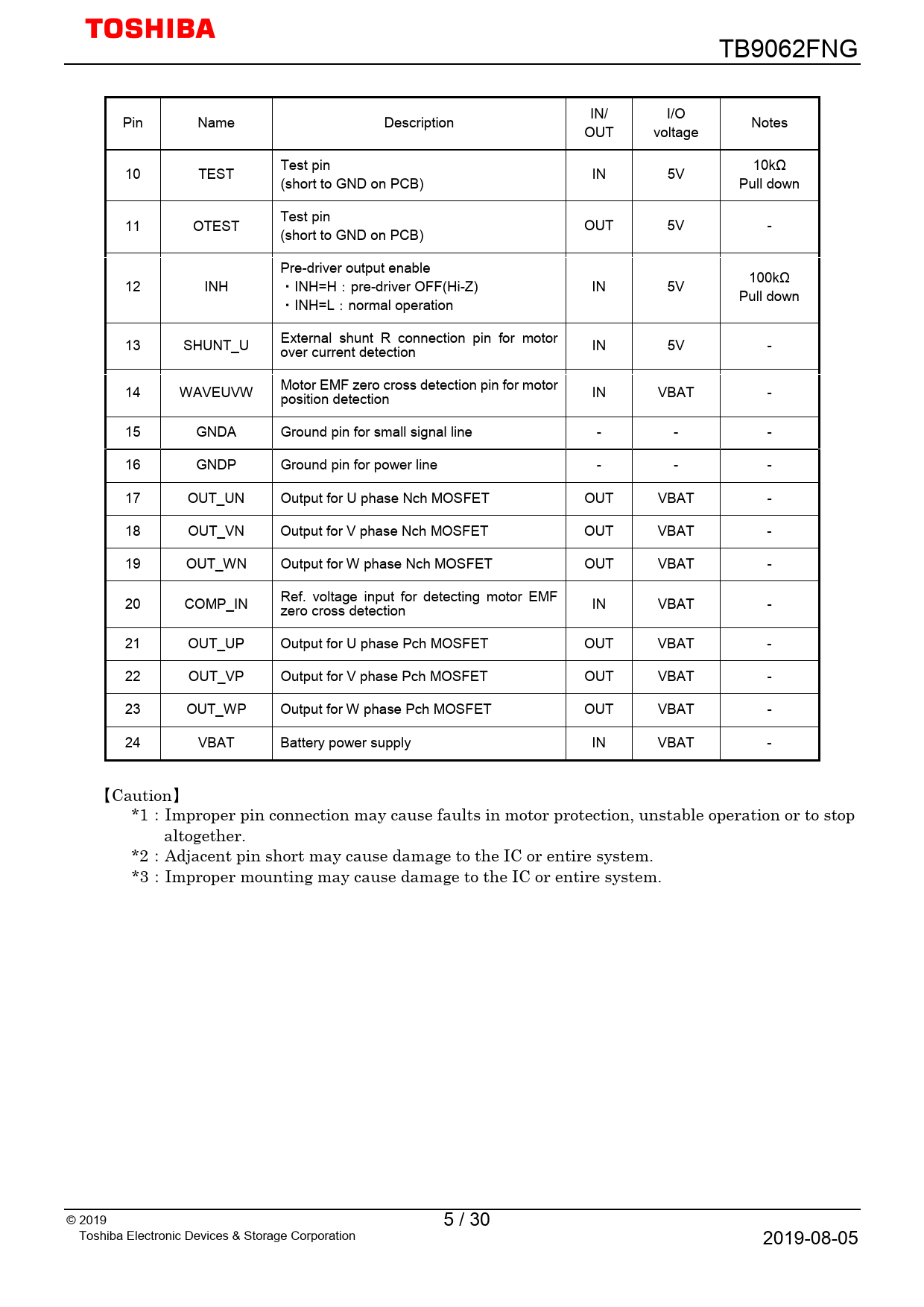

Datasheet TB9062FNG (Toshiba) - 5

TB9062FNG IN/ I/O Pin Name Description Notes OUT voltage Test pin 10kΩ 10 TEST IN 5V (short to GND on PCB) Pull down Test pin 11 OTEST OUT 5V - (short to GND on PCB) Pre-driver output enable 100kΩ 12 INH ・INH=H：pre-driver OFF(Hi-Z) IN 5V Pull down ・INH=L：normal operation 13 SHUNT_U External shunt R connection pin for motor over current detection IN 5V - 14 WAVEUVW Motor EMF zero cross detection pin for motor position detection IN VBAT - 15 GNDA Ground pin for small signal line - - - 16 GNDP Ground pin for power line - - - 17 OUT_UN Output for U phase Nch MOSFET OUT VBAT - 18 OUT_VN Output for V phase Nch MOSFET OUT VBAT - 19 OUT_WN Output for W phase Nch MOSFET OUT VBAT - 20 COMP_IN Ref. voltage input for detecting motor EMF zero cross detection IN VBAT - 21 OUT_UP Output for U phase Pch MOSFET OUT VBAT - 22 OUT_VP Output for V phase Pch MOSFET OUT VBAT - 23 OUT_WP Output for W phase Pch MOSFET OUT VBAT - 24 VBAT Battery power supply IN VBAT - 【Caution】 *1：Improper pin connection may cause faults in motor protection, unstable operation or to stop altogether. *2：Adjacent pin short may cause damage to the IC or entire system. *3：Improper mounting may cause damage to the IC or entire system. © 2019 5 / 30 Toshiba Electronic Devices & Storage Corporation 2019-08-05
