Datasheet KA2206B (Samsung) - 2
| Hersteller | Samsung |
| Beschreibung | 2.3W DUAL AUDIO POWER AMP |
| Seiten / Seite | 6 / 2 — KA2206B 2.3W DUAL AUDIO POWER AMP. ABSOLUTE MAXIMUM RATINGS. … |
| Dateiformat / Größe | PDF / 129 Kb |
| Dokumentensprache | Englisch |

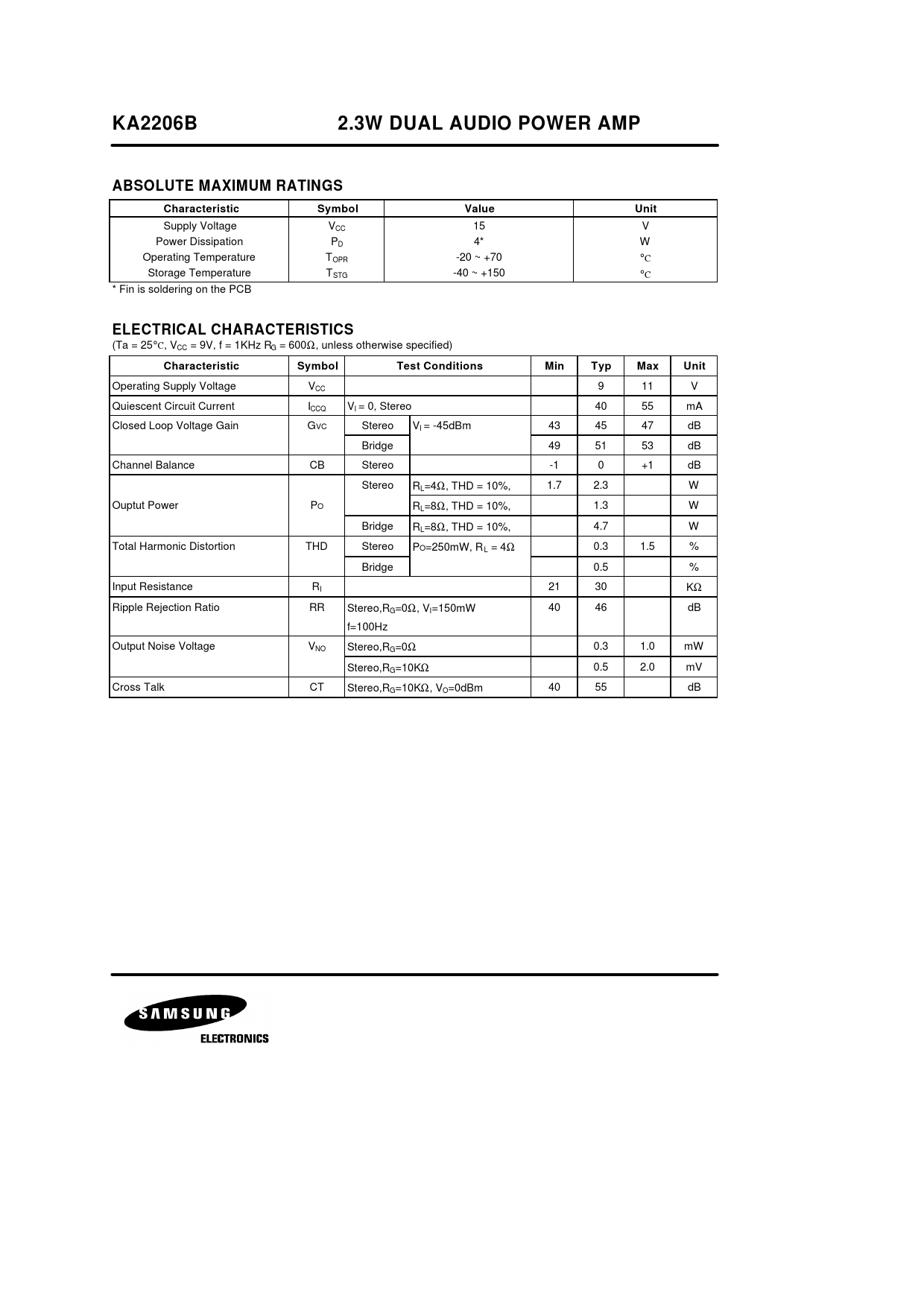

KA2206B 2.3W DUAL AUDIO POWER AMP. ABSOLUTE MAXIMUM RATINGS. Characteristic. Symbol. Value. Unit. ELECTRICAL CHARACTERISTICS
Modelllinie für dieses Datenblatt
Textversion des Dokuments
KA2206B 2.3W DUAL AUDIO POWER AMP ABSOLUTE MAXIMUM RATINGS Characteristic Symbol Value Unit
Supply Voltage VCC 15 V Power Dissipation PD 4* W Operating Temperature TOPR -20 ~ +70 °C Storage Temperature TSTG -40 ~ +150 °C * Fin is soldering on the PCB
ELECTRICAL CHARACTERISTICS
(Ta = 25°C, VCC = 9V, f = 1KHz RG = 600Ω, unless otherwise specified)
Characteristic Symbol Test Conditions Min Typ Max Unit
Operating Supply Voltage VCC 9 11 V Quiescent Circuit Current ICCQ VI = 0, Stereo 40 55 mA Closed Loop Voltage Gain GVC Stereo VI = -45dBm 43 45 47 dB Bridge 49 51 53 dB Channel Balance CB Stereo -1 0 +1 dB Stereo RL=4Ω, THD = 10%, 1.7 2.3 W Ouptut Power PO RL=8Ω, THD = 10%, 1.3 W Bridge RL=8Ω, THD = 10%, 4.7 W Total Harmonic Distortion THD Stereo PO=250mW, RL = 4Ω 0.3 1.5 % Bridge 0.5 % Input Resistance RI 21 30 KΩ Ripple Rejection Ratio RR Stereo,RG=0Ω, VI=150mW 40 46 dB f=100Hz Output Noise Voltage VNO Stereo,RG=0Ω 0.3 1.0 mW Stereo,RG=10KΩ 0.5 2.0 mV Cross Talk CT Stereo,RG=10KΩ, VO=0dBm 40 55 dB Document Outline Features Absolute Maximum Ratings Block Diagram Application Circuit Package Dimension
