Datasheet for Consumer R1540x (Ricoh) - 2
| Hersteller | Ricoh |
| Beschreibung | High Noise Immunity 42 V Input Voltage 70 mA Voltage Tracker for Consumer Applications |
| Seiten / Seite | 16 / 2 — R1540x. SELECTION GUIDE. Selection Guide. Quantity per. Product Name. … |
| Dateiformat / Größe | PDF / 901 Kb |
| Dokumentensprache | Englisch |

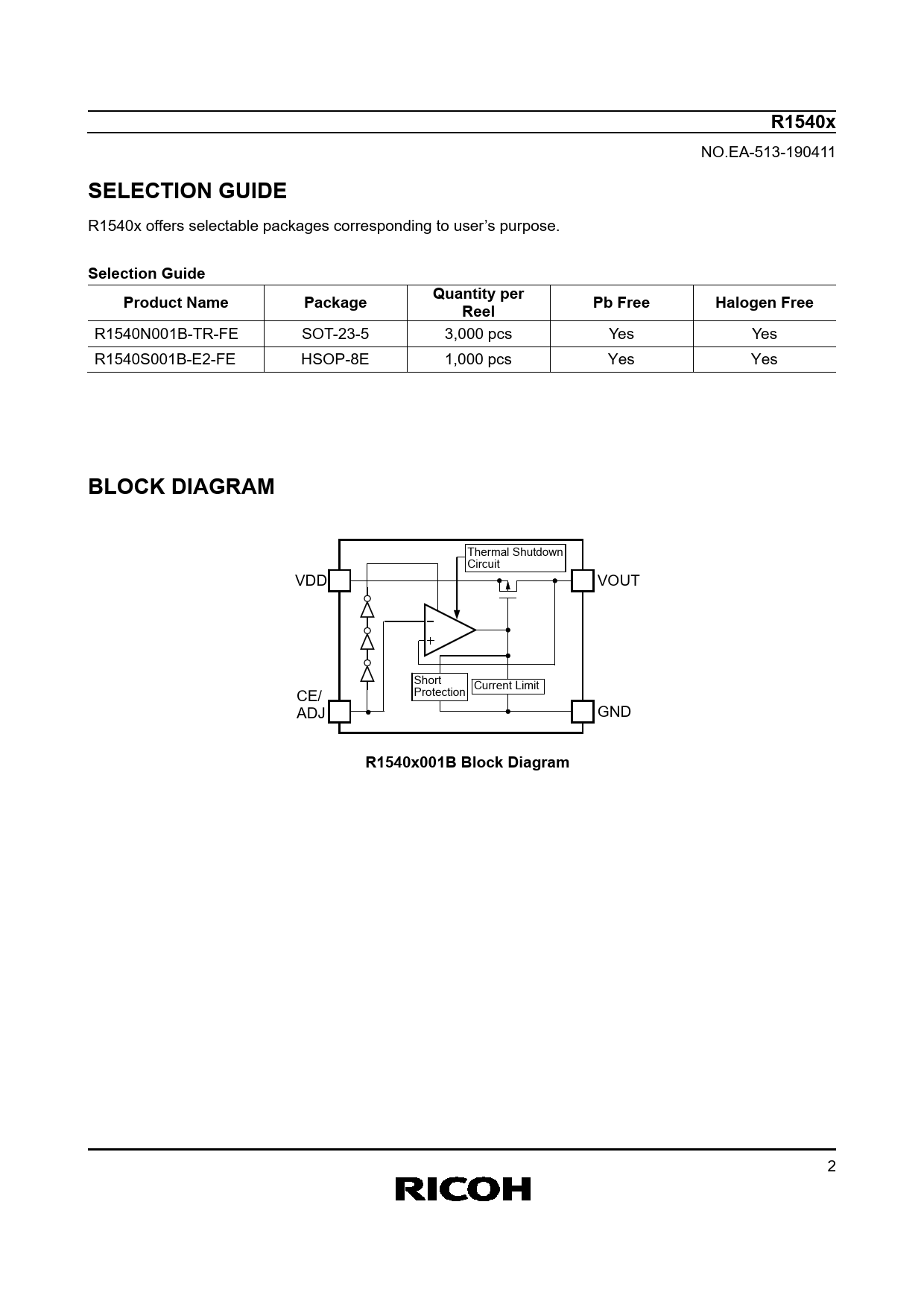

R1540x. SELECTION GUIDE. Selection Guide. Quantity per. Product Name. Package. Pb Free. Halogen Free. Reel. BLOCK DIAGRAM
Modelllinie für dieses Datenblatt
Textversion des Dokuments
R1540x
NO.EA-513-190411
SELECTION GUIDE
R1540x offers selectable packages corresponding to user’s purpose.
Selection Guide Quantity per Product Name Package Pb Free Halogen Free Reel
R1540N001B-TR-FE SOT-23-5 3,000 pcs Yes Yes R1540S001B-E2-FE HSOP-8E 1,000 pcs Yes Yes
BLOCK DIAGRAM
Thermal Shutdown Circuit VDD VOUT Short Current Limit CE/ Protection ADJ GND
R1540x001B Block Diagram
2
