AUTOMOTIVE, 125°C OPERATION, 36 V INPUT, 1000 mA VOLTAGE REGULATOR. S-19214 Series. Pin Configurations. TO-252-5S(A)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AUTOMOTIVE, 125°C OPERATION, 36 V INPUT, 1000 mA VOLTAGE REGULATOR
Rev.1.1_00

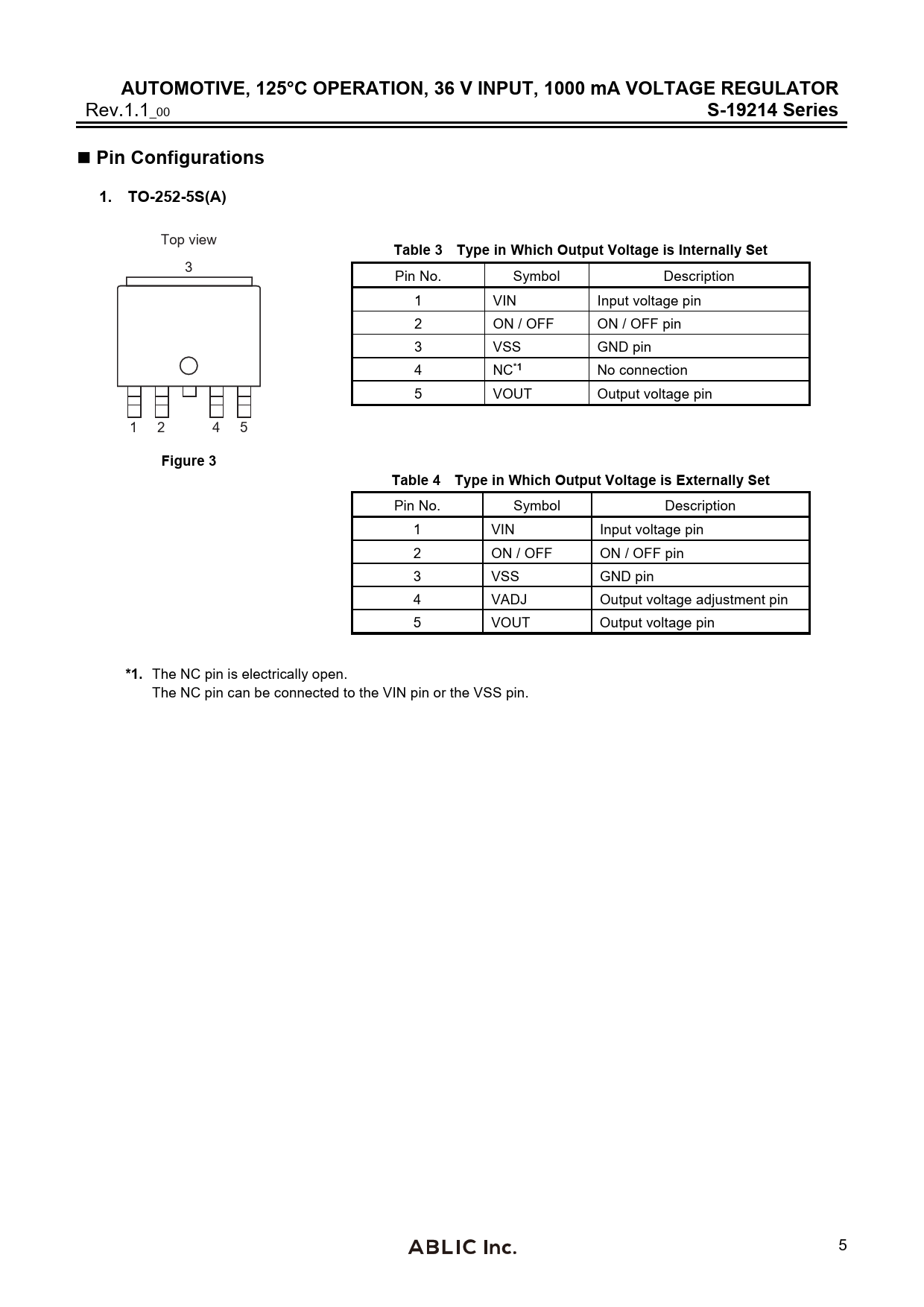

S-19214 Series Pin Configurations 1. TO-252-5S(A)
Top view
Table 3 Type in Which Output Voltage is Internally Set
3 Pin No. Symbol Description 1 VIN Input voltage pin 2 ON / OFF ON / OFF pin 3 VSS GND pin 4 NC
*1
No connection 5 VOUT Output voltage pin 1 2 4 5
Figure 3 Table 4 Type in Which Output Voltage is Externally Set
Pin No. Symbol Description 1 VIN Input voltage pin 2 ON / OFF ON / OFF pin 3 VSS GND pin 4 VADJ Output voltage adjustment pin 5 VOUT Output voltage pin
*1.
The NC pin is electrically open. The NC pin can be connected to the VIN pin or the VSS pin. 5
Rev.1.1_00
S-19214 Series Pin Configurations 1. TO-252-5S(A)
Top view
Table 3 Type in Which Output Voltage is Internally Set
3 Pin No. Symbol Description 1 VIN Input voltage pin 2 ON / OFF ON / OFF pin 3 VSS GND pin 4 NC
*1
No connection 5 VOUT Output voltage pin 1 2 4 5
Figure 3 Table 4 Type in Which Output Voltage is Externally Set
Pin No. Symbol Description 1 VIN Input voltage pin 2 ON / OFF ON / OFF pin 3 VSS GND pin 4 VADJ Output voltage adjustment pin 5 VOUT Output voltage pin
*1.
The NC pin is electrically open. The NC pin can be connected to the VIN pin or the VSS pin. 5
