link to page 10 link to page 10 link to page 10 link to page 10 MAX30208 ±0.1°C Accurate, I2C Digital Temperature Sensor

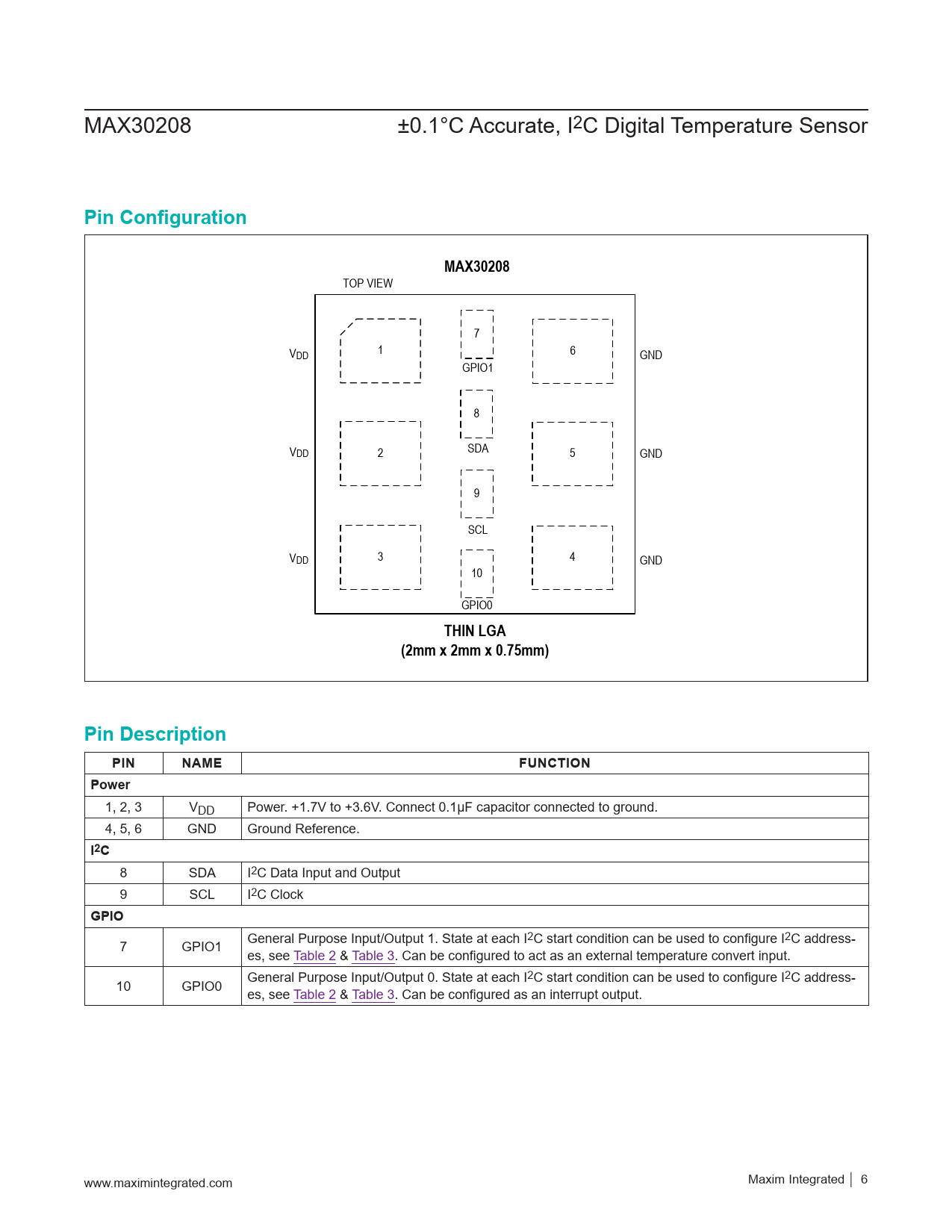

Pin Configuration MAX30208
TOP VIEW 7 1 V 6 DD GND GPIO1 8 VDD 2 SDA 5 GND 9 SCL VDD 3 4 GND 10 GPIO0
THIN LGA (2mm x 2mm x 0.75mm) Pin Description PIN NAME FUNCTION Power
1, 2, 3 VDD Power. +1.7V to +3.6V. Connect 0.1μF capacitor connected to ground. 4, 5, 6 GND Ground Reference.
I2C
8 SDA I2C Data Input and Output 9 SCL I2C Clock
GPIO
7 GPIO1 General Purpose Input/Output 1. State at each I2C start condition can be used to configure I2C address- es, see Table 2 & Table 3. Can be configured to act as an external temperature convert input. 10 GPIO0 General Purpose Input/Output 0. State at each I2C start condition can be used to configure I2C address- es, see Table 2 & Table 3. Can be configured as an interrupt output. www.maximintegrated.com Maxim Integrated │ 6
