VLMU35CL..-280-120. SOLDERING PROFILE. FINAL PACKING. RECOMMENDED METHOD OF STORAGE. BAR CODE PRODUCT LABEL. 168 h. DRY PACKING
Modelllinie für dieses Datenblatt
Textversion des Dokuments

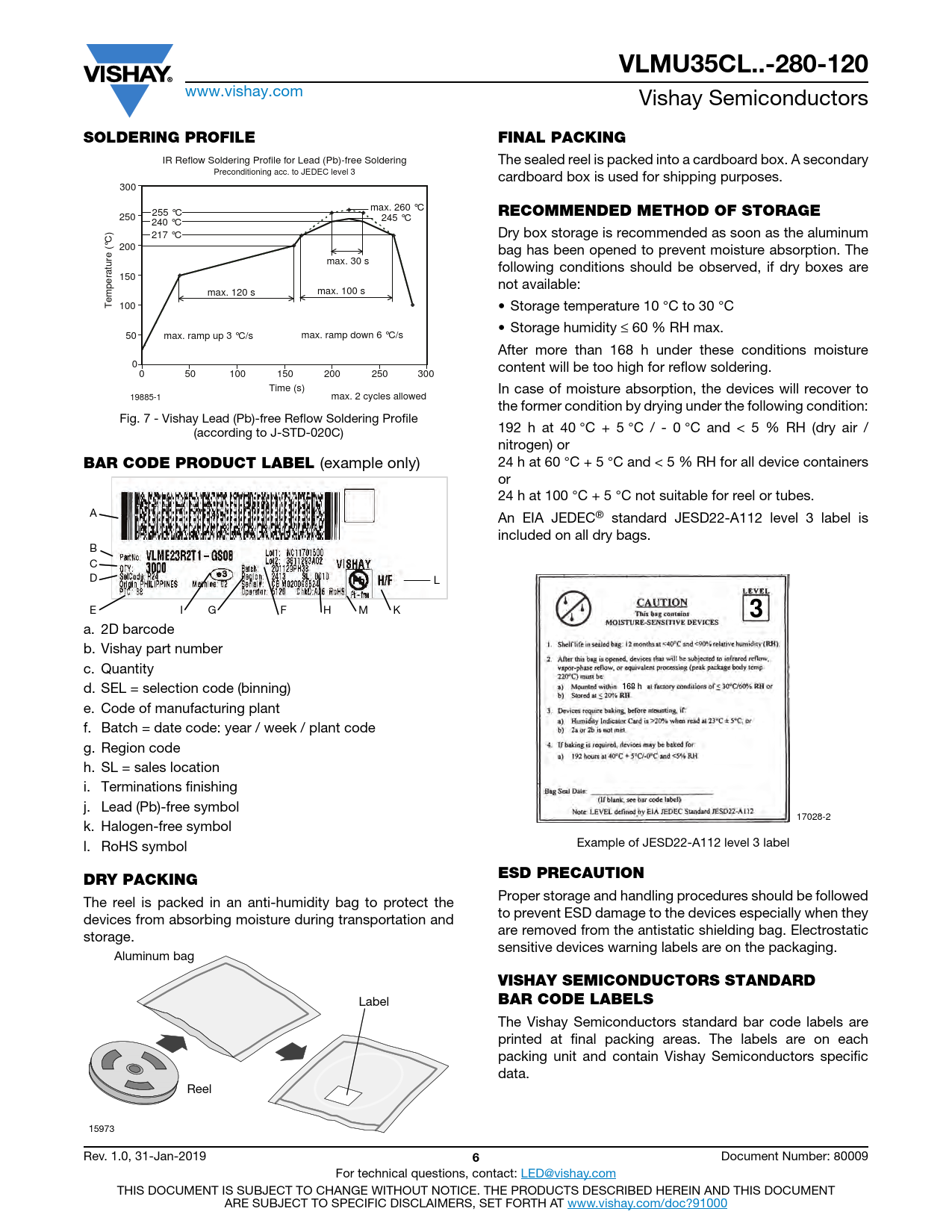

VLMU35CL..-280-120
www.vishay.com Vishay Semiconductors
SOLDERING PROFILE FINAL PACKING
IR Reflow Soldering Profile for Lead (Pb)-free Soldering The sealed reel is packed into a cardboard box. A secondary Preconditioning acc. to JEDEC level 3 cardboard box is used for shipping purposes. 300 max. 260 °C 250 255 °C
RECOMMENDED METHOD OF STORAGE
245 °C 240 °C 217 °C Dry box storage is recommended as soon as the aluminum 200 bag has been opened to prevent moisture absorption. The max. 30 s following conditions should be observed, if dry boxes are 150 not available: max. 120 s max. 100 s Temperature (°C) 100 • Storage temperature 10 °C to 30 °C • Storage humidity ≤ 60 % RH max. 50 max. ramp up 3 °C/s max. ramp down 6 °C/s After more than 168 h under these conditions moisture 0 content will be too high for reflow soldering. 0 50 100 150 200 250 300 Time (s) In case of moisture absorption, the devices will recover to 19885-1 max. 2 cycles allowed the former condition by drying under the following condition: Fig. 7 - Vishay Lead (Pb)-free Reflow Soldering Profile (according to J-STD-020C) 192 h at 40 °C + 5 °C / - 0 °C and < 5 % RH (dry air / nitrogen) or
BAR CODE PRODUCT LABEL
(example only) 24 h at 60 °C + 5 °C and < 5 % RH for all device containers or 24 h at 100 °C + 5 °C not suitable for reel or tubes. A An EIA JEDEC® standard JESD22-A112 level 3 label is included on all dry bags. B C D L E I G F H M K
3
a. 2D barcode b. Vishay part number c. Quantity d. SEL = selection code (binning)
168 h
e. Code of manufacturing plant f. Batch = date code: year / week / plant code g. Region code h. SL = sales location i. Terminations finishing j. Lead (Pb)-free symbol 17028-2 k. Halogen-free symbol l. RoHS symbol Example of JESD22-A112 level 3 label
DRY PACKING ESD PRECAUTION
Proper storage and handling procedures should be followed The reel is packed in an anti-humidity bag to protect the to prevent ESD damage to the devices especially when they devices from absorbing moisture during transportation and are removed from the antistatic shielding bag. Electrostatic storage. sensitive devices warning labels are on the packaging. Aluminum bag
VISHAY SEMICONDUCTORS STANDARD
Label
BAR CODE LABELS
The Vishay Semiconductors standard bar code labels are printed at final packing areas. The labels are on each packing unit and contain Vishay Semiconductors specific data. Reel 15973 Rev. 1.0, 31-Jan-2019
6
Document Number: 80009 For technical questions, contact: LED@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
