Datasheet SLBA (Songle Relay)

HerstellerSongle Relay
BeschreibungAutomotive Relay 30A/40A
Seiten / Seite3 / 1 — SLBA. Series. AUTOMOTIVE. RELAY. 30A/40A. Features. 26MAX. AX. ·. 21M. …
Dateiformat / GrößePDF / 6.1 Mb
DokumentenspracheEnglisch

SLBA. Series. AUTOMOTIVE. RELAY. 30A/40A. Features. 26MAX. AX. ·. 21M. 30A/40. switching. capability. ·Ambient. temperature:+85℃/+125℃. X. A. M. 1. ·Low. coil

Datasheet SLBA Songle Relay

Modelllinie für dieses Datenblatt

Textversion des Dokuments

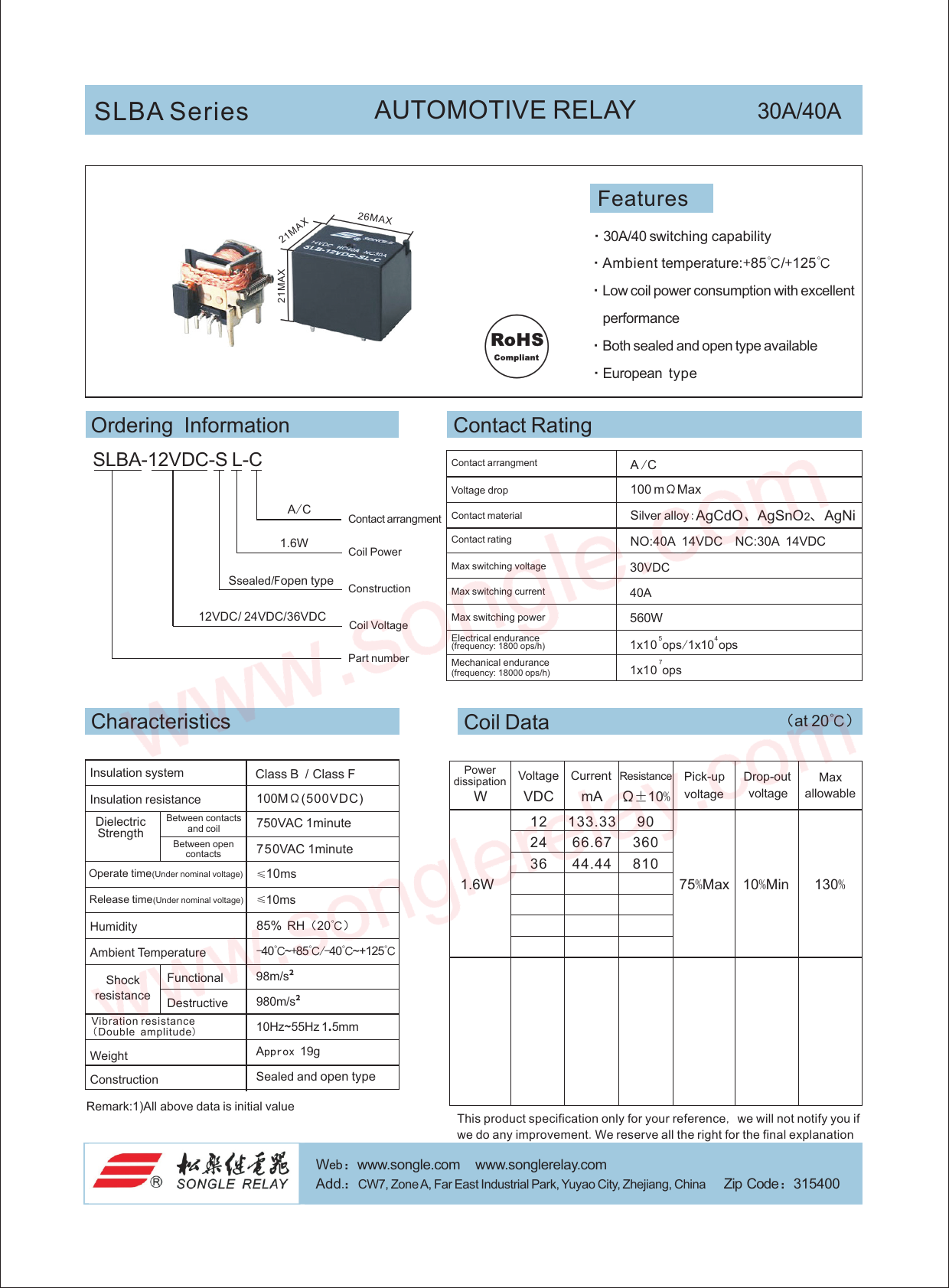

SLBA Series AUTOMOTIVE RELAY 30A/40A Features 26MAX AX · 21M 30A/40 switching capability ·Ambient temperature:+85℃/+125℃ X A M 1 ·Low coil power consumption with excellent 2 performance ·Both sealed and open type available ·European type Ordering Information Contact Rating SLBA-12VDC-S L-C Contact arrangment A /C Voltage drop 100 mΩMax A/C Contact material Silver alloy: Contact arrangment AgCdO、AgSnO2、AgNi 1.6W Contact rating NO:40A 14VDC NC:30A 14VDC Coil Power Max switching voltage 30VDC Ssealed/Fopen type Construction Max switching current 40A 12VDC/ 24VDC/36VDC Max switching power 560W Coil Voltage Electrical endurance 5 4 (frequency: 1800 ops/h) 1x10 ops/1x10 ops Part number 7 endurance Mechanical (frequency: 18000 ops/h) 1x10 ops Characteristics Coil Data ( 20 at ℃) Insulation system Class B / Class F Power Voltage Current Resistance dissipation Pick-up Drop-out Max Insulation resistance 100MΩ(500VDC) W VDC mA ± Ω 10% voltage voltage allowable Dielectric Between contacts 750VAC 1minute 12 133.33 90 Strength and coil Between open 24 66.67 360 750VAC 1minute contacts 36 44.44 810 Operate time(Under nominal voltage) ≤10ms 1.6W 75%Max 10%Min 130% Release time(Under nominal voltage) ≤10ms Humidity 85% RH(20℃) Ambient Temperature -40℃~+85℃/-40℃~+125℃ Functional 98m/s
²
Shock resistance Destructive 980m/s
²
Vibration resistance 10Hz
~
55Hz 1
.
5mm ( Double amplitude) Approx 19g Weight Sealed and open type Construction Remark:1)All above data is initial value This product specification only for your reference, we will not notify you if we do any improvement.We reserve all the right for the final explanation Web:www.songle.com www.songlerelay.com Email:sale@songle.com Web:www.songle.com www.songlerelay.com Add.:CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China i Z p Code:315400 Add.:CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China Zip Code:315400 Tel.: +86 574 62717777 62762658 62721968 a F x:+86 574 62721978 Document Outline 页 1 页 2 页 3
