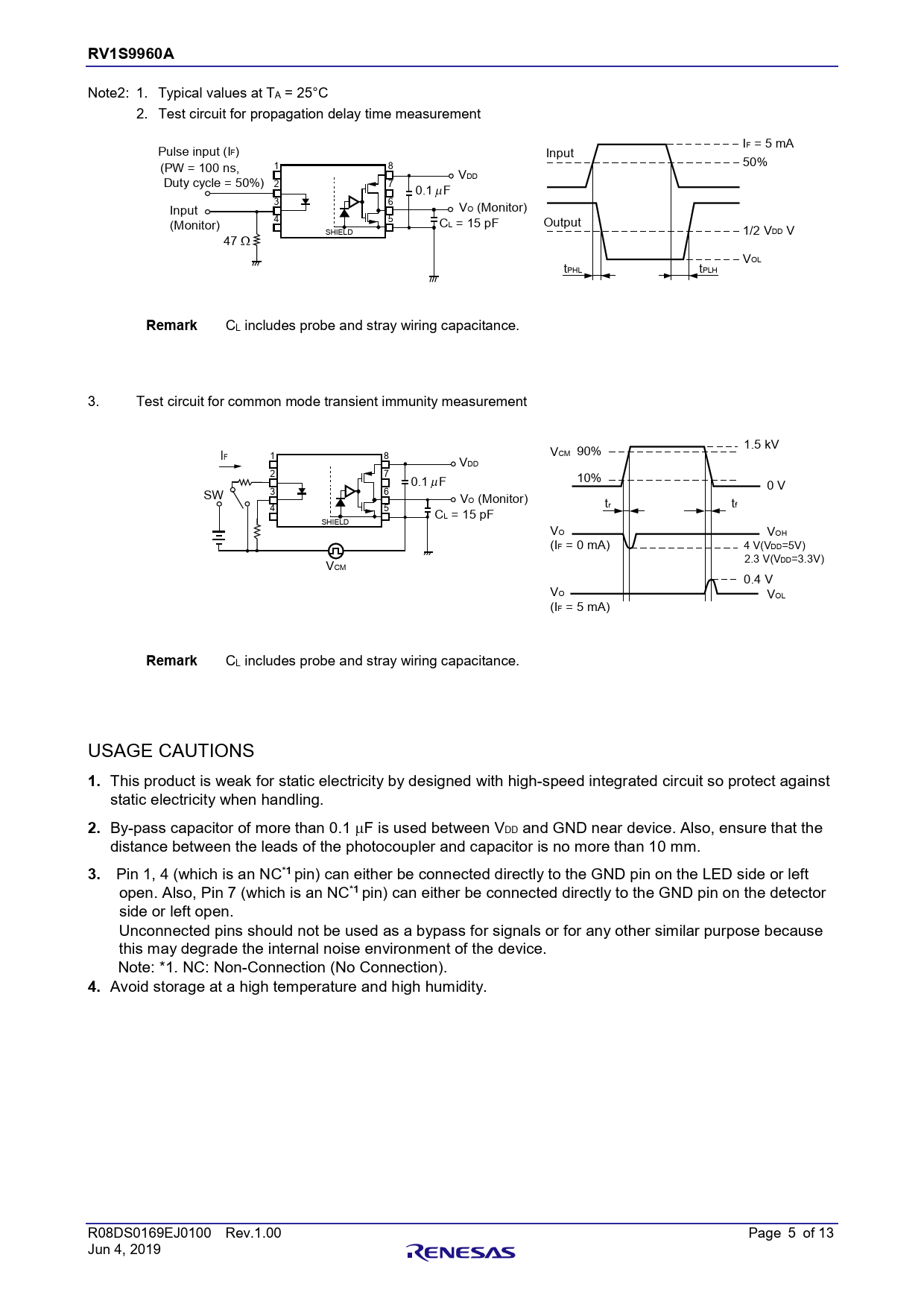

RV1S9960A 章題 Note2: 1. Typical values at TA = 25°C 2. Test circuit for propagation delay time measurement IF = 5 mA Pulse input (IF) Input 50% (PW = 100 ns, 1 8 V Duty cycle = 50%) 2 7 DD 0.1 F 3 6 Input VO (Monitor) 4 5 (Monitor) CL = 15 pF Output SHIELD 1/2 VDD V 47 W VOL tPHL tPLH Remark CL includes probe and stray wiring capacitance. 3. Test circuit for common mode transient immunity measurement 1 8 VCM 90% 1.5 kV IF VDD 2 7 10% 0.1 F 0 V SW 3 6 VO (Monitor) tr tf 4 5 CL = 15 pF SHIELD VO VOH (IF = 0 mA) 4 V(VDD=5V) 2.3 V(V V DD=3.3V) CM 0.4 V VO VOL (IF = 5 mA) Remark CL includes probe and stray wiring capacitance. USAGE CAUTIONS 1. This product is weak for static electricity by designed with high-speed integrated circuit so protect against static electricity when handling. 2. By-pass capacitor of more than 0.1 F is used between VDD and GND near device. Also, ensure that the distance between the leads of the photocoupler and capacitor is no more than 10 mm. 3. Pin 1, 4 (which is an NC*1 pin) can either be connected directly to the GND pin on the LED side or left open. Also, Pin 7 (which is an NC*1 pin) can either be connected directly to the GND pin on the detector side or left open. Unconnected pins should not be used as a bypass for signals or for any other similar purpose because this may degrade the internal noise environment of the device. Note: *1. NC: Non-Connection (No Connection). 4. Avoid storage at a high temperature and high humidity. R08DS0169EJ0100 Rev.1.00 Page 5 of 13 Jun 4, 2019
