Datasheet RV1S9060A (Renesas) - 2
| Hersteller | Renesas |
| Beschreibung | HIGH CMR, 15Mbps CMOS OUTPUT, LOW FORWARD-CURRENT(IF) 3.3V/5V OPERATION, 5-PIN with 8mm creepage distance package LSO5 PHOTOCOUPLER |
| Seiten / Seite | 14 / 2 — RV1S9060A. 章題. PACKAGE. DIMENSIONS. (UNIT. :. mm). Weight. :. 0.119g. … |
| Dateiformat / Größe | PDF / 2.1 Mb |
| Dokumentensprache | Englisch |

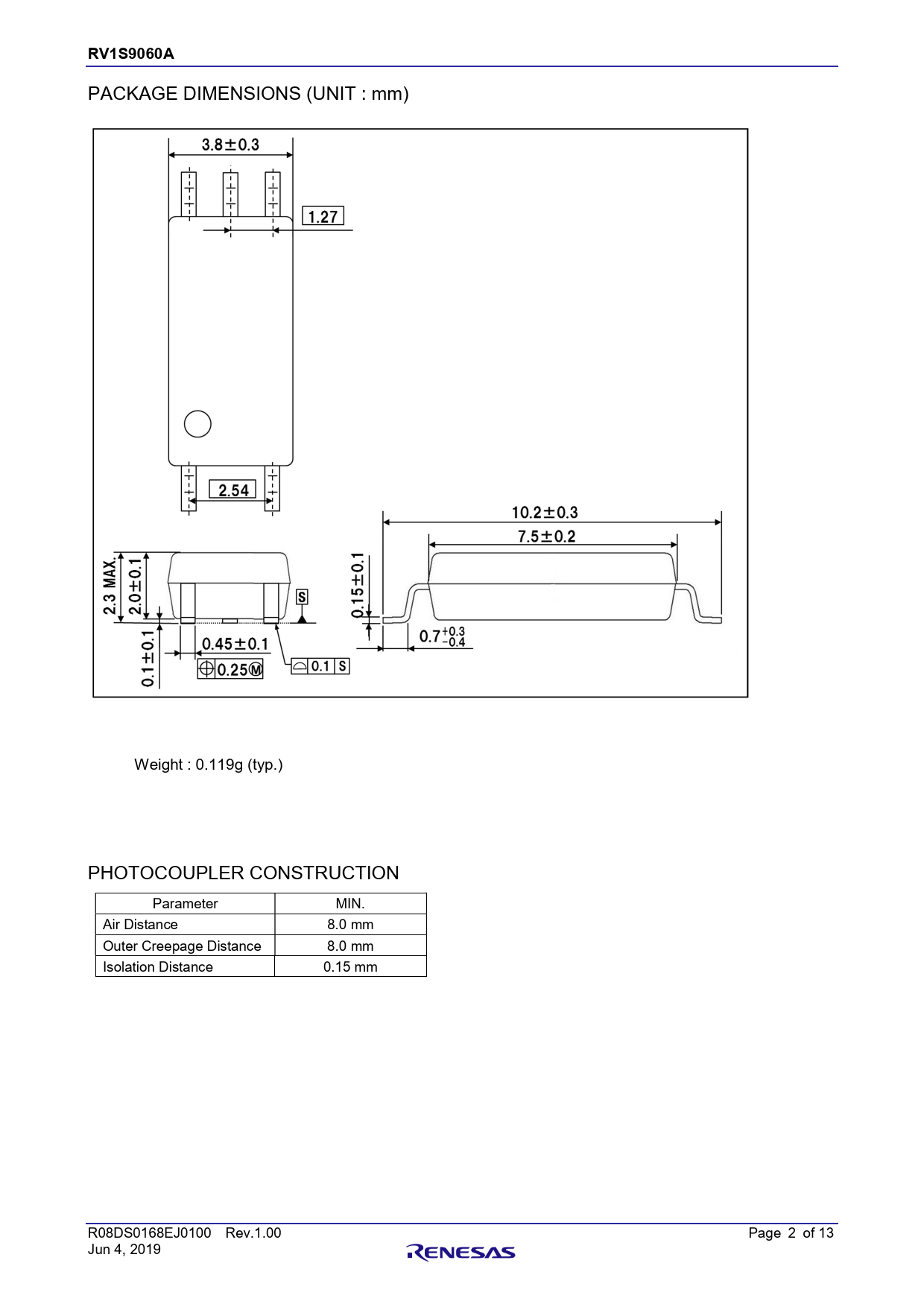

RV1S9060A. 章題. PACKAGE. DIMENSIONS. (UNIT. :. mm). Weight. :. 0.119g. (typ.). PHOTOCOUPLER. CONSTRUCTION. Parameter. MIN. Air. Distance. 8.0. mm. Outer
Modelllinie für dieses Datenblatt
Textversion des Dokuments
RV1S9060A 章題 PACKAGE DIMENSIONS (UNIT : mm) Weight : 0.119g (typ.) PHOTOCOUPLER CONSTRUCTION Parameter MIN. Air Distance 8.0 mm Outer Creepage Distance 8.0 mm Isolation Distance 0.15 mm R08DS0168EJ0100 Rev.1.00 Page 2 of 13 Jun 4, 2019
