Datasheet BC847ATT1, BC847BTT1, BC847CTT1 (ON Semiconductor) - 4
| Hersteller | ON Semiconductor |
| Beschreibung | NPN Bipolar Transistor |
| Seiten / Seite | 6 / 4 — BC847ATT1, BC847BTT1, BC847CTT1. BC847. Figure 5. Normalized Thermal … |
| Revision | 3 |
| Dateiformat / Größe | PDF / 68 Kb |
| Dokumentensprache | Englisch |

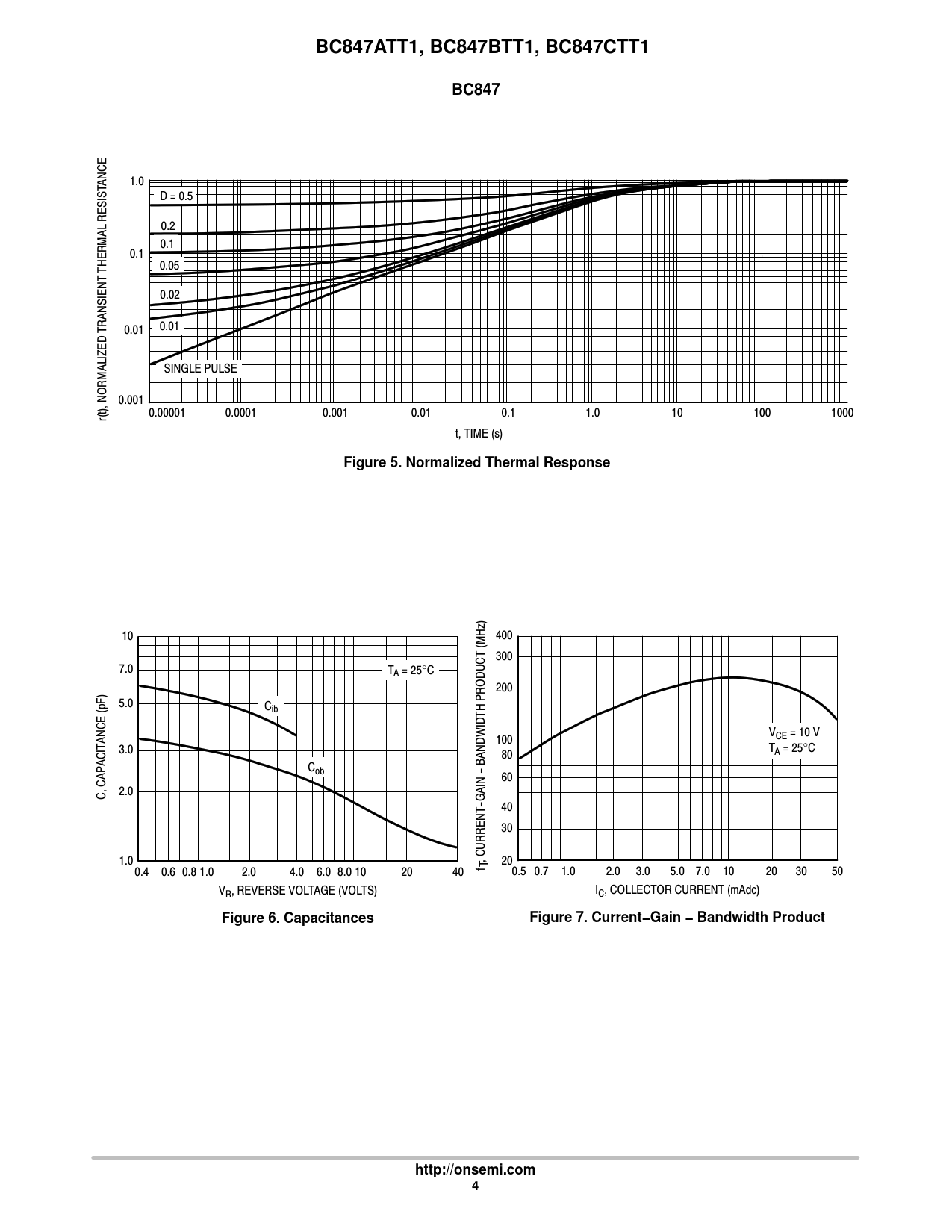

BC847ATT1, BC847BTT1, BC847CTT1. BC847. Figure 5. Normalized Thermal Response. Figure 6. Capacitances
Modelllinie für dieses Datenblatt
Textversion des Dokuments
BC847ATT1, BC847BTT1, BC847CTT1 BC847
ANCE 1.0 D = 0.5 RESIST 0.2 0.1 0.1 0.05 THERMAL 0.02 TRANSIENT 0.01 0.01 SINGLE PULSE 0.001 0.00001 0.0001 0.001 0.01 0.1 1.0 10 100 1000 r(t), NORMALIZED t, TIME (s)
Figure 5. Normalized Thermal Response
10 400 (MHz) 300 7.0 TA = 25°C 200 5.0 Cib V ANCE (pF) 100 CE = 10 V 3.0 T 80 A = 25°C ACIT Cob 60 2.0 C, CAP 40 30 1.0 20 T 0.4 0.6 0.8 1.0 2.0 4.0 6.0 8.0 10 20 40 f, CURRENT-GAIN - BANDWIDTH PRODUCT 0.5 0.7 1.0 2.0 3.0 5.0 7.0 10 20 30 50 VR, REVERSE VOLTAGE (VOLTS) IC, COLLECTOR CURRENT (mAdc)
Figure 6. Capacitances Figure 7. Current−Gain − Bandwidth Product http://onsemi.com 4
