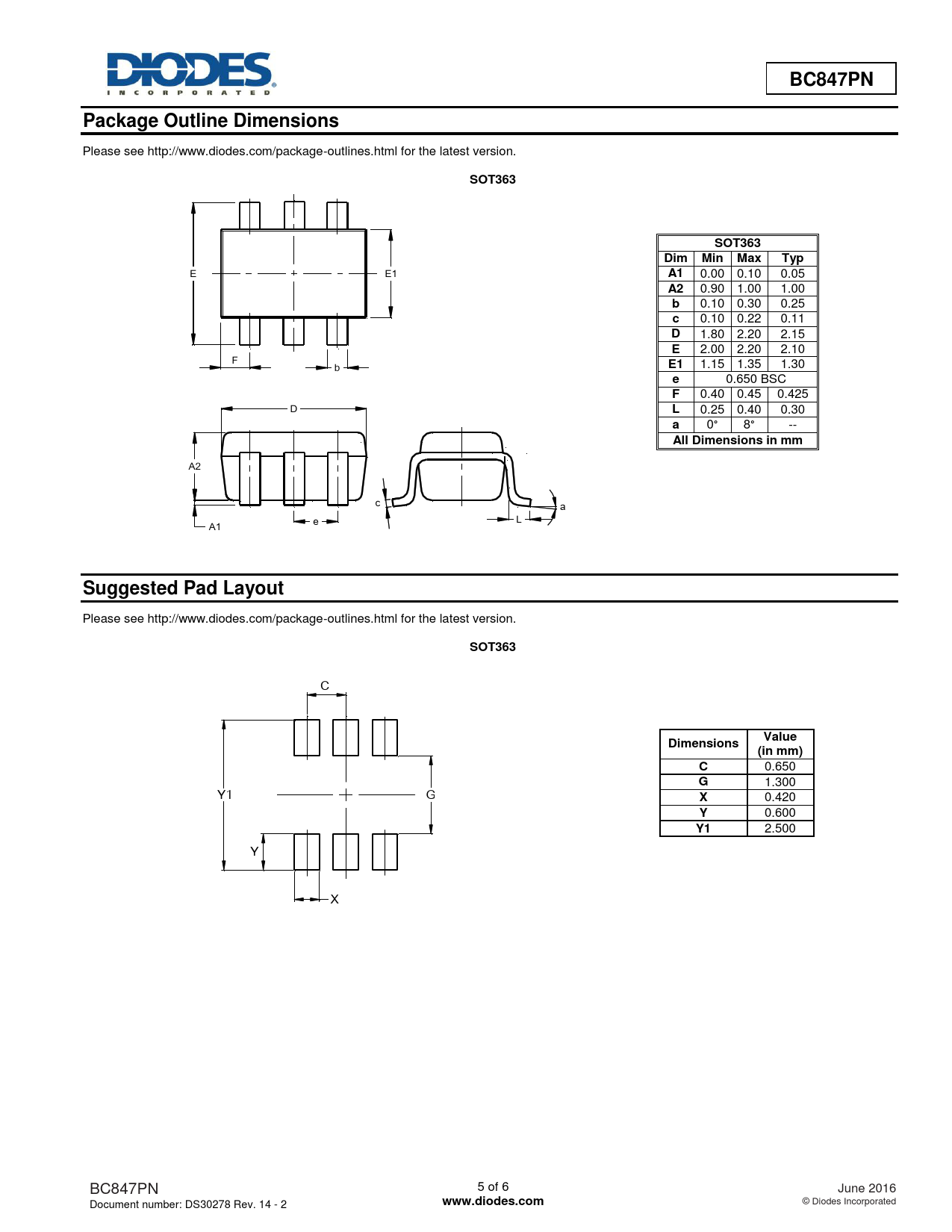

BC847PN Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT363 SOT363 Dim Min Max Typ
E E1
A1
0.00 0.10 0.05
A2
0.90 1.00 1.00
b
0.10 0.30 0.25
c
0.10 0.22 0.11
D
1.80 2.20 2.15
E
2.00 2.20 2.10 F
E1
1.15 1.35 1.30 b
e
0.650 BSC
F
0.40 0.45 0.425 D
L
0.25 0.40 0.30
a
0° 8° --
All Dimensions in mm
A2 c a e L A1
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT363
C
Value Dimensions (in mm) C
0.650
G
1.300 Y1 G
X
0.420
Y
0.600
Y1
2.500 Y X BC847PN 5 of 6 June 2016 Document number: DS30278 Rev. 14 - 2
www.diodes.com
© Diodes Incorporated
