BC846AW-BC848CW. Package Outline Dimensions. SOT323. Dim Min Max. Typ. All Dimensions in mm. Suggested Pad Layout. Value. Dimensions
Modelllinie für dieses Datenblatt
Textversion des Dokuments

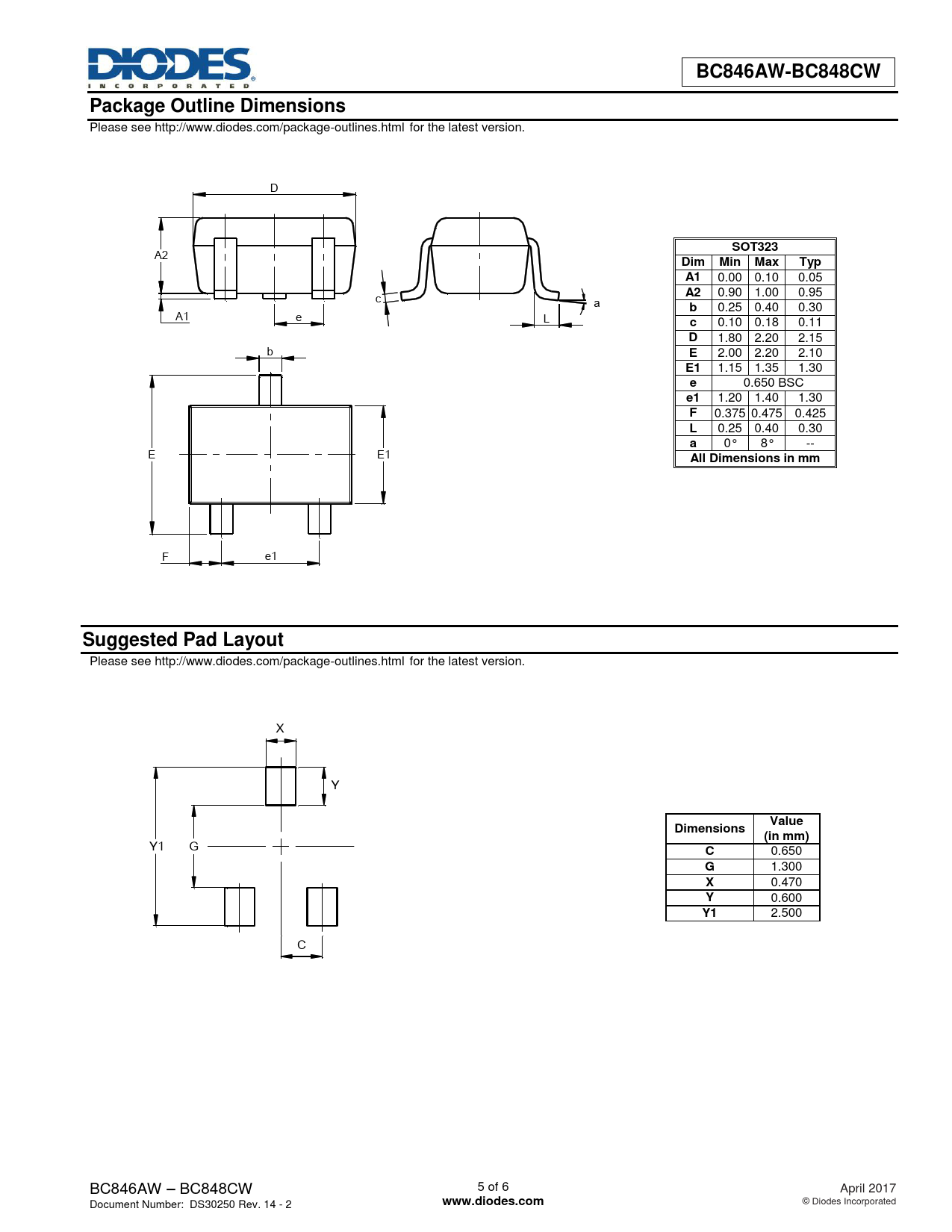

BC846AW-BC848CW Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version. D A2
SOT323 Dim Min Max Typ A1
0.00 0.10 0.05 c
A2
0.90 1.00 0.95 a
b
0.25 0.40 0.30 A1 e L
c
0.10 0.18 0.11
D
1.80 2.20 2.15 b
E
2.00 2.20 2.10
E1
1.15 1.35 1.30
e
0.650 BSC
e1
1.20 1.40 1.30
F
0.375 0.475 0.425
L
0.25 0.40 0.30
a
0° 8° -- E E1
All Dimensions in mm
F e1
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version. X Y
Value Dimensions (in mm)
Y1 G
C
0.650
G
1.300
X
0.470
Y
0.600
Y1
2.500 C BC846AW – BC848CW 5 of 6 April 2017 Document Number: DS30250 Rev. 14 - 2
www.diodes.com
© Diodes Incorporated
