NXP Semiconductors. BC846BPN. 65 V, 100 mA NPN/PNP general-purpose transistor. Limiting values. Table 6. Symbol. Parameter
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 3 link to page 3

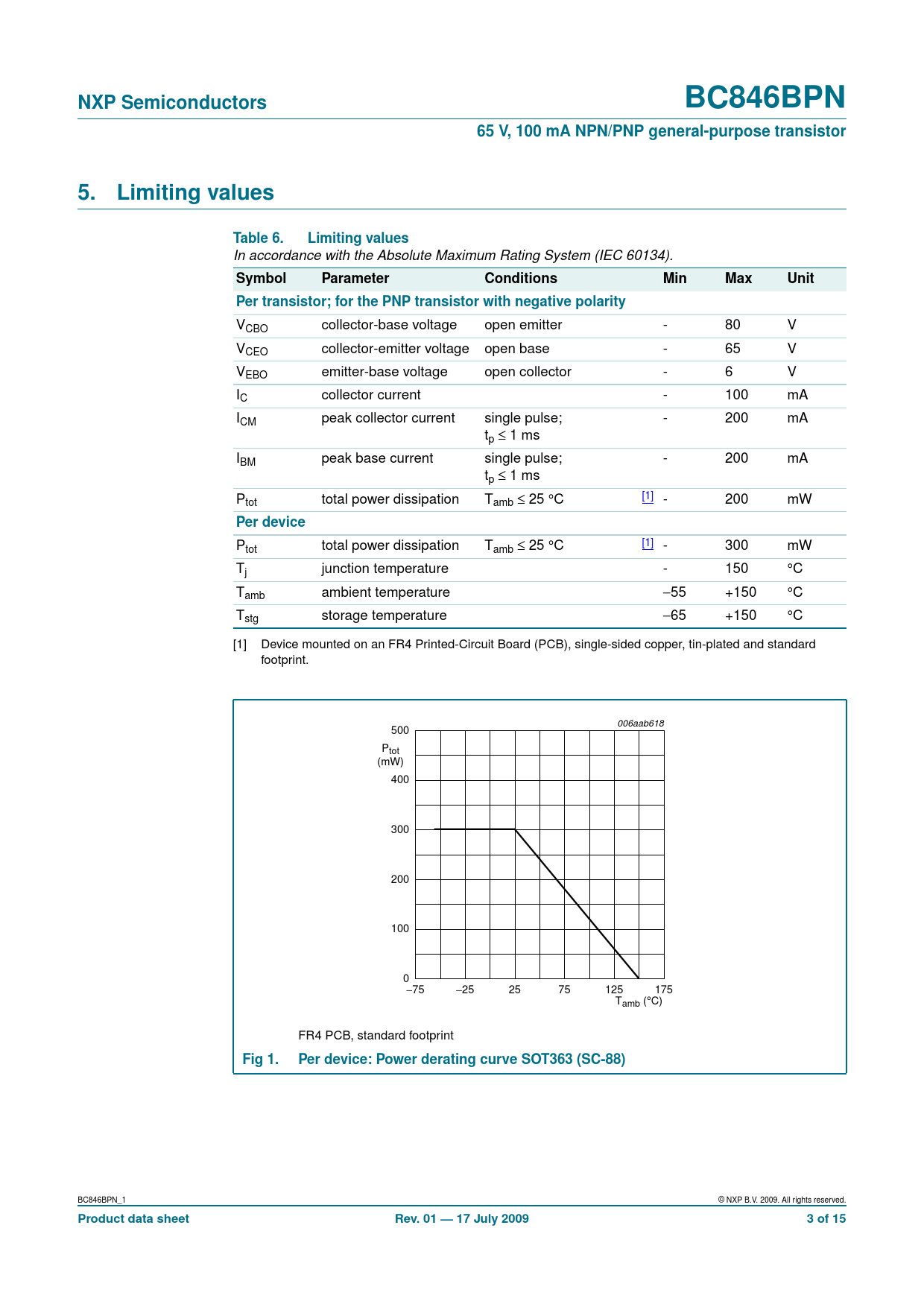

NXP Semiconductors BC846BPN 65 V, 100 mA NPN/PNP general-purpose transistor 5. Limiting values Table 6. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit Per transistor; for the PNP transistor with negative polarity
VCBO collector-base voltage open emitter - 80 V VCEO collector-emitter voltage open base - 65 V VEBO emitter-base voltage open collector - 6 V IC collector current - 100 mA ICM peak collector current single pulse; - 200 mA t ≤ p 1 ms IBM peak base current single pulse; - 200 mA t ≤ p 1 ms P ≤ tot total power dissipation Tamb 25 °C [1] - 200 mW
Per device
Ptot total power dissipation Tamb ≤ 25 °C [1] - 300 mW Tj junction temperature - 150 °C Tamb ambient temperature −55 +150 °C Tstg storage temperature −65 +150 °C [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. 006aab618 500 Ptot (mW) 400 300 200 100 0−75 −25 25 75 125 175 Tamb (°C) FR4 PCB, standard footprint
Fig 1. Per device: Power derating curve SOT363 (SC-88)
BC846BPN_1 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 01 — 17 July 2009 3 of 15
