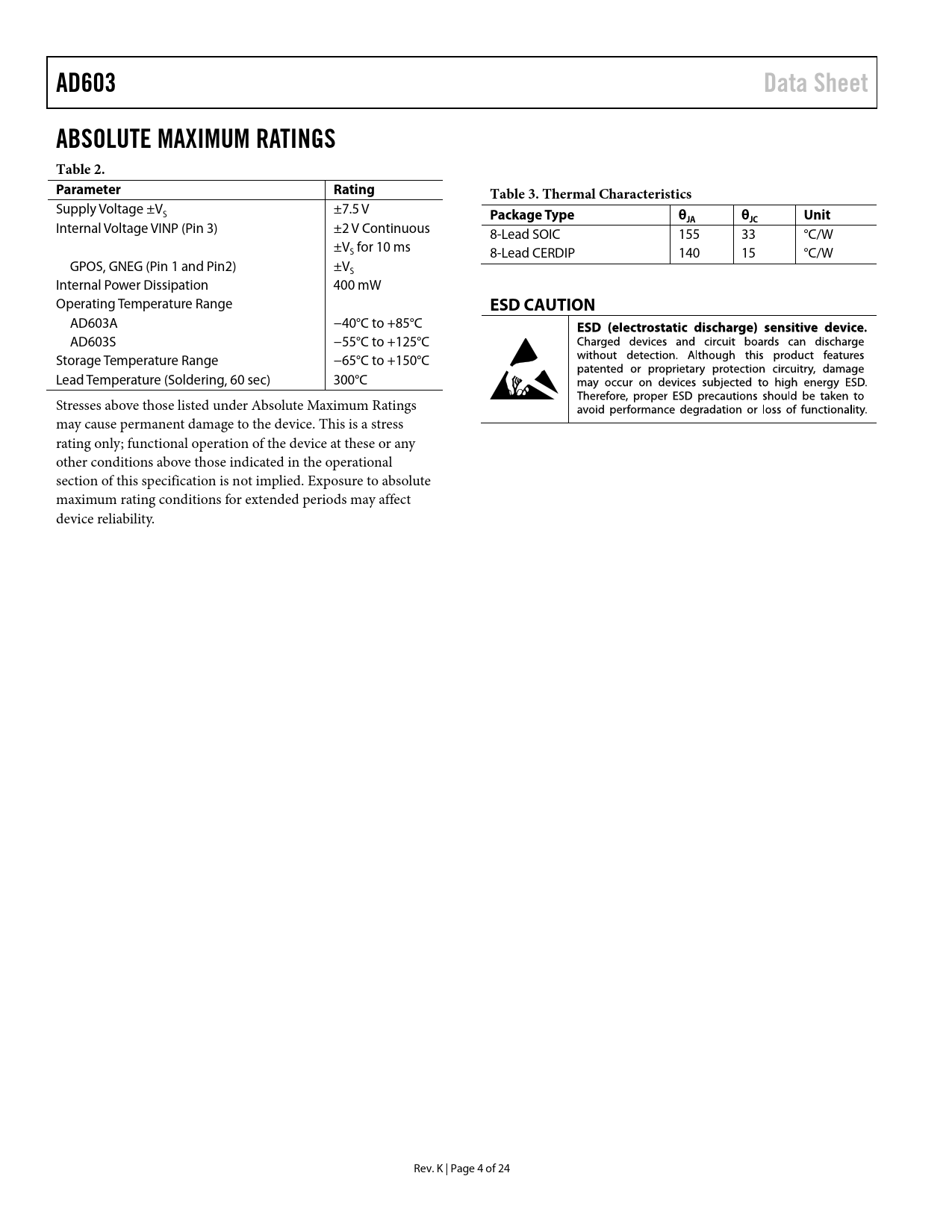

Datasheet AD603 (Analog Devices) - 4

AD603 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating Table 3. Thermal Characteristics
Supply Voltage ±V ±7.5 V S
Package Type θ θ Unit JA JC
Internal Voltage VINP (Pin 3) ±2 V Continuous 8-Lead SOIC 155 33 °C/W ±V for 10 ms S 8-Lead CERDIP 140 15 °C/W GPOS, GNEG (Pin 1 and Pin2) ±V S Internal Power Dissipation 400 mW Operating Temperature Range
ESD CAUTION
AD603A −40°C to +85°C AD603S −55°C to +125°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. K | Page 4 of 24 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Theory of Operation Noise Performance The Gain Control Interface Programming the Fixed-Gain Amplifier Using Pin Strapping Using the AD603 in Cascade Sequential Mode (Optimal SNR) Parallel Mode (Simplest Gain Control Interface) Low Gain Ripple Mode (Minimum Gain Error) Applications Information A Low Noise AGC Amplifier Caution Evaluation Board Outline Dimensions Ordering Guide
