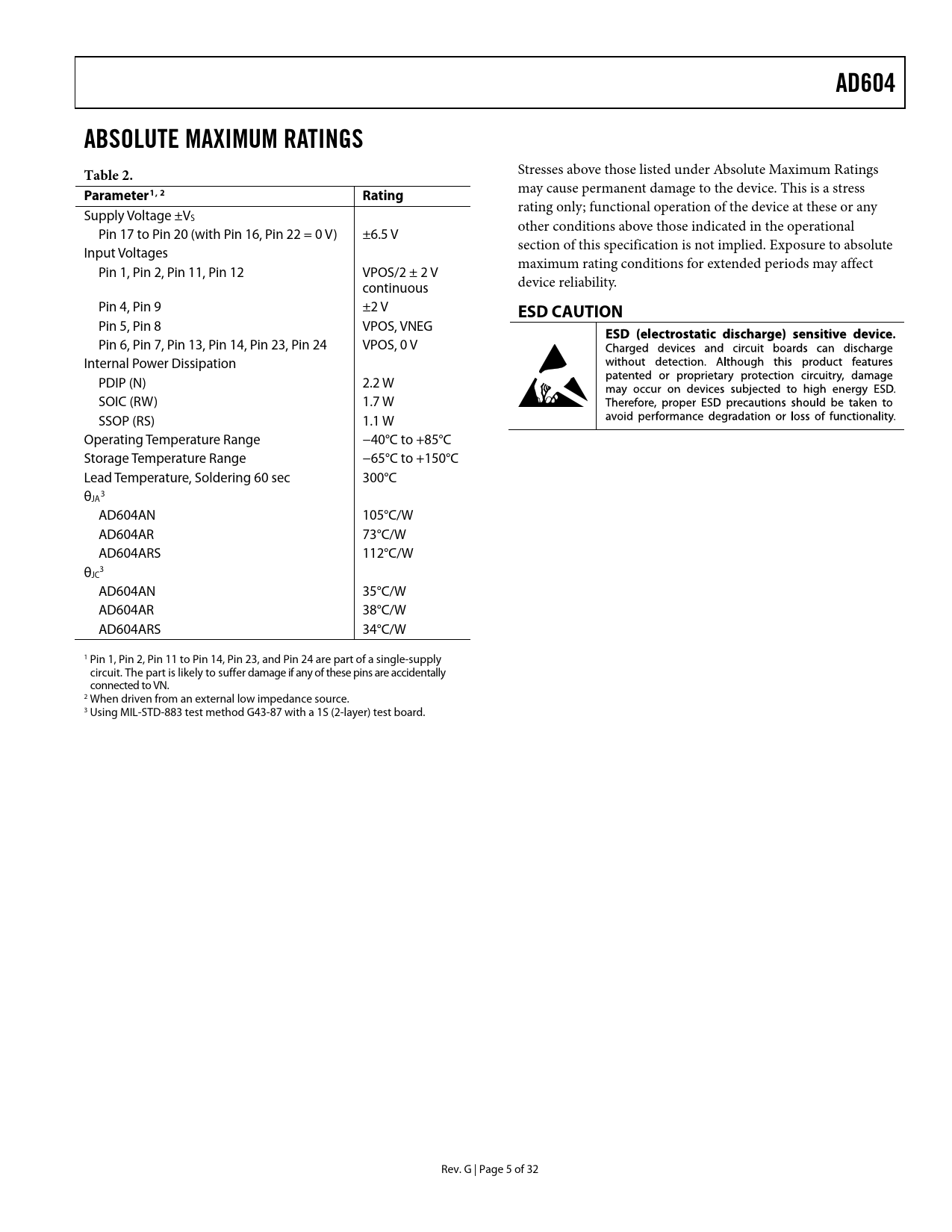

AD604. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter1. , 2 Ra. ting. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 5 link to page 5 link to page 5 link to page 5
AD604 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Parameter1 , 2 Ra ting
rating only; functional operation of the device at these or any Supply Voltage ±VS other conditions above those indicated in the operational Pin 17 to Pin 20 (with Pin 16, Pin 22 = 0 V) ±6.5 V section of this specification is not implied. Exposure to absolute Input Voltages maximum rating conditions for extended periods may affect Pin 1, Pin 2, Pin 11, Pin 12 VPOS/2 ± 2 V continuous device reliability. Pin 4, Pin 9 ±2 V
ESD CAUTION
Pin 5, Pin 8 VPOS, VNEG Pin 6, Pin 7, Pin 13, Pin 14, Pin 23, Pin 24 VPOS, 0 V Internal Power Dissipation PDIP (N) 2.2 W SOIC (RW) 1.7 W SSOP (RS) 1.1 W Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature, Soldering 60 sec 300°C θ 3 JA AD604AN 105°C/W AD604AR 73°C/W AD604ARS 112°C/W θ 3 JC AD604AN 35°C/W AD604AR 38°C/W AD604ARS 34°C/W 1 Pin 1, Pin 2, Pin 11 to Pin 14, Pin 23, and Pin 24 are part of a single-supply circuit. The part is likely to suffer damage if any of these pins are accidentally connected to VN. 2 When driven from an external low impedance source. 3 Using MIL-STD-883 test method G43-87 with a 1S (2-layer) test board. Rev. G | Page 5 of 32 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION PREAMPLIFIER DIFFERENTIAL LADDER (ATTENUATOR) AC COUPLING GAIN CONTROL INTERFACE ACTIVE FEEDBACK AMPLIFIER (FIXED-GAIN AMP) APPLICATIONS INFORMATION ULTRALOW NOISE AGC AMPLIFIER WITH 82 dB TO 96 dB GAIN RANGE ULTRALOW NOISE, DIFFERENTIAL INPUT-DIFFERENTIAL OUTPUT VGA MEDICAL ULTRASOUND TGC DRIVING THE AD9050, A 10-BIT, 40 MSPS ADC EVALUATION BOARD CONNECTING A WAVEFORM TO THE AD604-EVALZ DSX INPUT CONNECTIONS Cascade VGAs to Boost Gain PREAMPLIFIER GAIN OUTPUTS DC OPERATING CONDITIONS EVALUATION BOARD ARTWORK AND SCHEMATIC OUTLINE DIMENSIONS ORDERING GUIDE
