Datasheet LT6654BX (Analog Devices) - 2
| Hersteller | Analog Devices |
| Beschreibung | 175°C, Wide Supply 2.5V Precision Voltage Reference |
| Seiten / Seite | 14 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. … |
| Dateiformat / Größe | PDF / 1.2 Mb |
| Dokumentensprache | Englisch |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. Lead Free Finish TUBE. TAPE AND REEL. PART MARKING*
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT6654BX

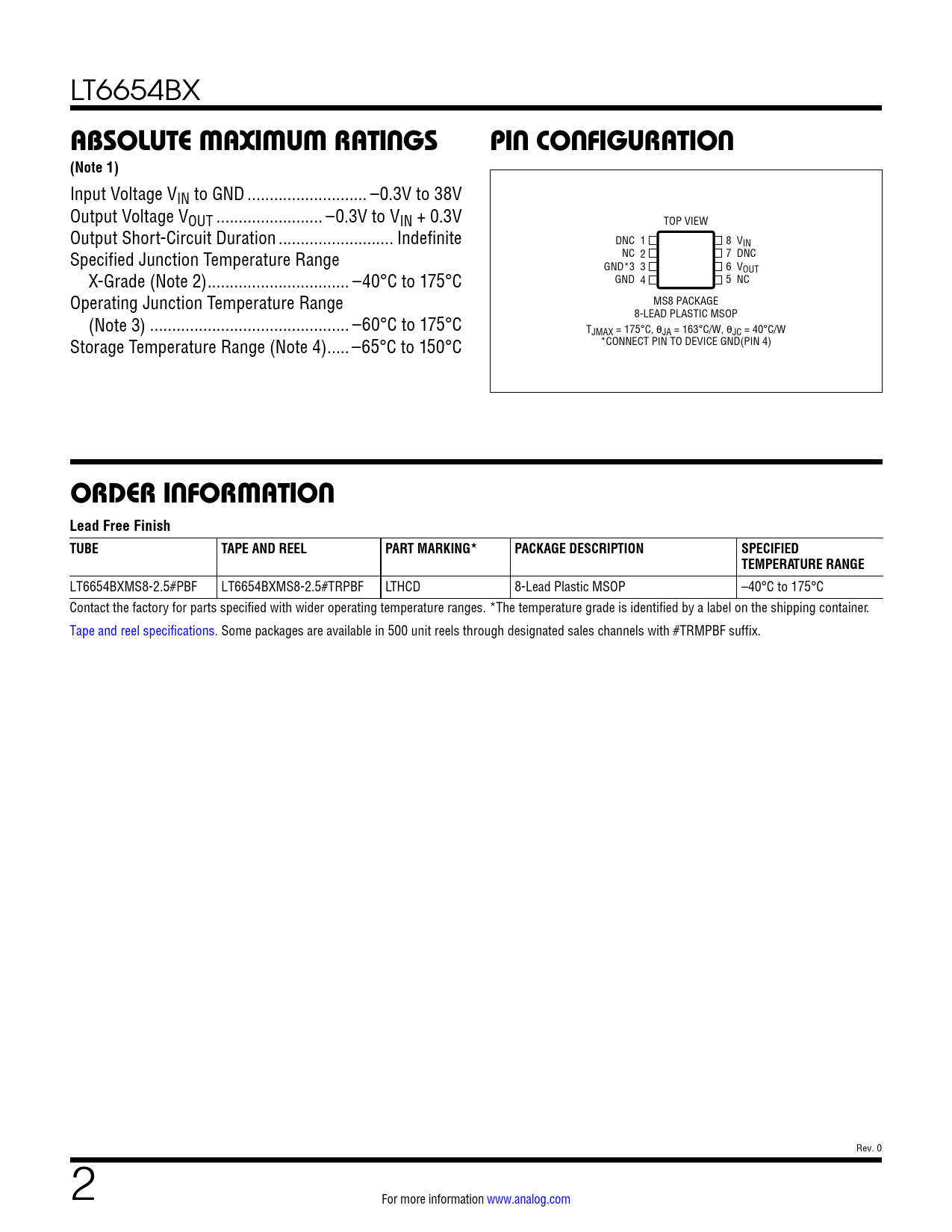

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Input Voltage VIN to GND ... –0.3V to 38V Output Voltage VOUT .. –0.3V to VIN + 0.3V TOP VIEW Output Short-Circuit Duration .. Indefinite DNC 1 8 VIN Specified Junction Temperature Range NC 2 7 DNC GND*3 3 6 VOUT X-Grade (Note 2) .. –40°C to 175°C GND 4 5 NC Operating Junction Temperature Range MS8 PACKAGE (Note 3) ... –60°C to 175°C 8-LEAD PLASTIC MSOP TJMAX = 175°C, θJA = 163°C/W, θJC = 40°C/W Storage Temperature Range (Note 4) ... –65°C to 150°C *CONNECT PIN TO DEVICE GND(PIN 4)
ORDER INFORMATION Lead Free Finish TUBE TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6654BXMS8-2.5#PBF LT6654BXMS8-2.5#TRPBF LTHCD 8-Lead Plastic MSOP –40°C to 175°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev. 0 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Package Description Typical Application Related Parts
