| Beschreibung | 10-Bit, 40 MSPS, Low-Power Analog-to-Digital Converter |
| Seiten / Seite | 8 / 7 — Automotive Product. AD9203W. OUTLINE DIMENSIONS. 9.80 9.70 9.60. 2 8. 1 … |
| Dateiformat / Größe | PDF / 132 Kb |
| Dokumentensprache | Englisch |

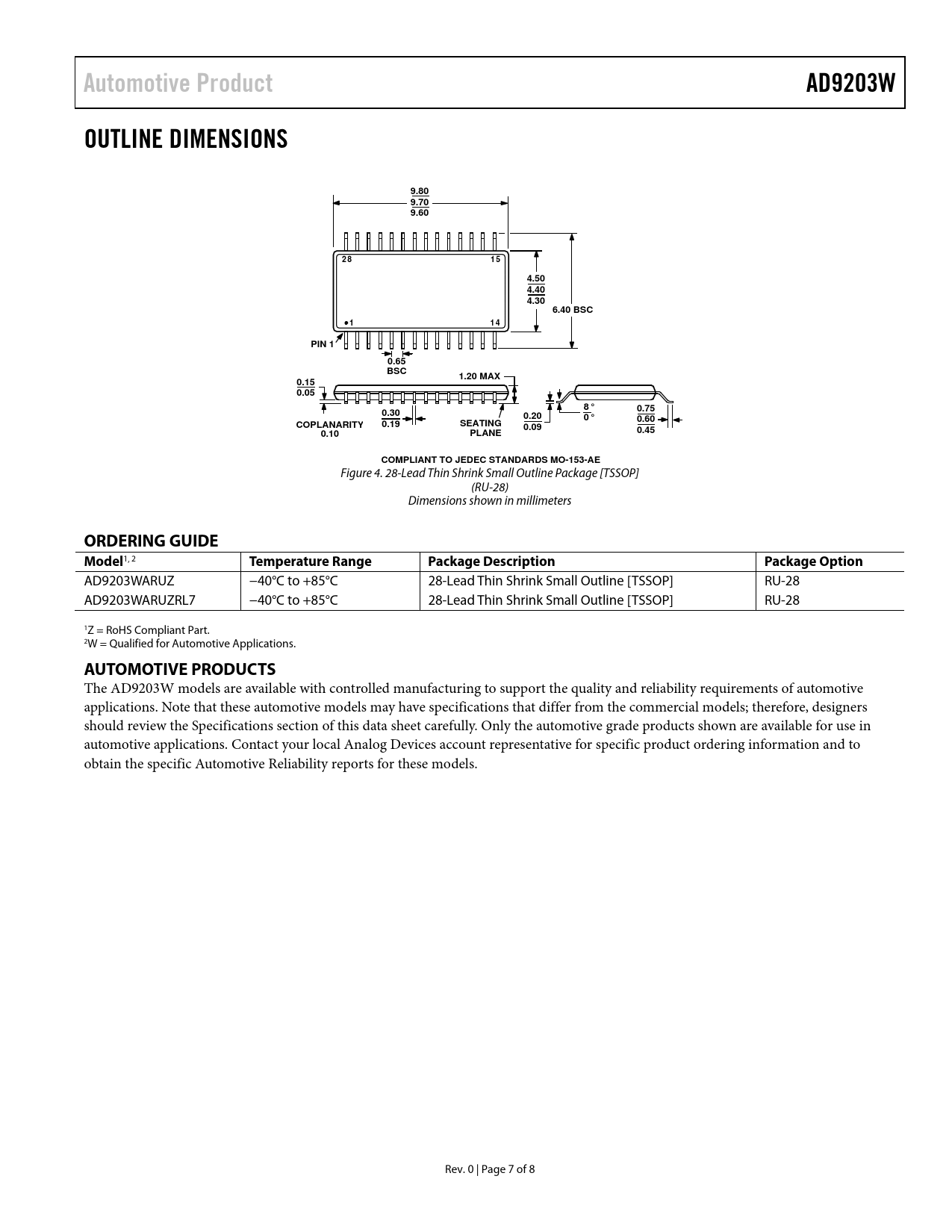

Automotive Product. AD9203W. OUTLINE DIMENSIONS. 9.80 9.70 9.60. 2 8. 1 5. 4.50 4.40 4.30. 6.40 BSC. 1 4. PIN 1. 0.65. BSC. 1.20 MAX. 0.15 0.05
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 7
Automotive Product AD9203W OUTLINE DIMENSIONS 9.80 9.70 9.60 2 8 1 5 4.50 4.40 4.30 6.40 BSC 1 1 4 PIN 1 0.65 BSC 1.20 MAX 0.15 0.05 8 ° 0.75 0.30 0.20 0 ° 0.60 COPLANARITY 0.19 SEATING 0.09 0.10 PLANE 0.45 COMPLIANT TO JEDEC STANDARDS MO-153-AE
Figure 4. 28-Lead Thin Shrink Small Outline Package [TSSOP] (RU-28) Dimensions shown in millimeters
ORDERING GUIDE Model
1, 2
Temperature Range Package Description Package Option
AD9203WARUZ −40°C to +85°C 28-Lead Thin Shrink Small Outline [TSSOP] RU-28 AD9203WARUZRL7 −40°C to +85°C 28-Lead Thin Shrink Small Outline [TSSOP] RU-28 1Z = RoHS Compliant Part. 2W = Qualified for Automotive Applications.
AUTOMOTIVE PRODUCTS
The AD9203W models are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. Note that these automotive models may have specifications that differ from the commercial models; therefore, designers should review the Specifications section of this data sheet carefully. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. 0 | Page 7 of 8 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS ORDERING GUIDE
