Datasheet AD7476-EP (Analog Devices) - 4

link to page 12

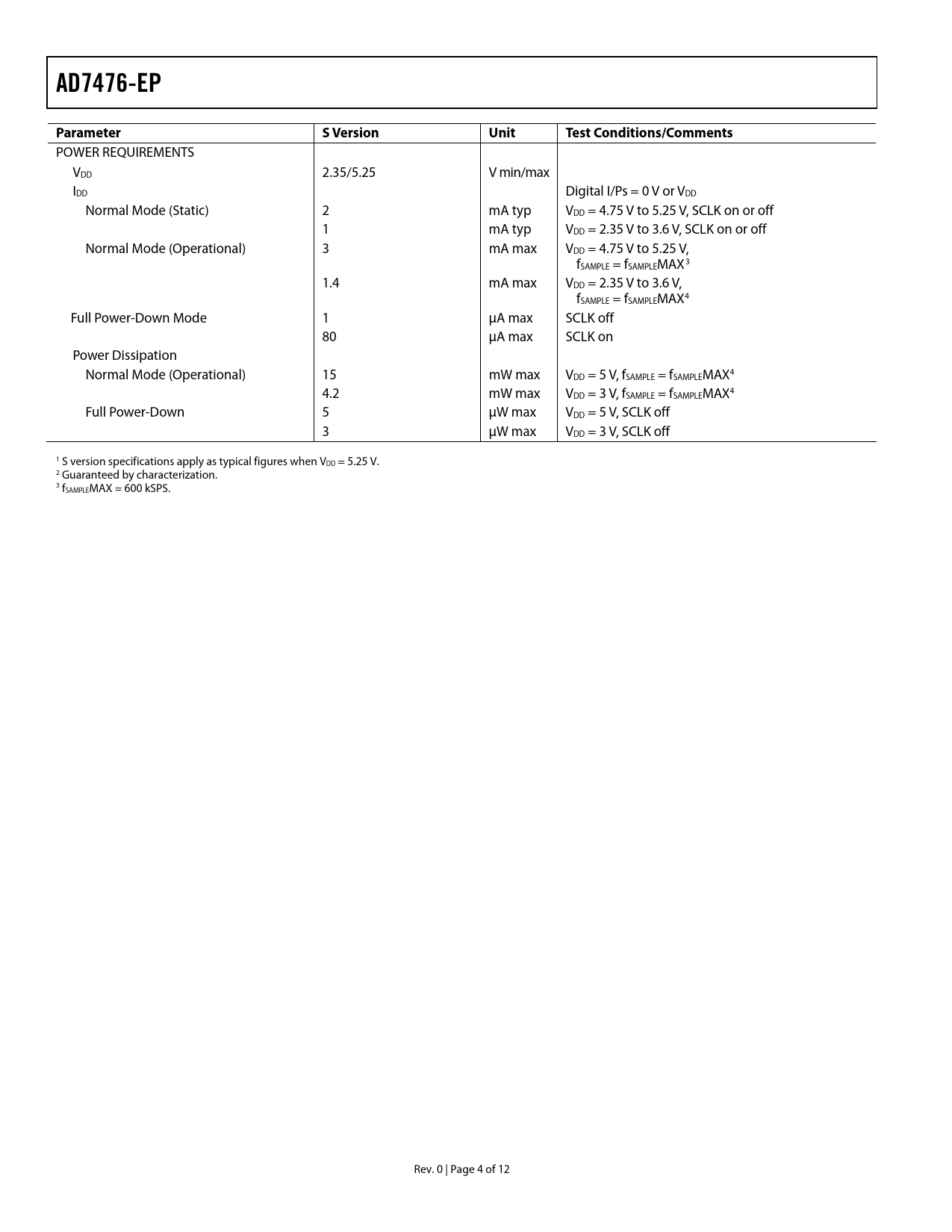

AD7476-EP Parameter S Version Unit Test Conditions/Comments
POWER REQUIREMENTS VDD 2.35/5.25 V min/max IDD Digital I/Ps = 0 V or VDD Normal Mode (Static) 2 mA typ VDD = 4.75 V to 5.25 V, SCLK on or off 1 mA typ VDD = 2.35 V to 3.6 V, SCLK on or off Normal Mode (Operational) 3 mA max VDD = 4.75 V to 5.25 V, fSAMPLE = fSAMPLEMAX3 1.4 mA max VDD = 2.35 V to 3.6 V, fSAMPLE = fSAMPLEMAX4 Full Power-Down Mode 1 μA max SCLK off 80 μA max SCLK on Power Dissipation Normal Mode (Operational) 15 mW max VDD = 5 V, fSAMPLE = fSAMPLEMAX4 4.2 mW max VDD = 3 V, fSAMPLE = fSAMPLEMAX4 Full Power-Down 5 μW max VDD = 5 V, SCLK off 3 μW max VDD = 3 V, SCLK off 1 S version specifications apply as typical figures when VDD = 5.25 V. 2 Guaranteed by characterization. 3 fSAMPLEMAX = 600 kSPS. Rev. 0 | Page 4 of 12 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
