Datasheet AD7790 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | 16-Bit, Single-Channel, Ultra Low Power, Sigma Delta A/D Converter |
| Seiten / Seite | 6 / 4 — AD7790. Key Sheet. Single Conversion Mode. DATA. REQUEST. DIN. DOUT/RDY. … |
| Dateiformat / Größe | PDF / 127 Kb |
| Dokumentensprache | Englisch |
AD7790. Key Sheet. Single Conversion Mode. DATA. REQUEST. DIN. DOUT/RDY. SCLK. TYPICAL APPLICATION DIAGRAM. POWER SUPPLY. 0.1µF. 10µF. VDD
Modelllinie für dieses Datenblatt
Textversion des Dokuments

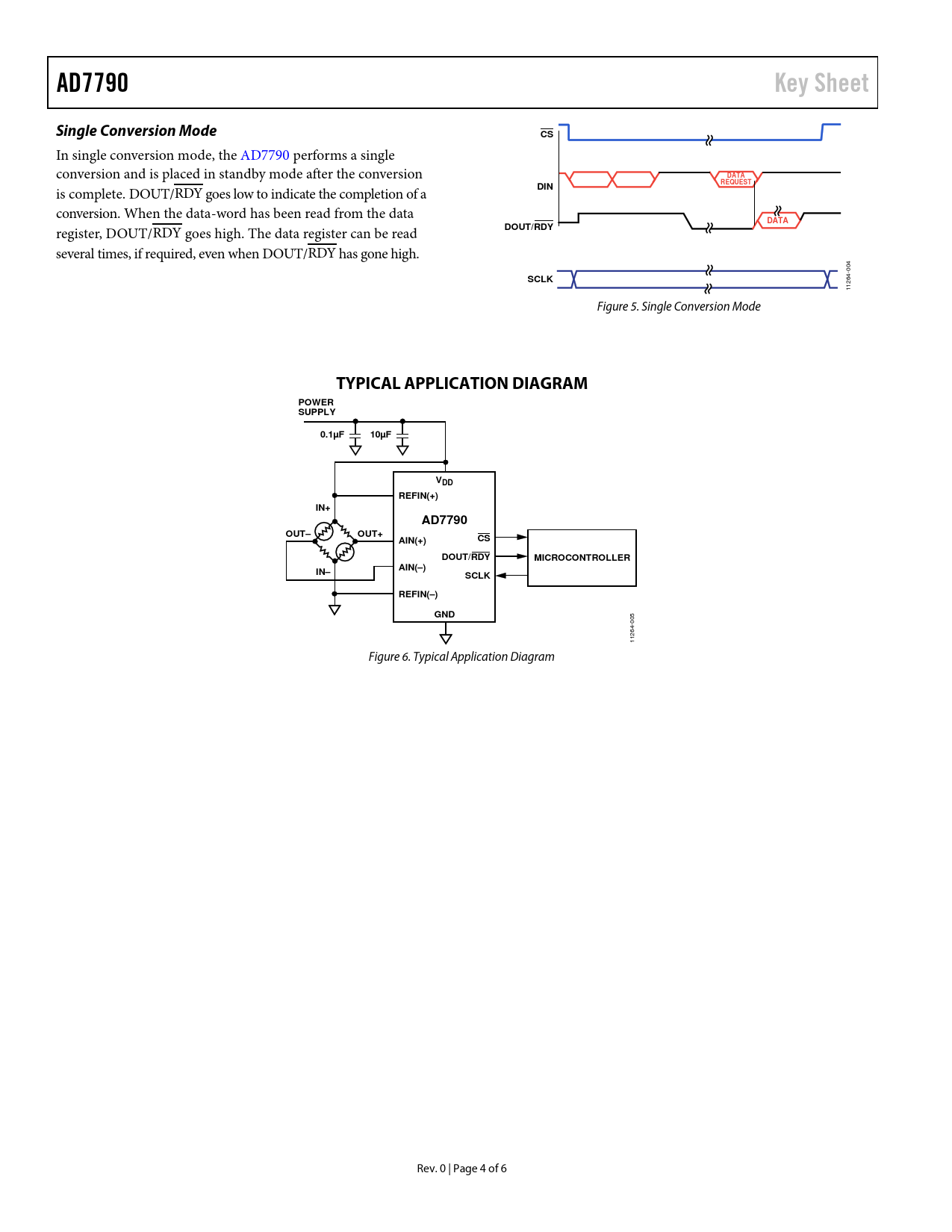

AD7790 Key Sheet Single Conversion Mode CS
In single conversion mode, the AD7790 performs a single conversion and is placed in standby mode after the conversion
DATA REQUEST
is complete. DOUT/RDY goes low to indicate the completion of a
DIN
conversion. When the data-word has been read from the data
DATA
register, DOUT/RDY goes high. The data register can be read
DOUT/RDY
several times, if required, even when DOUT/RDY has gone high. 004
SCLK
11264- Figure 5. Single Conversion Mode
TYPICAL APPLICATION DIAGRAM POWER SUPPLY 0.1µF 10µF VDD REFIN(+) IN+ AD7790 OUT– OUT+ CS AIN(+) DOUT/RDY MICROCONTROLLER AIN(–) IN– SCLK REFIN(–) GND
