Datasheet PZT2222A (ON Semiconductor) - 6
| Hersteller | ON Semiconductor |
| Beschreibung | NPN Bipolar Transistor |
| Seiten / Seite | 7 / 6 — SOT−223 (TO−261). GENERIC. MARKING DIAGRAM*. DOCUMENT NUMBER: … |
| Revision | 11 |
| Dateiformat / Größe | PDF / 176 Kb |
| Dokumentensprache | Englisch |
SOT−223 (TO−261). GENERIC. MARKING DIAGRAM*. DOCUMENT NUMBER: 98ASB42680B. DESCRIPTION:. PAGE 2 OF 2
Modelllinie für dieses Datenblatt
Textversion des Dokuments
SOT−223 (TO−261)

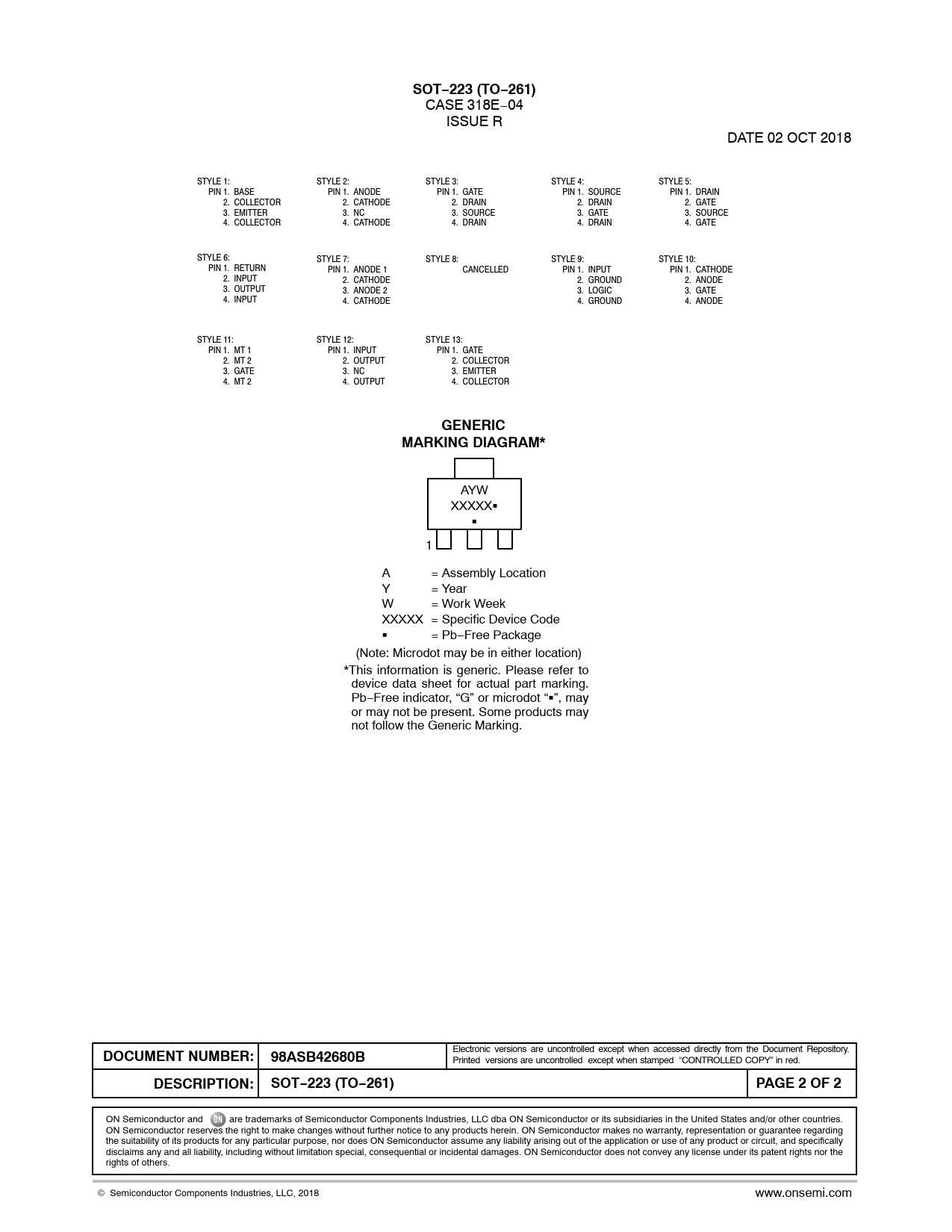

CASE 318E−04 ISSUE R DATE 02 OCT 2018 STYLE 1: STYLE 2: STYLE 3: STYLE 4: STYLE 5: PIN 1. BASE PIN 1. ANODE PIN 1. GATE PIN 1. SOURCE PIN 1. DRAIN 2. COLLECTOR 2. CATHODE 2. DRAIN 2. DRAIN 2. GATE 3. EMITTER 3. NC 3. SOURCE 3. GATE 3. SOURCE 4. COLLECTOR 4. CATHODE 4. DRAIN 4. DRAIN 4. GATE STYLE 6: STYLE 7: STYLE 8: STYLE 9: STYLE 10: PIN 1. RETURN PIN 1. ANODE 1 CANCELLED PIN 1. INPUT PIN 1. CATHODE 2. INPUT 2. CATHODE 2. GROUND 2. ANODE 3. OUTPUT 3. ANODE 2 3. LOGIC 3. GATE 4. INPUT 4. CATHODE 4. GROUND 4. ANODE STYLE 11: STYLE 12: STYLE 13: PIN 1. MT 1 PIN 1. INPUT PIN 1. GATE 2. MT 2 2. OUTPUT 2. COLLECTOR 3. GATE 3. NC 3. EMITTER 4. MT 2 4. OUTPUT 4. COLLECTOR
GENERIC MARKING DIAGRAM*
AYW XXXXXG G 1 A = Assembly Location Y = Year W = Work Week XXXXX = Specific Device Code G = Pb−Free Package (Note: Microdot may be in either location) *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
