Datasheet AD810-EP (Analog Devices) - 4

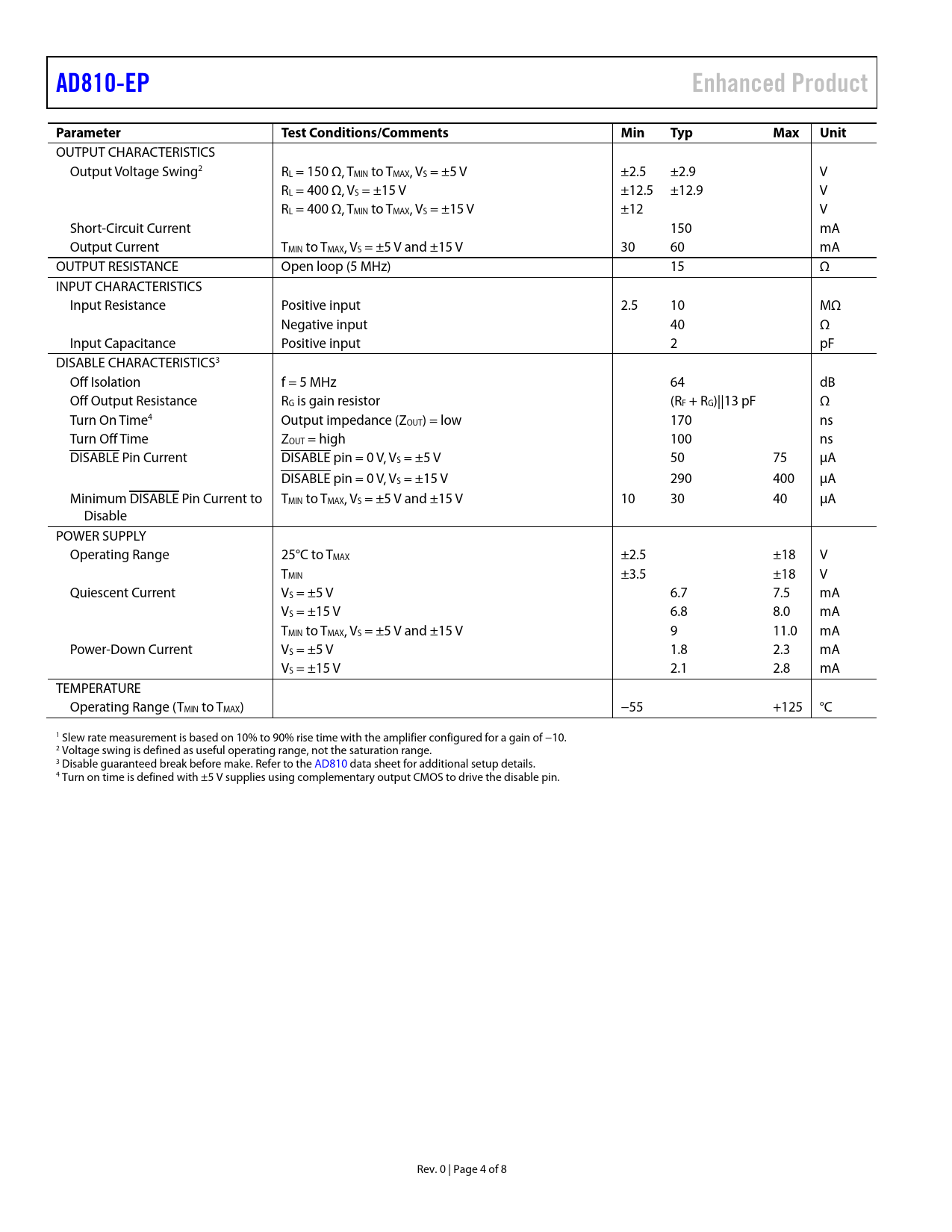

AD810-EP Enhanced Product Parameter Test Conditions/Comments Min Typ Max Unit
OUTPUT CHARACTERISTICS Output Voltage Swing2 RL = 150 Ω, TMIN to TMAX, VS = ±5 V ±2.5 ±2.9 V RL = 400 Ω, VS = ±15 V ±12.5 ±12.9 V RL = 400 Ω, TMIN to TMAX, VS = ±15 V ±12 V Short-Circuit Current 150 mA Output Current TMIN to TMAX, VS = ±5 V and ±15 V 30 60 mA OUTPUT RESISTANCE Open loop (5 MHz) 15 Ω INPUT CHARACTERISTICS Input Resistance Positive input 2.5 10 MΩ Negative input 40 Ω Input Capacitance Positive input 2 pF DISABLE CHARACTERISTICS3 Off Isolation f = 5 MHz 64 dB Off Output Resistance RG is gain resistor (RF + RG)||13 pF Ω Turn On Time4 Output impedance (ZOUT) = low 170 ns Turn Off Time ZOUT = high 100 ns DISABLE Pin Current DISABLE pin = 0 V, VS = ±5 V 50 75 µA DISABLE pin = 0 V, VS = ±15 V 290 400 µA Minimum DISABLE Pin Current to TMIN to TMAX, VS = ±5 V and ±15 V 10 30 40 µA Disable POWER SUPPLY Operating Range 25°C to TMAX ±2.5 ±18 V TMIN ±3.5 ±18 V Quiescent Current VS = ±5 V 6.7 7.5 mA VS = ±15 V 6.8 8.0 mA TMIN to TMAX, VS = ±5 V and ±15 V 9 11.0 mA Power-Down Current VS = ±5 V 1.8 2.3 mA VS = ±15 V 2.1 2.8 mA TEMPERATURE Operating Range (TMIN to TMAX) −55 +125 °C 1 Slew rate measurement is based on 10% to 90% rise time with the amplifier configured for a gain of −10. 2 Voltage swing is defined as useful operating range, not the saturation range. 3 Disable guaranteed break before make. Refer to the AD810 data sheet for additional setup details. 4 Turn on time is defined with ±5 V supplies using complementary output CMOS to drive the disable pin. Rev. 0 | Page 4 of 8 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
