Package Information
www.vishay.com Vishay Siliconix

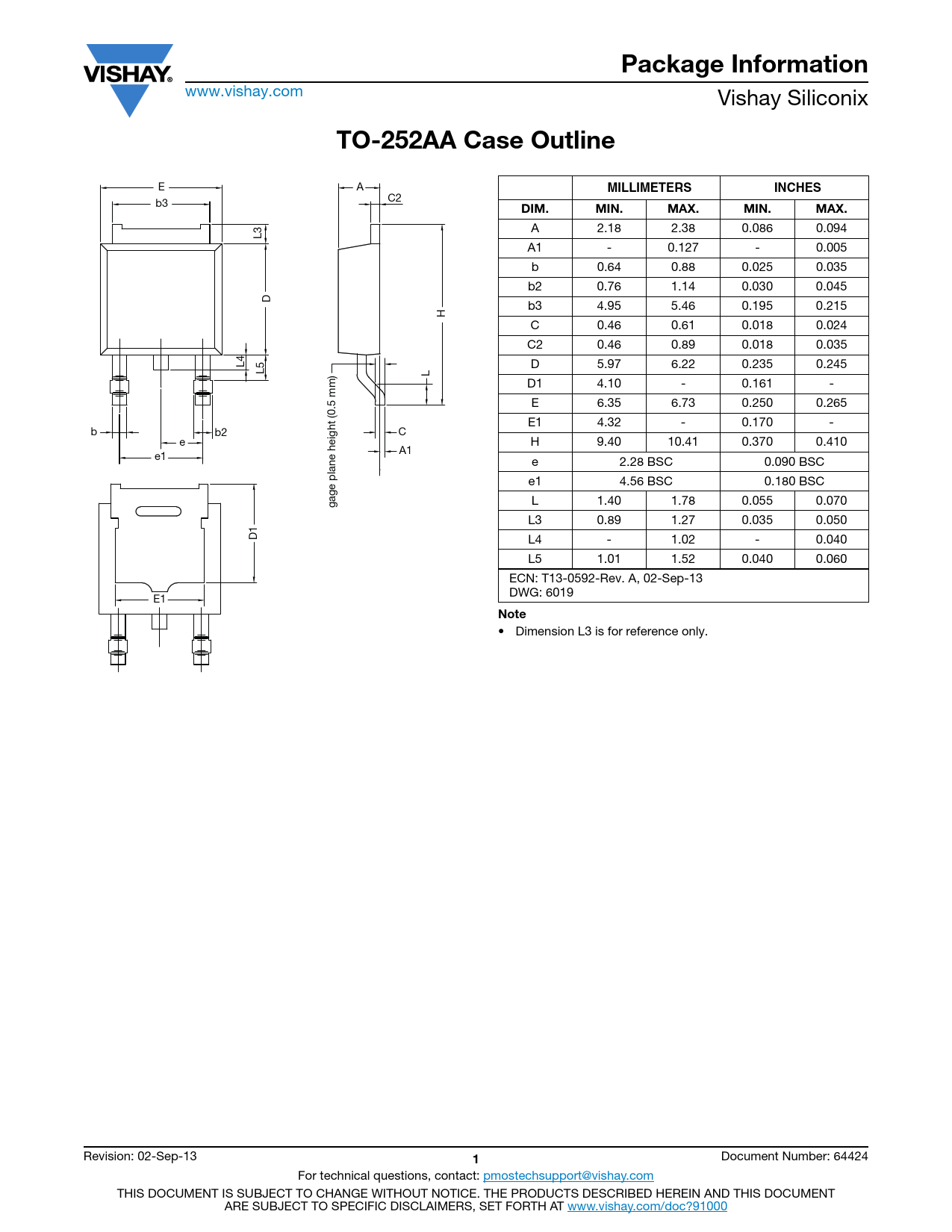

TO-252AA Case Outline
E A
MILLIMETERS INCHES
C2 b3
DIM. MIN. MAX. MIN. MAX.
A 2.18 2.38 0.086 0.094 L3 A1 - 0.127 - 0.005 b 0.64 0.88 0.025 0.035 b2 0.76 1.14 0.030 0.045 D b3 4.95 5.46 0.195 0.215 H C 0.46 0.61 0.018 0.024 C2 0.46 0.89 0.018 0.035 L4 D 5.97 6.22 0.235 0.245 L5 L D1 4.10 - 0.161 - E 6.35 6.73 0.250 0.265 E1 4.32 - 0.170 - b b2 C e H 9.40 10.41 0.370 0.410 A1 e1 e 2.28 BSC 0.090 BSC e1 4.56 BSC 0.180 BSC gage plane height (0.5 mm) L 1.40 1.78 0.055 0.070 L3 0.89 1.27 0.035 0.050 D1 L4 - 1.02 - 0.040 L5 1.01 1.52 0.040 0.060 ECN: T13-0592-Rev. A, 02-Sep-13 DWG: 6019 E1
Note
• Dimension L3 is for reference only. Revision: 02-Sep-13
