Datasheet VDRUS (Vishay) - 4
| Hersteller | Vishay |
| Beschreibung | VDR Metal Oxide Varistors Ultra Surge High Operating Temperature 125°C |
| Seiten / Seite | 15 / 4 — VDRUS Series. ELECTRICAL CHARACTERISTICS. ELECTRICAL DATA. PARAMETER. … |
| Dateiformat / Größe | PDF / 227 Kb |
| Dokumentensprache | Englisch |
VDRUS Series. ELECTRICAL CHARACTERISTICS. ELECTRICAL DATA. PARAMETER. VALUE. UNIT. DERATING CURVE
Modelllinie für dieses Datenblatt
- VDRUS07M130BKE VDRUS07M130BSE VDRUS07M140BKE VDRUS07M140BSE VDRUS07M150BKE VDRUS07M150BSE VDRUS07M175BKE VDRUS07M175BSE VDRUS07M230BKE VDRUS07M230BSE VDRUS07M250BKE VDRUS07M250BSE VDRUS07M275BKE VDRUS07M275BSE VDRUS07M300BKE VDRUS07M300BSE VDRUS07M320BKE VDRUS07M320BSE VDRUS07M385BKE VDRUS07M385BSE VDRUS07M420BKE VDRUS07M420BSE VDRUS07M460BKE VDRUS07M460BSE VDRUS10T130BKE VDRUS10T130BSE VDRUS10T140BKE VDRUS10T140BSE VDRUS10T150BKE VDRUS10T150BSE VDRUS10T175BKE VDRUS10T175BSE VDRUS10T230BKE VDRUS10T230BSE VDRUS10T250BKE VDRUS10T250BSE VDRUS10T275BKE VDRUS10T275BSE VDRUS10T300BKE VDRUS10T300BSE VDRUS10T320BKE VDRUS10T320BSE VDRUS10T385BKE VDRUS10T385BSE VDRUS10T420BKE VDRUS10T420BSE VDRUS10T460BKE VDRUS10T460BSE VDRUS10T510BKE VDRUS10T510BSE VDRUS10T550BKE VDRUS10T550BSE VDRUS10T625BKE VDRUS10T625BSE VDRUS14X130BKE VDRUS14X130BSE VDRUS14X140BKE VDRUS14X140BSE VDRUS14X150BKE VDRUS14X150BSE VDRUS14X175BKE VDRUS14X175BSE VDRUS14X230BKE VDRUS14X230BSE VDRUS14X250BKE VDRUS14X250BSE VDRUS14X275BKE VDRUS14X275BSE VDRUS14X300BKE VDRUS14X300BSE VDRUS14X320BKE VDRUS14X320BSE VDRUS14X385BKE VDRUS14X385BSE VDRUS14X420BKE VDRUS14X420BSE VDRUS14X460BKE VDRUS14X460BSE VDRUS14X510BKE VDRUS14X510BSE VDRUS14X550BKE VDRUS14X550BSE VDRUS14X625BKE VDRUS14X625BSE VDRUS20Z250BKE VDRUS20Z250BSE VDRUS20Z275BKE VDRUS20Z275BSE VDRUS20Z300BKE VDRUS20Z300BSE VDRUS20Z320BKE VDRUS20Z320BSE VDRUS20Z510BKE VDRUS20Z510BSE VDRUS20Z550BKE VDRUS20Z550BSE VDRUS20Z625BKE VDRUS20Z625BSE
Textversion des Dokuments

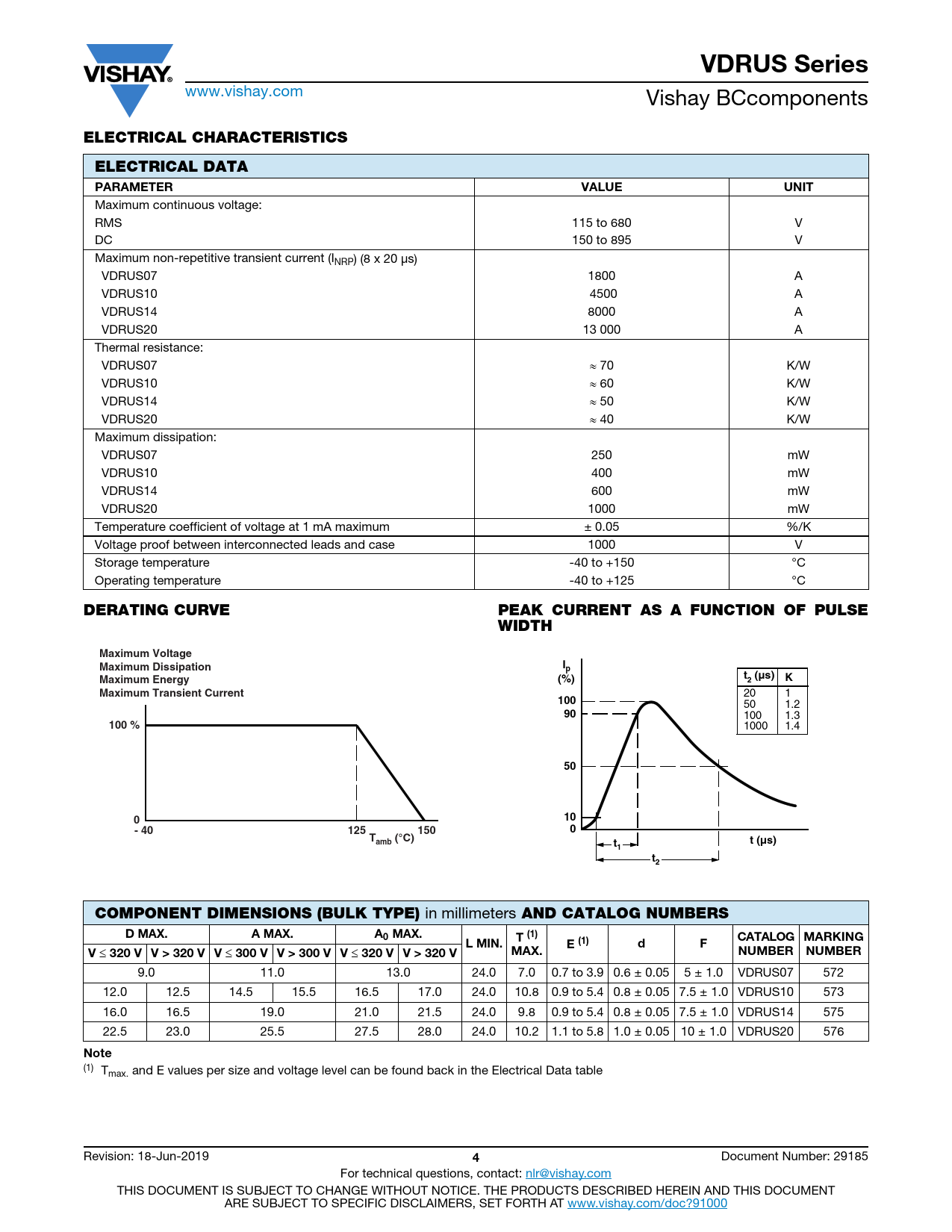

VDRUS Series
www.vishay.com Vishay BCcomponents
ELECTRICAL CHARACTERISTICS ELECTRICAL DATA PARAMETER VALUE UNIT
Maximum continuous voltage: RMS 115 to 680 V DC 150 to 895 V Maximum non-repetitive transient current (INRP) (8 x 20 μs) VDRUS07 1800 A VDRUS10 4500 A VDRUS14 8000 A VDRUS20 13 000 A Thermal resistance: VDRUS07 70 K/W VDRUS10 60 K/W VDRUS14 50 K/W VDRUS20 40 K/W Maximum dissipation: VDRUS07 250 mW VDRUS10 400 mW VDRUS14 600 mW VDRUS20 1000 mW Temperature coefficient of voltage at 1 mA maximum ± 0.05 %/K Voltage proof between interconnected leads and case 1000 V Storage temperature -40 to +150 °C Operating temperature -40 to +125 °C
DERATING CURVE PEAK CURRENT AS A FUNCTION OF PULSE WIDTH Maximum Voltage Maximum Dissipation Ip Maximum Energy (%) t (µs) 2 K Maximum Transient Current
20 1
100
50 1.2
90
100 1.3
100 %
1000 1.4
50 0 10 - 40 125 150 0 T (°C) amb t (µs) t1 t2 COMPONENT DIMENSIONS (BULK TYPE)
in millimeters
AND CATALOG NUMBERS D MAX. A MAX. A0 MAX. T (1) CATALOG MARKING L MIN. E (1) d F MAX. NUMBER NUMBER V
320 V V > 320 V V
300 V V > 300 V V
320 V V > 320 V
9.0 11.0 13.0 24.0 7.0 0.7 to 3.9 0.6 ± 0.05 5 ± 1.0 VDRUS07 572 12.0 12.5 14.5 15.5 16.5 17.0 24.0 10.8 0.9 to 5.4 0.8 ± 0.05 7.5 ± 1.0 VDRUS10 573 16.0 16.5 19.0 21.0 21.5 24.0 9.8 0.9 to 5.4 0.8 ± 0.05 7.5 ± 1.0 VDRUS14 575 22.5 23.0 25.5 27.5 28.0 24.0 10.2 1.1 to 5.8 1.0 ± 0.05 10 ± 1.0 VDRUS20 576
Note
(1) Tmax. and E values per size and voltage level can be found back in the Electrical Data table Revision: 18-Jun-2019
4
Document Number: 29185 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
