AD7924-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments

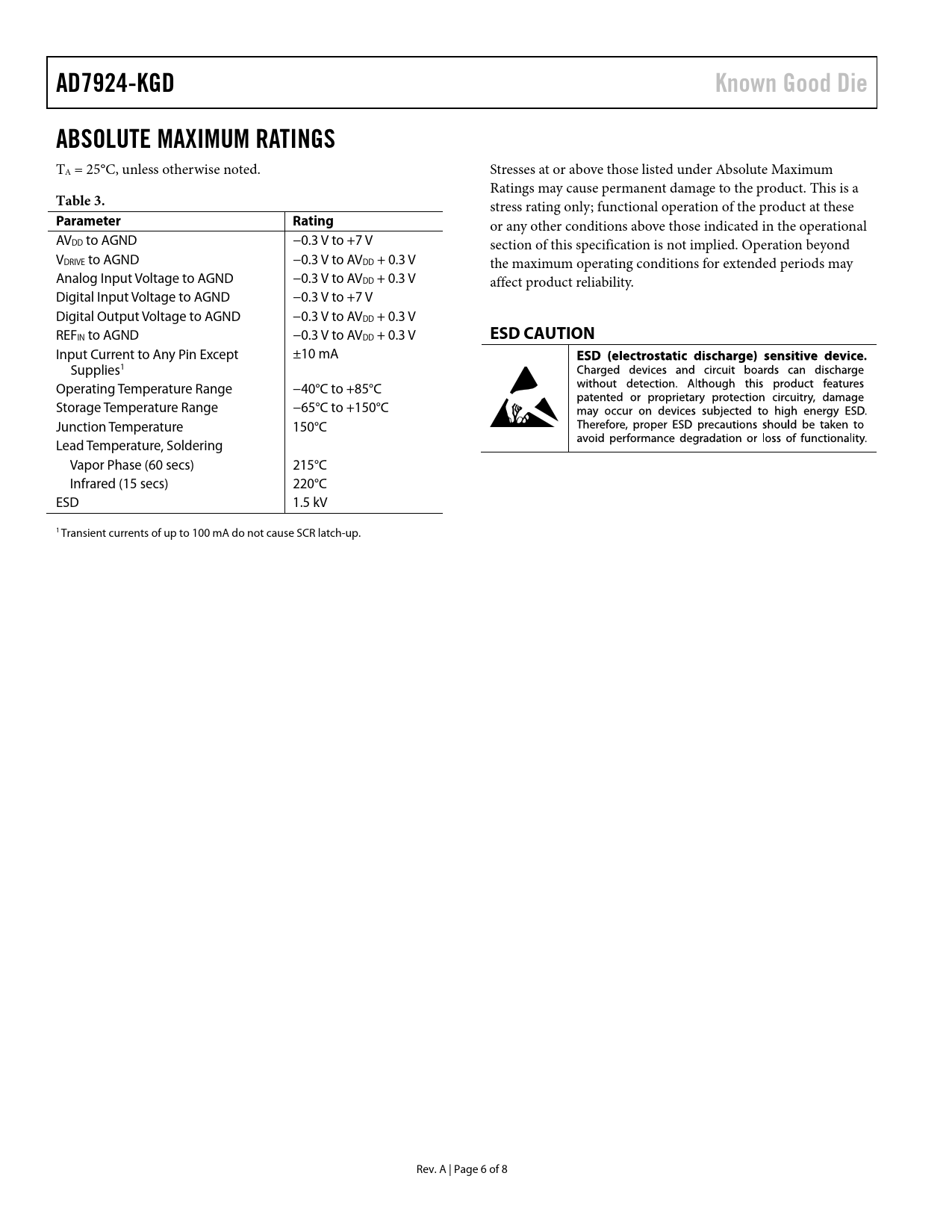

AD7924-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Table 3.
stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational AVDD to AGND −0.3 V to +7 V section of this specification is not implied. Operation beyond VDRIVE to AGND −0.3 V to AVDD + 0.3 V the maximum operating conditions for extended periods may Analog Input Voltage to AGND −0.3 V to AVDD + 0.3 V affect product reliability. Digital Input Voltage to AGND −0.3 V to +7 V Digital Output Voltage to AGND −0.3 V to AVDD + 0.3 V REFIN to AGND −0.3 V to AVDD + 0.3 V
ESD CAUTION
Input Current to Any Pin Except ±10 mA Supplies1 Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C Lead Temperature, Soldering Vapor Phase (60 secs) 215°C Infrared (15 secs) 220°C ESD 1.5 kV 1 Transient currents of up to 100 mA do not cause SCR latch-up. Rev. A | Page 6 of 8 Document Outline FEATURES GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
