AD7327-EP. Enhanced Product. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments

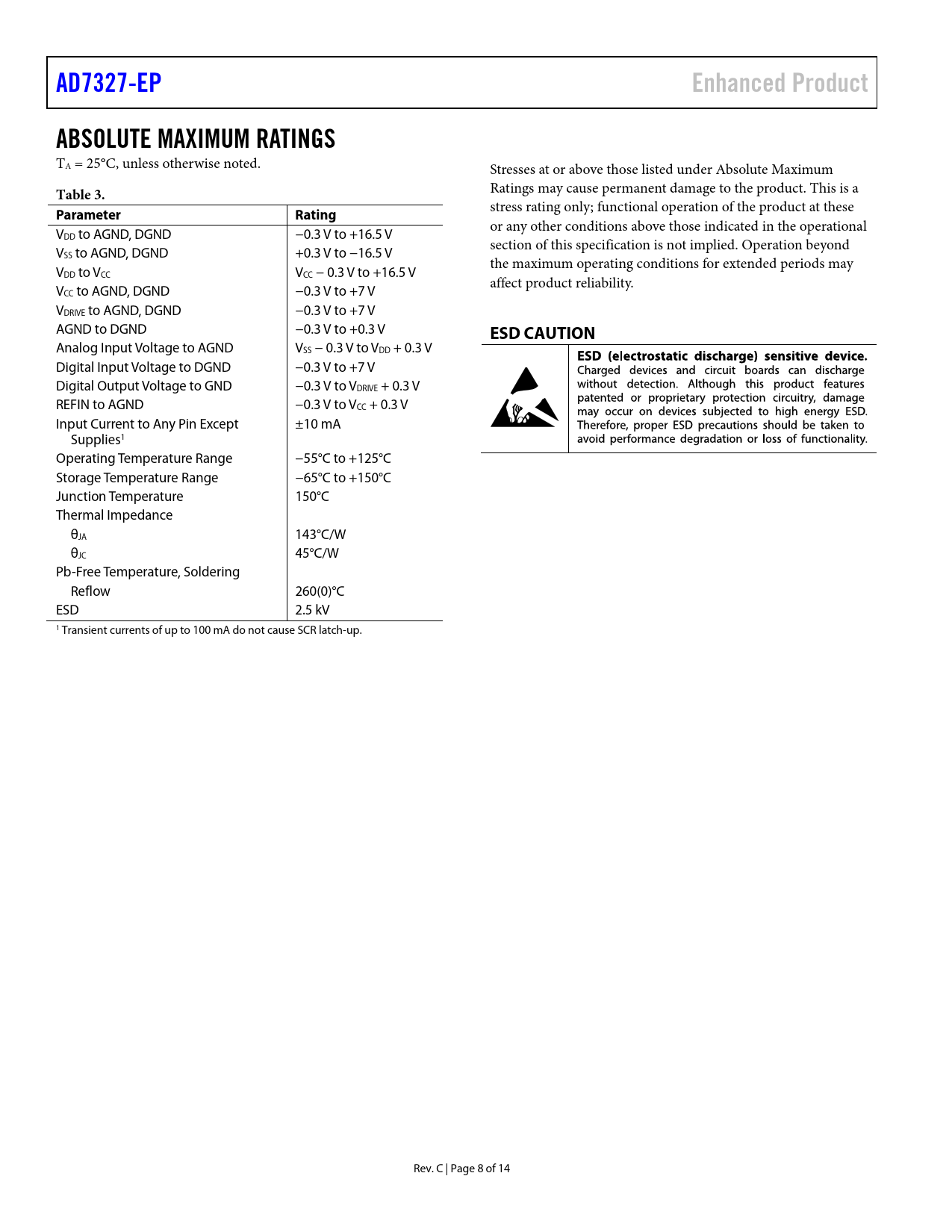

AD7327-EP Enhanced Product ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 3.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational VDD to AGND, DGND −0.3 V to +16.5 V section of this specification is not implied. Operation beyond VSS to AGND, DGND +0.3 V to −16.5 V the maximum operating conditions for extended periods may VDD to VCC VCC − 0.3 V to +16.5 V affect product reliability. VCC to AGND, DGND −0.3 V to +7 V VDRIVE to AGND, DGND −0.3 V to +7 V AGND to DGND −0.3 V to +0.3 V
ESD CAUTION
Analog Input Voltage to AGND VSS − 0.3 V to VDD + 0.3 V Digital Input Voltage to DGND −0.3 V to +7 V Digital Output Voltage to GND −0.3 V to VDRIVE + 0.3 V REFIN to AGND −0.3 V to VCC + 0.3 V Input Current to Any Pin Except ±10 mA Supplies1 Operating Temperature Range −55°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C Thermal Impedance θJA 143°C/W θJC 45°C/W Pb-Free Temperature, Soldering Reflow 260(0)°C ESD 2.5 kV 1 Transient currents of up to 100 mA do not cause SCR latch-up. Rev. C | Page 8 of 14 Document Outline FEATURES ENHANCED PRODUCT FEATURES GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
