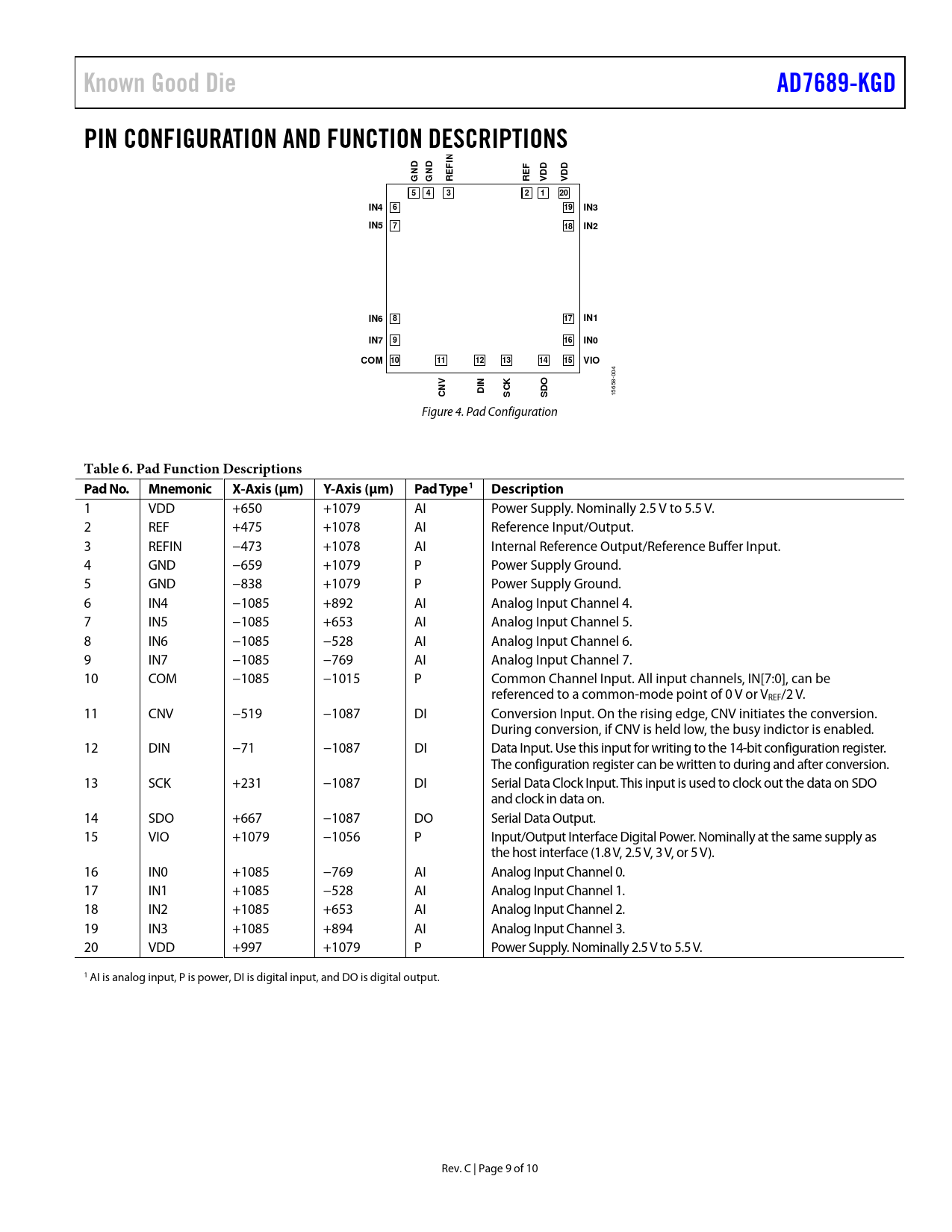

Known Good Die AD7689-KGD PIN CONFIGURATION AND FUNCTION DESCRIPTIONS FIN F ND ND E DD DD G G R RE V V 5 4 3 2 1 20 IN4 6 19 IN3 IN5 7 18 IN2 IN6 8 17 IN1 IN7 9 16 IN0 COM 10 11 12 13 14 15 VIO
004
N CK DI DO CNV S S
15658- Figure 4. Pad Configuration
Table 6. Pad Function Descriptions Pad No. Mnemonic X-Axis (µm) Y-Axis (µm) Pad Type1 Description
1 VDD +650 +1079 AI Power Supply. Nominally 2.5 V to 5.5 V. 2 REF +475 +1078 AI Reference Input/Output. 3 REFIN −473 +1078 AI Internal Reference Output/Reference Buffer Input. 4 GND −659 +1079 P Power Supply Ground. 5 GND −838 +1079 P Power Supply Ground. 6 IN4 −1085 +892 AI Analog Input Channel 4. 7 IN5 −1085 +653 AI Analog Input Channel 5. 8 IN6 −1085 −528 AI Analog Input Channel 6. 9 IN7 −1085 −769 AI Analog Input Channel 7. 10 COM −1085 −1015 P Common Channel Input. All input channels, IN[7:0], can be referenced to a common-mode point of 0 V or VREF/2 V. 11 CNV −519 −1087 DI Conversion Input. On the rising edge, CNV initiates the conversion. During conversion, if CNV is held low, the busy indictor is enabled. 12 DIN −71 −1087 DI Data Input. Use this input for writing to the 14-bit configuration register. The configuration register can be written to during and after conversion. 13 SCK +231 −1087 DI Serial Data Clock Input. This input is used to clock out the data on SDO and clock in data on. 14 SDO +667 −1087 DO Serial Data Output. 15 VIO +1079 −1056 P Input/Output Interface Digital Power. Nominal y at the same supply as the host interface (1.8 V, 2.5 V, 3 V, or 5 V). 16 IN0 +1085 −769 AI Analog Input Channel 0. 17 IN1 +1085 −528 AI Analog Input Channel 1. 18 IN2 +1085 +653 AI Analog Input Channel 2. 19 IN3 +1085 +894 AI Analog Input Channel 3. 20 VDD +997 +1079 P Power Supply. Nominal y 2.5 V to 5.5 V. 1 AI is analog input, P is power, DI is digital input, and DO is digital output. Rev. C | Page 9 of 10 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
