Datasheet AD7689-KGD (Analog Devices) - 8
| Hersteller | Analog Devices |
| Beschreibung | 16-Bit, 8-Channel,250 kSPS PulSAR ADC |
| Seiten / Seite | 10 / 8 — AD7689-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS Table 5. Parameter. … |
| Revision | C |
| Dateiformat / Größe | PDF / 224 Kb |
| Dokumentensprache | Englisch |

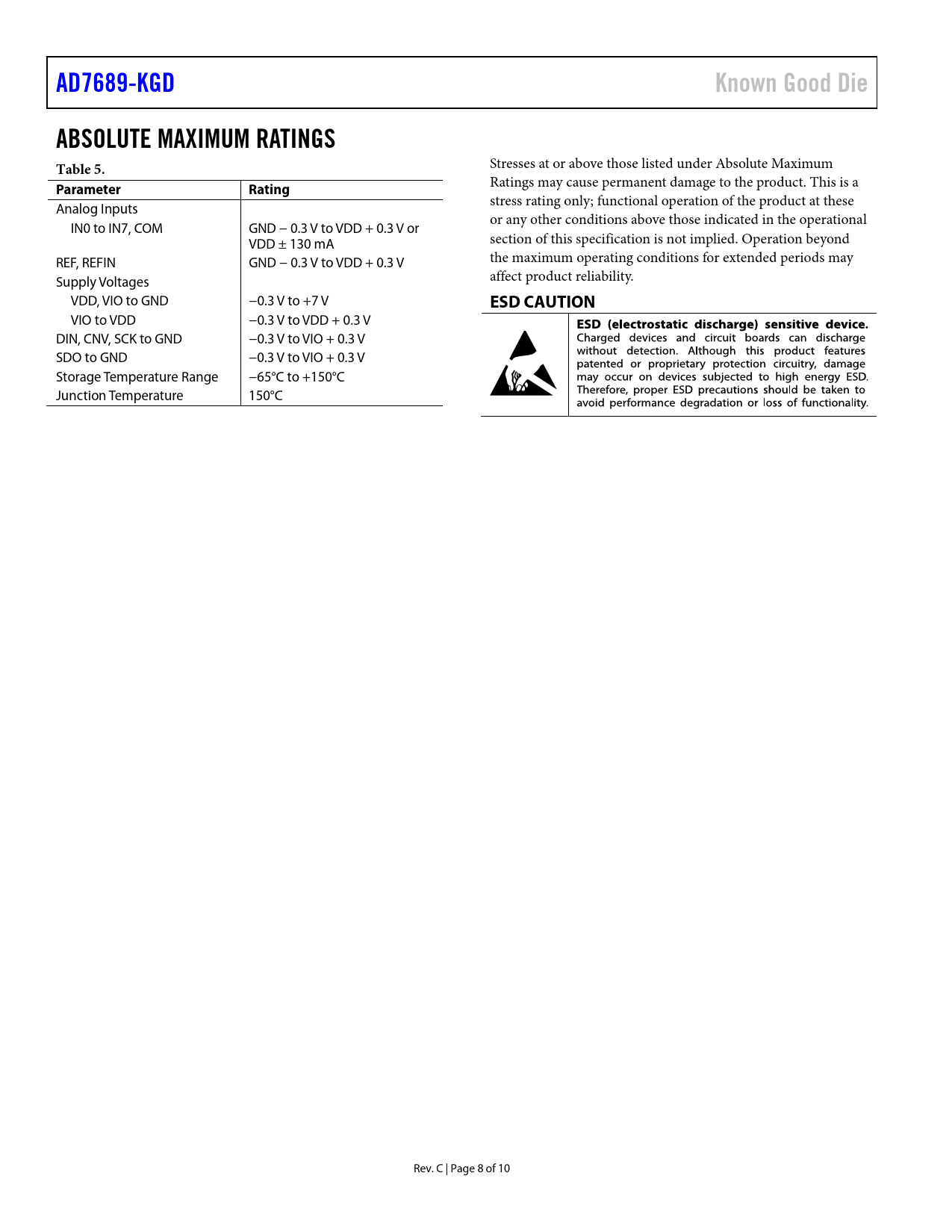

AD7689-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS Table 5. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AD7689-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS Table 5.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Analog Inputs or any other conditions above those indicated in the operational IN0 to IN7, COM GND − 0.3 V to VDD + 0.3 V or VDD ± 130 mA section of this specification is not implied. Operation beyond REF, REFIN GND − 0.3 V to VDD + 0.3 V the maximum operating conditions for extended periods may Supply Voltages affect product reliability. VDD, VIO to GND −0.3 V to +7 V
ESD CAUTION
VIO to VDD −0.3 V to VDD + 0.3 V DIN, CNV, SCK to GND −0.3 V to VIO + 0.3 V SDO to GND −0.3 V to VIO + 0.3 V Storage Temperature Range −65°C to +150°C Junction Temperature 150°C Rev. C | Page 8 of 10 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
