Datasheet TLP3406SRH (Toshiba) - 9
Hersteller | Toshiba |
Beschreibung | Photorelay (MOSFET output, 1-form-a) |
Seiten / Seite | 14 / 9 — TLP3406SRH. 16. Embossed-Tape. Packing. (TP). Specification. for. … |
Dateiformat / Größe | PDF / 381 Kb |
Dokumentensprache | Englisch |
TLP3406SRH. 16. Embossed-Tape. Packing. (TP). Specification. for. Mini-Flat. Photorelays. 16.1. Applicable. Package. Package. Name. Product. Type
Modelllinie für dieses Datenblatt
Textversion des Dokuments

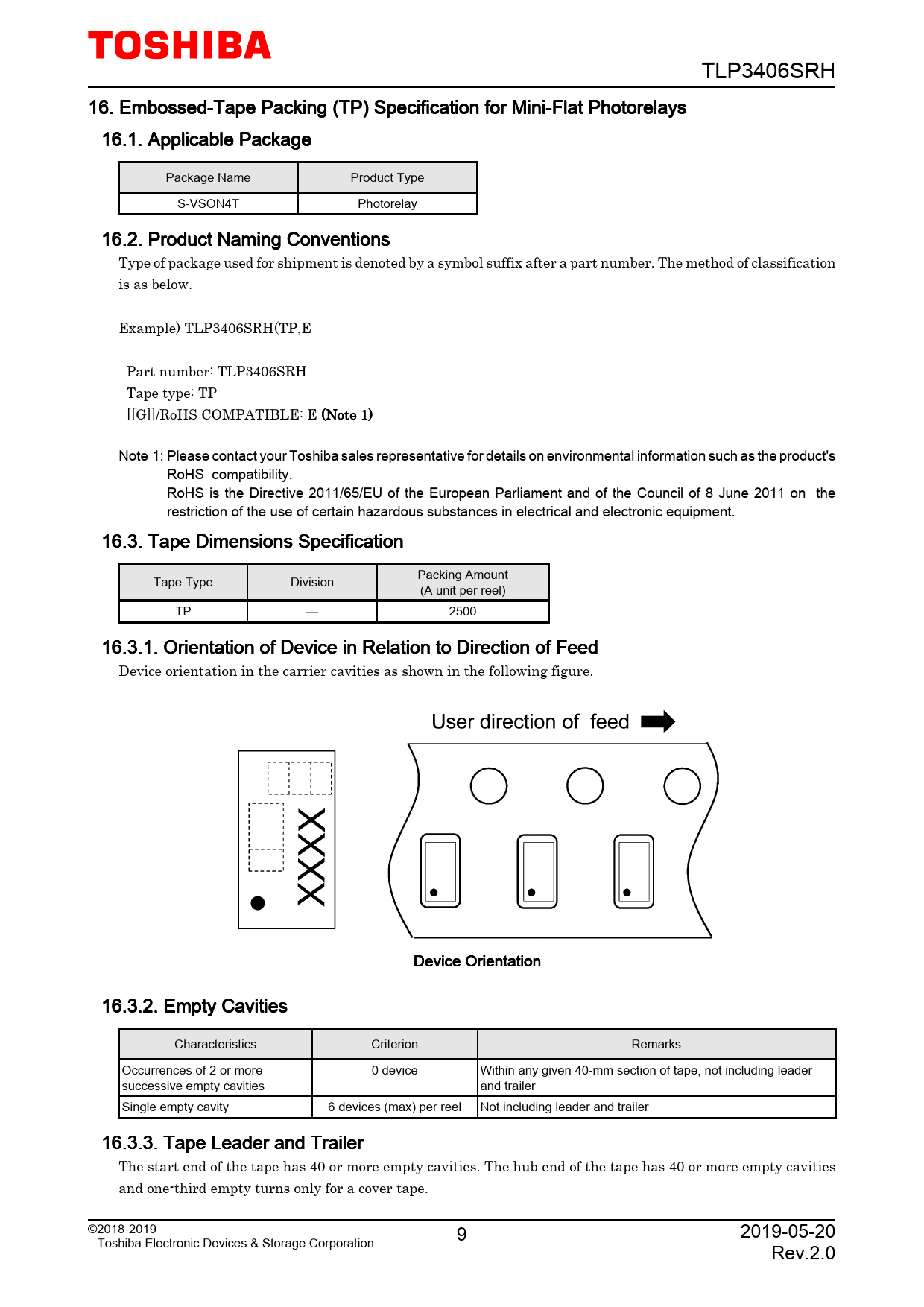

TLP3406SRH 16. Embossed-Tape Packing (TP) Specification for Mini-Flat Photorelays 16.1. Applicable Package Package Name Product Type S-VSON4T Photorelay 16.2. Product Naming Conventions Type of package used for shipment is denoted by a symbol suffix after a part number. The method of classification is as below. Example) TLP3406SRH(TP,E Part number: TLP3406SRH Tape type: TP [[G]]/RoHS COMPATIBLE: E (Note 1) Note 1: Please contact your Toshiba sales representative for details on environmental information such as the product's RoHS compatibility. RoHS is the Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. 16.3. Tape Dimensions Specification Packing Amount Tape Type Division (A unit per reel) TP 2500 16.3.1. Orientation of Device in Relation to Direction of Feed Device orientation in the carrier cavities as shown in the following figure. Device Orientation 16.3.2. Empty Cavities Characteristics Criterion Remarks Occurrences of 2 or more 0 device Within any given 40-mm section of tape, not including leader successive empty cavities and trailer Single empty cavity 6 devices (max) per reel Not including leader and trailer 16.3.3. Tape Leader and Trailer The start end of the tape has 40 or more empty cavities. The hub end of the tape has 40 or more empty cavities and one-third empty turns only for a cover tape. ©2018-2019 9 2019-05-20 Toshiba Electronic Devices & Storage Corporation Rev.2.0
